Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

ASSEMBLY AND INSTALLATION

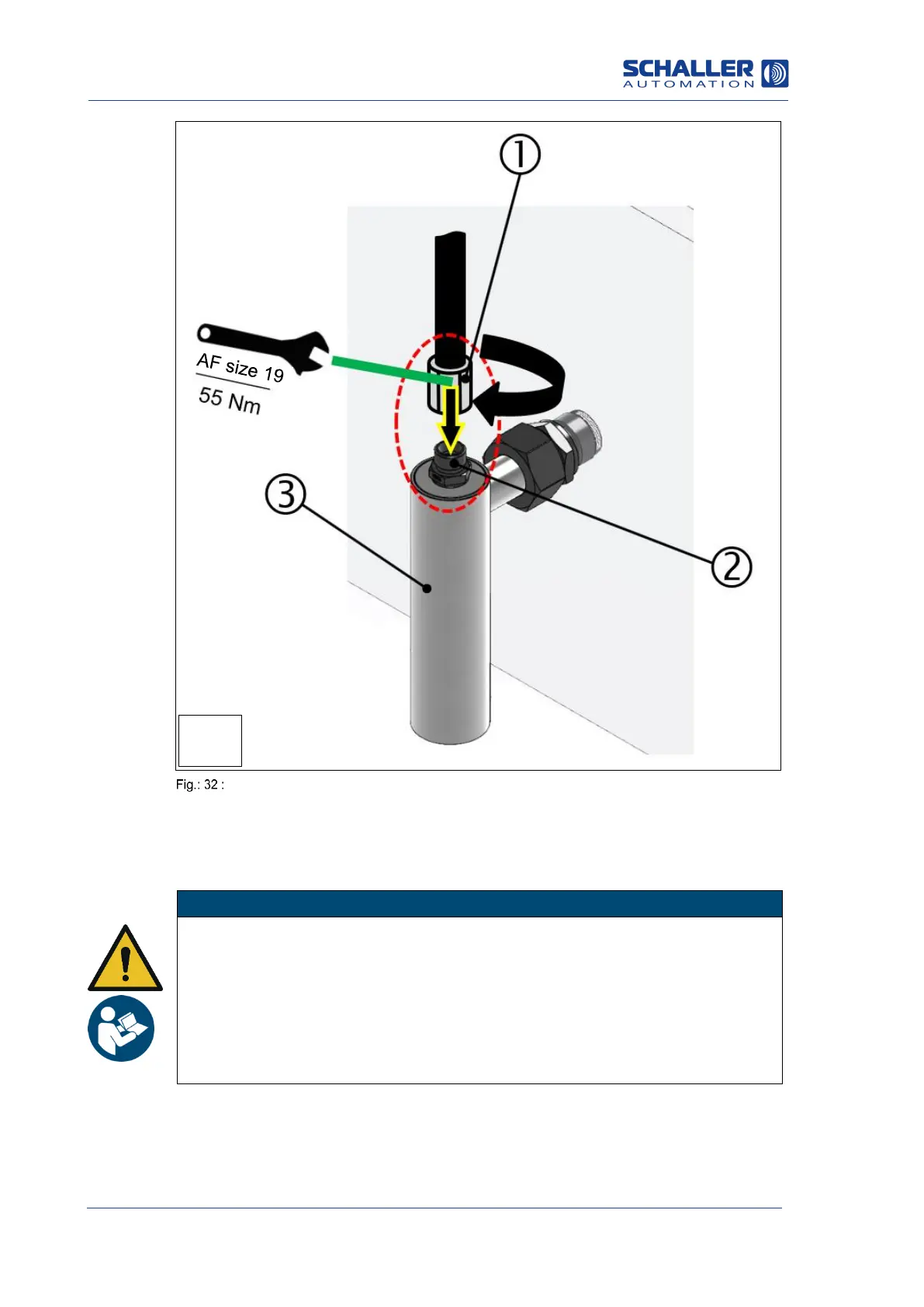

Installing pipe siphon assembly with commissioning (installation steps 1-5)

1: Intake line with union L10

3: Pipe siphon

2: Straight screw-in socket L10

NOTE

Removing the filling pump with filling pipe from the pipe siphon and installing

the intake line

 After filling the pipe siphon (3), remove the filling pump.

 Then remove leaking lubrication oil with a cleaning cloth.

 Insert the intake line flush into the screw-in socket (2) as far as it will go.

 Start by pre-assembling the L10 union hand-tight and aligning the intake hose.

 Tighten the union L10 (1) on the straight screw-in socket (2).
