Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
PRODUCT OVERVIEW
4.1.2 Component overview with siphon block concept (alternative)
The drainage concept with siphon block is the alternative to the standard drainage
concept and is always used when the standard drainage concept with the pipe siphon
(Fig. 10, 4) cannot be used for reasons associated with the application.

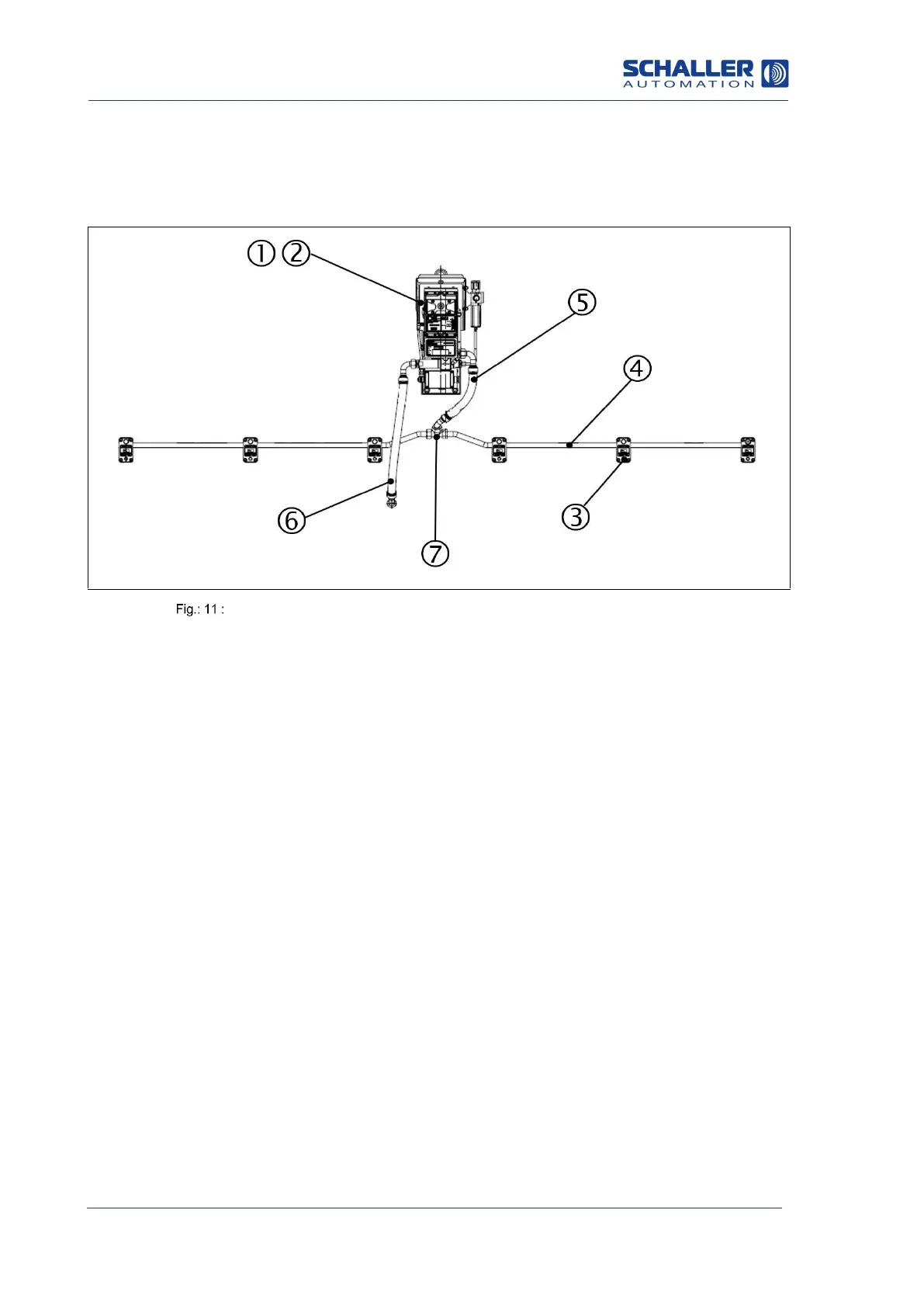

Component overview, drainage concept with siphon block, VISATRON
®
VN2020
1: VN2020 (Non Ex/Ex) oil mist detector
3: Siphon block
5: Intake pipe for connection box
7: Pipe connector
2: Bracket (customer-specific)
4: Header pipe
6: Exhaust air pipe (recirculation line)
