Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

ASSEMBLY AND INSTALLATION

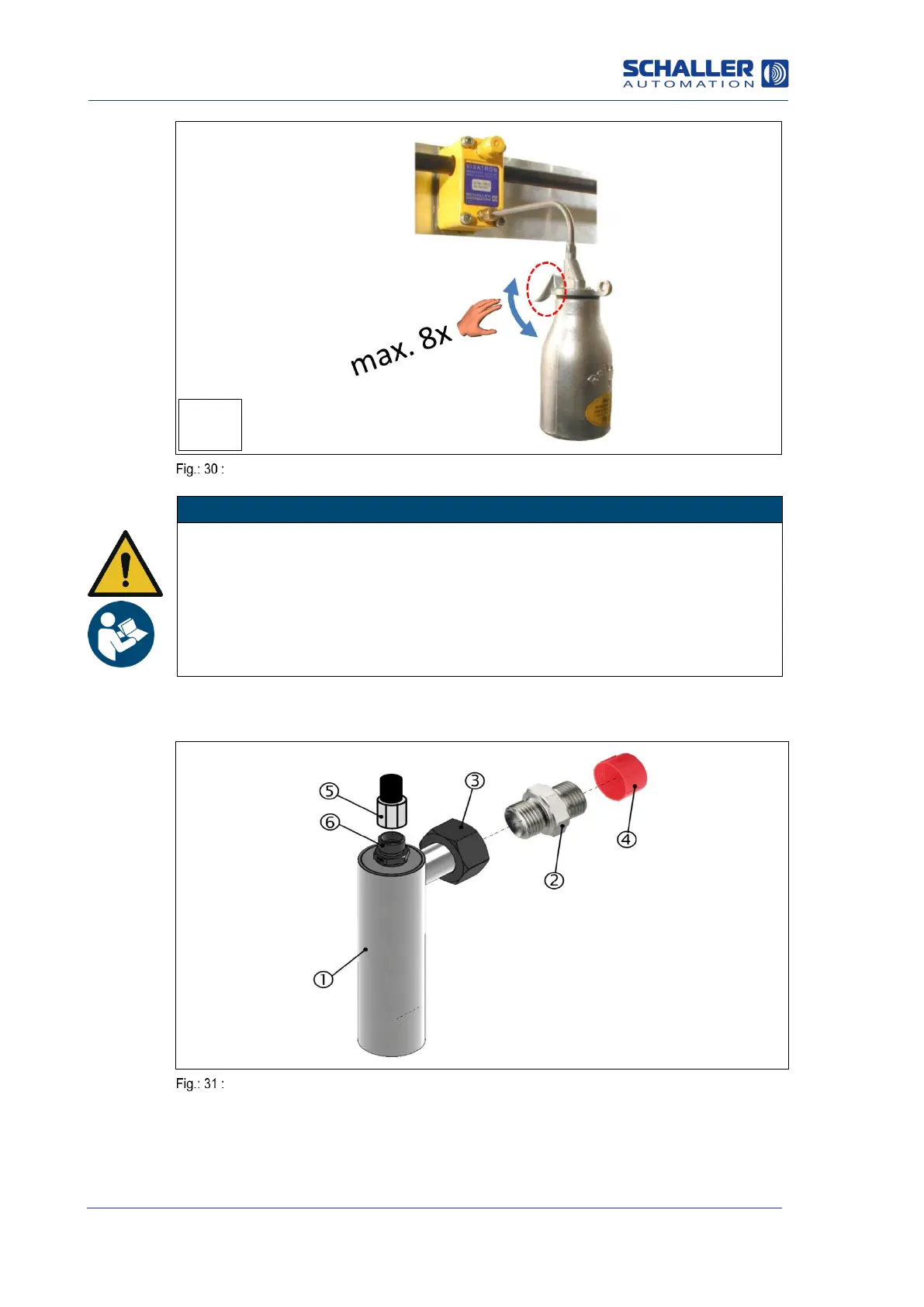

Installing siphon block assembly with commissioning (installation steps 1-11)

NOTE

Removing the filling pump with filling pipe from the siphon block

 After filling the siphon block, remove the filling pump and screw in the screw

plug (step 9, 2) again without delay. (Open spanner, size 10)

 When the filling pump is removed, a little oil may escape from the oil return

hole. However, this does not affect the function of the siphon. Then remove

leaking lubrication oil with a cleaning cloth.

6.3.6 Installing the pipe siphon assembly

Pipe siphon assembly

1: Pipe siphon

3: Union nut

5: Intake line with union L10

2: Straight screw-in socket L22

4: Protective cap

6: Straight screw-in socket L10
