Operating manual VISATRON® Oil Mist Detector VN2020 / VN2020 EX
Part number 183001 Version 3.0
ASSEMBLY AND INSTALLATION
6.3.9 Installing Remote Indicator II for remote monitoring (optional)
The VISATRON
®
VN2020 / VN2020 EX can be connected to the Remote Indicator II for
remote monitoring to monitor the oil mist concentration and the system status from a
safe location according to IACS UR M10.
Installing the Remote Indicator II
The Remote Indicator II is installed in the machine control room.
The installation space required for installation is based on the latest version of
the DIN IEC 61554 standard.

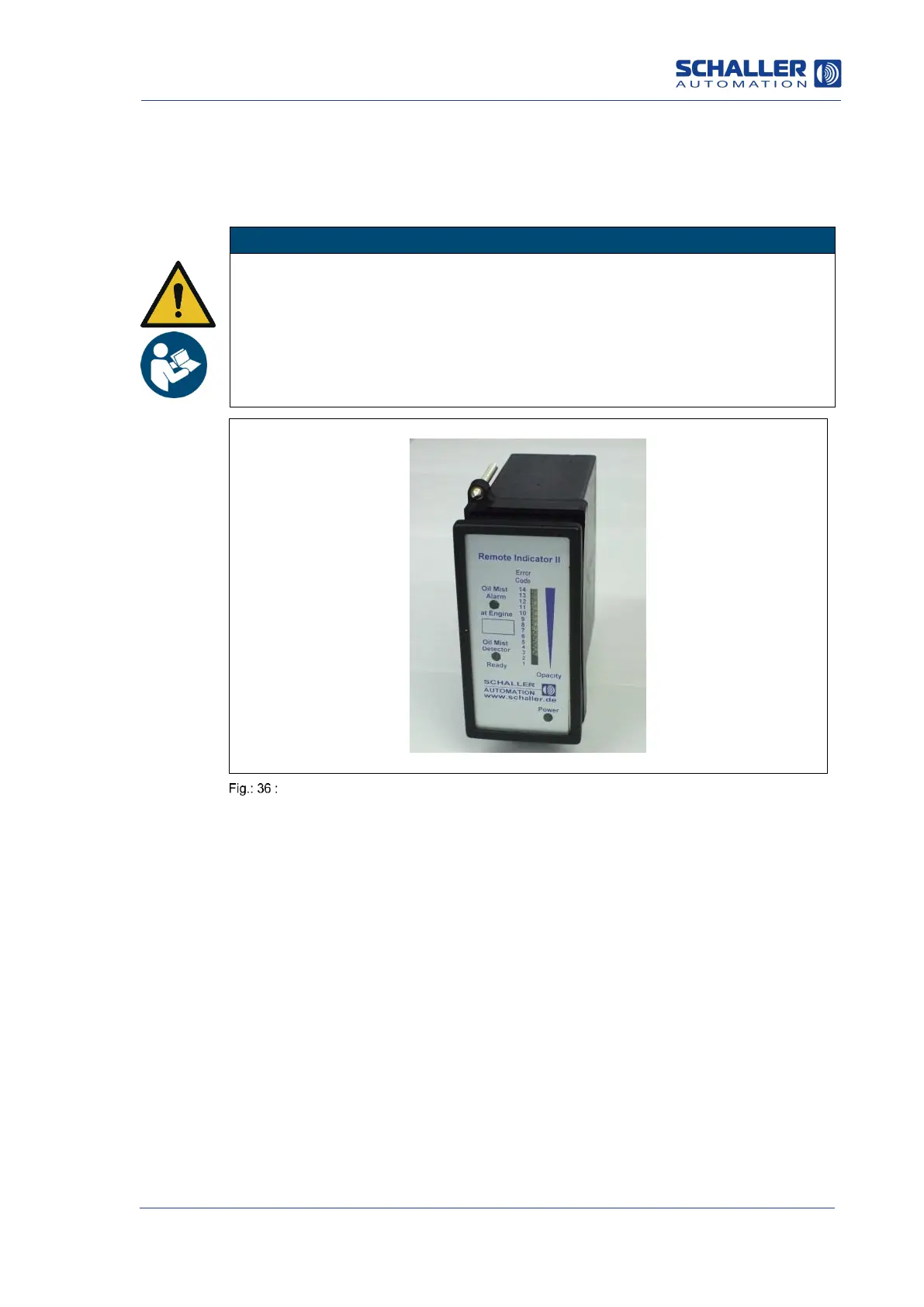

Remote Indicator II (optional)
The user provides specific details about the installation location and attachment in each
case. The requirements of IACS UR M10.11 must always be observed in this case!
Dimensions for the installation space: (L x W x 2L) = 92+0.8 mm x 45+0.6 mm x
184+0.8 mm
