Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

PRODUCT OVERVIEW

4.2 Component overview for the VISATRON

VN2020 / VN2020 EX oil mist

detector

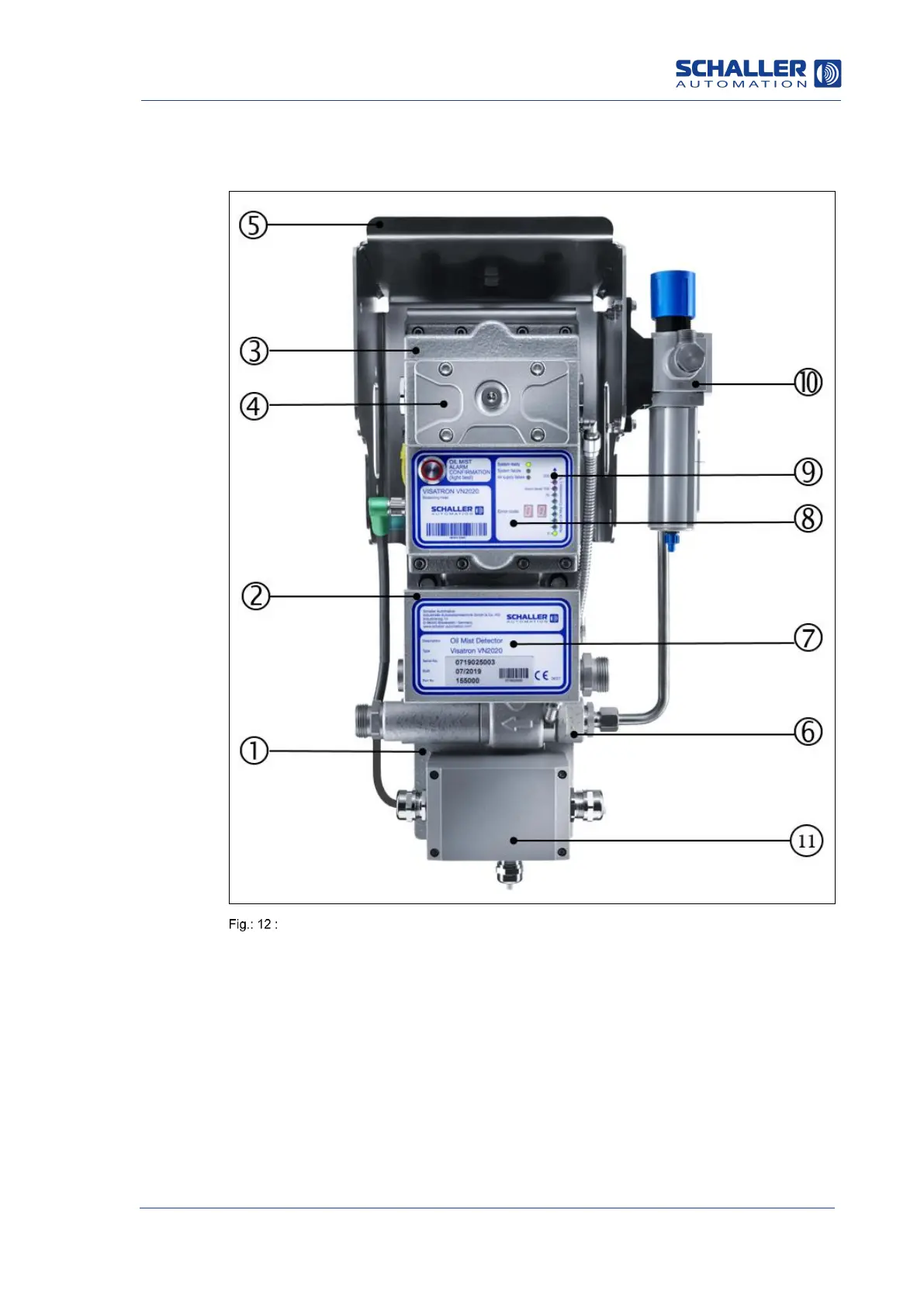

Component overview for the VISATRON

VN2020 oil mist detector

1: Base plate

3: Measuring head

5: Protective cover

7: Name plate of the oil mist detector

9: Display with error code

11: Terminal box

2: Connection box

4: Inspection cover

6: Venturi air jet pump

8: Measuring head name plate

10: Filter control valve
