Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

PRODUCT OVERVIEW

The hose lines are available with certificates from classification societies and authorities.

The certificates can be downloaded from Schaller Automation's homepage

(www.schallerautomation.com).

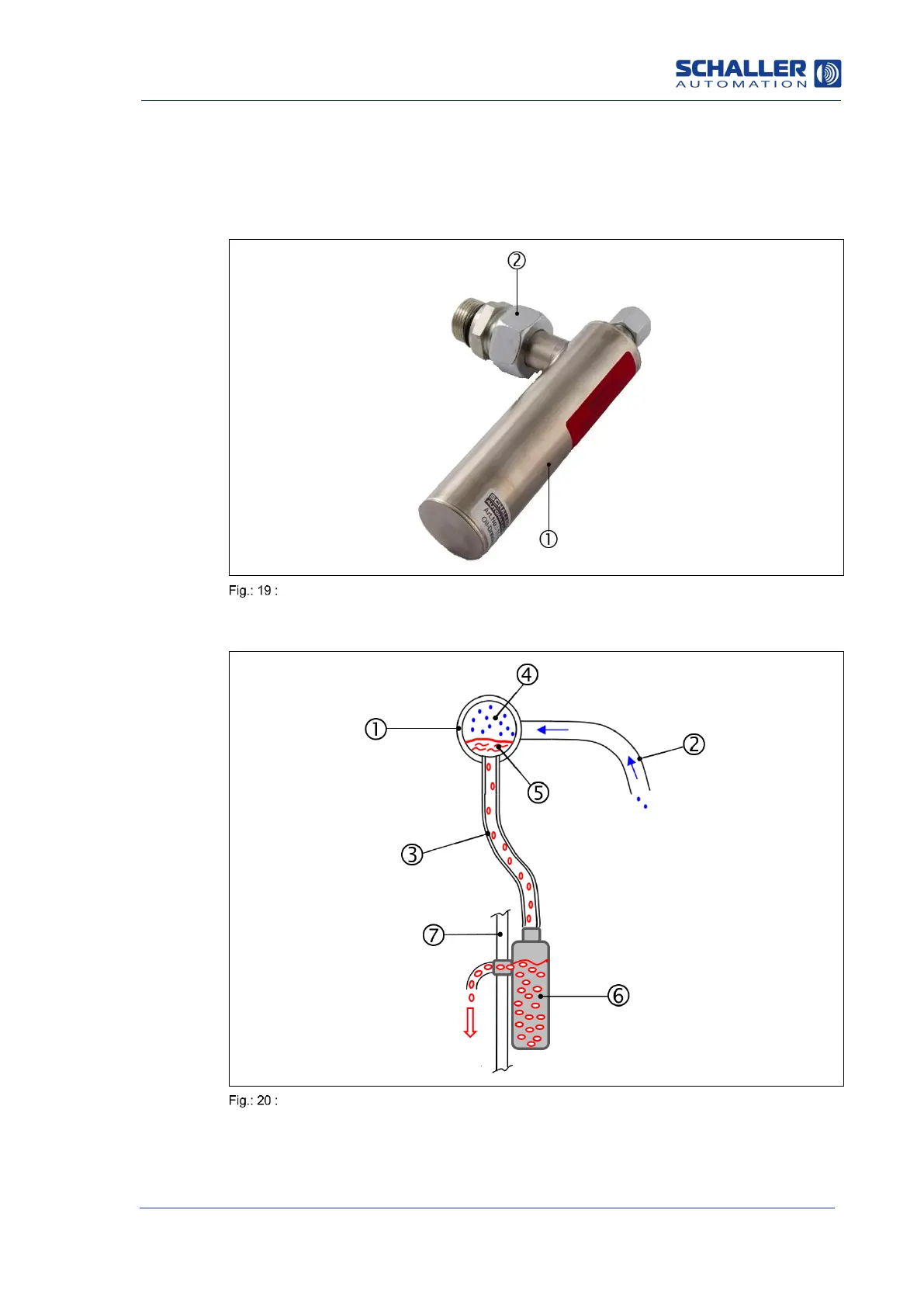

4.3.8 Pipe siphon

Pipe siphon, VN2020

1: Pipe siphon

2: Screw fitting

Functional principle of oil drainage via pipe siphon, VN2020

1: Header pipe

3: Intake pipe for the pipe siphon

5: Precipitated oil (flows into the pipe siphon)

7: Engine wall

2: Aspirated crankcase atmosphere

4: Crankcase atmosphere (header pipe)

6: Pipe siphon

Bilge
