Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

ASSEMBLY AND INSTALLATION

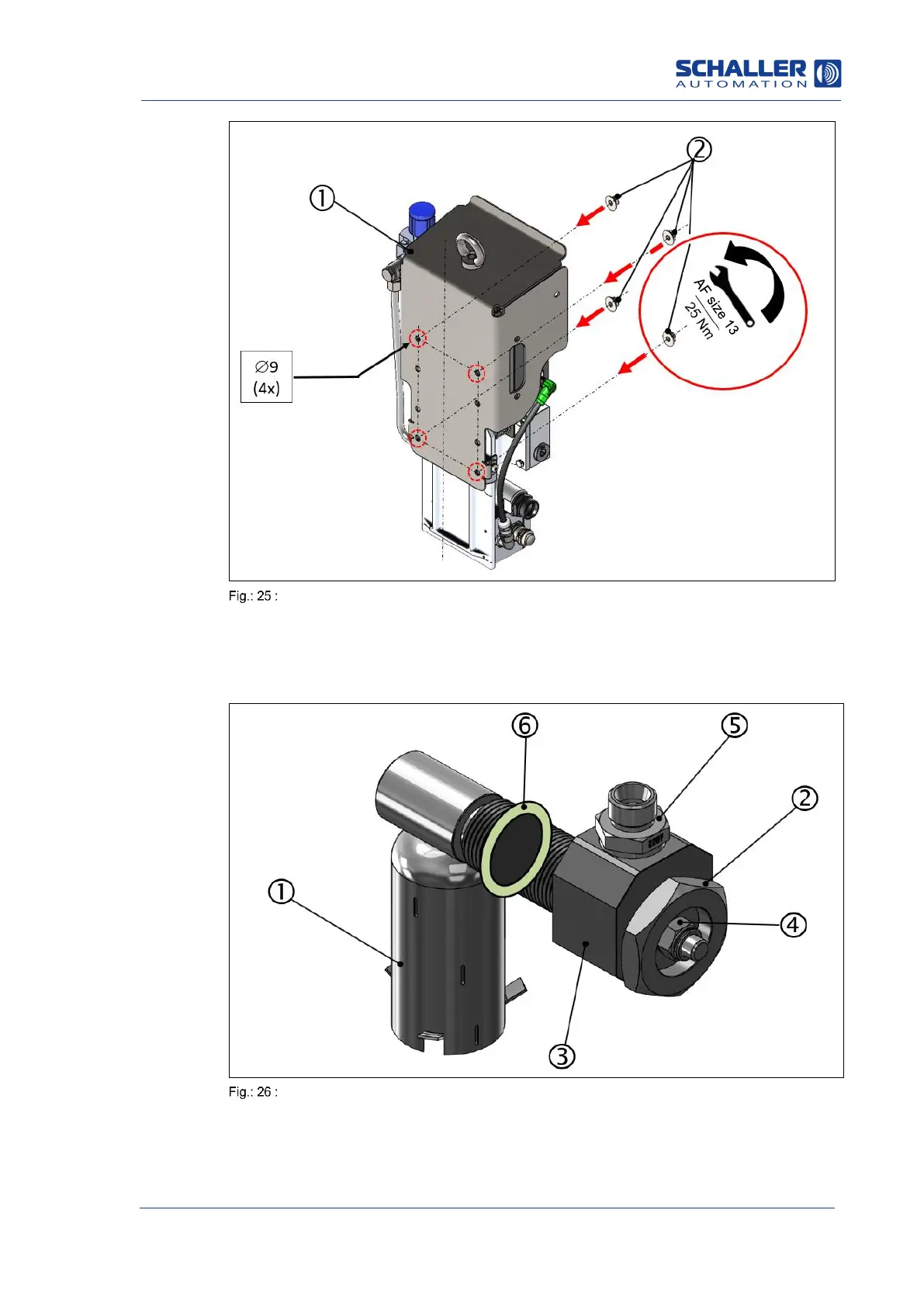

Installing VN2020 without bracket and with protective cover (rear view)

1: VISATRON

VN2020

2: 4 pcs. ROMOB M8 St nuts (included in delivery)

6.3.4 Installing engine wall connection and intake funnel

Engine wall connection (EWC)

1: Intake funnel

3: Engine wall connection (EWC) housing

5: Throttle fitting

2: Hollow union bolt G3/4"

4: Lock nut M8

6: Seal M27, oil-resistant
