Operating manual VISATRON® Oil Mist Detector VN2020 / VN2020 EX
Part number 183001 Version 3.0

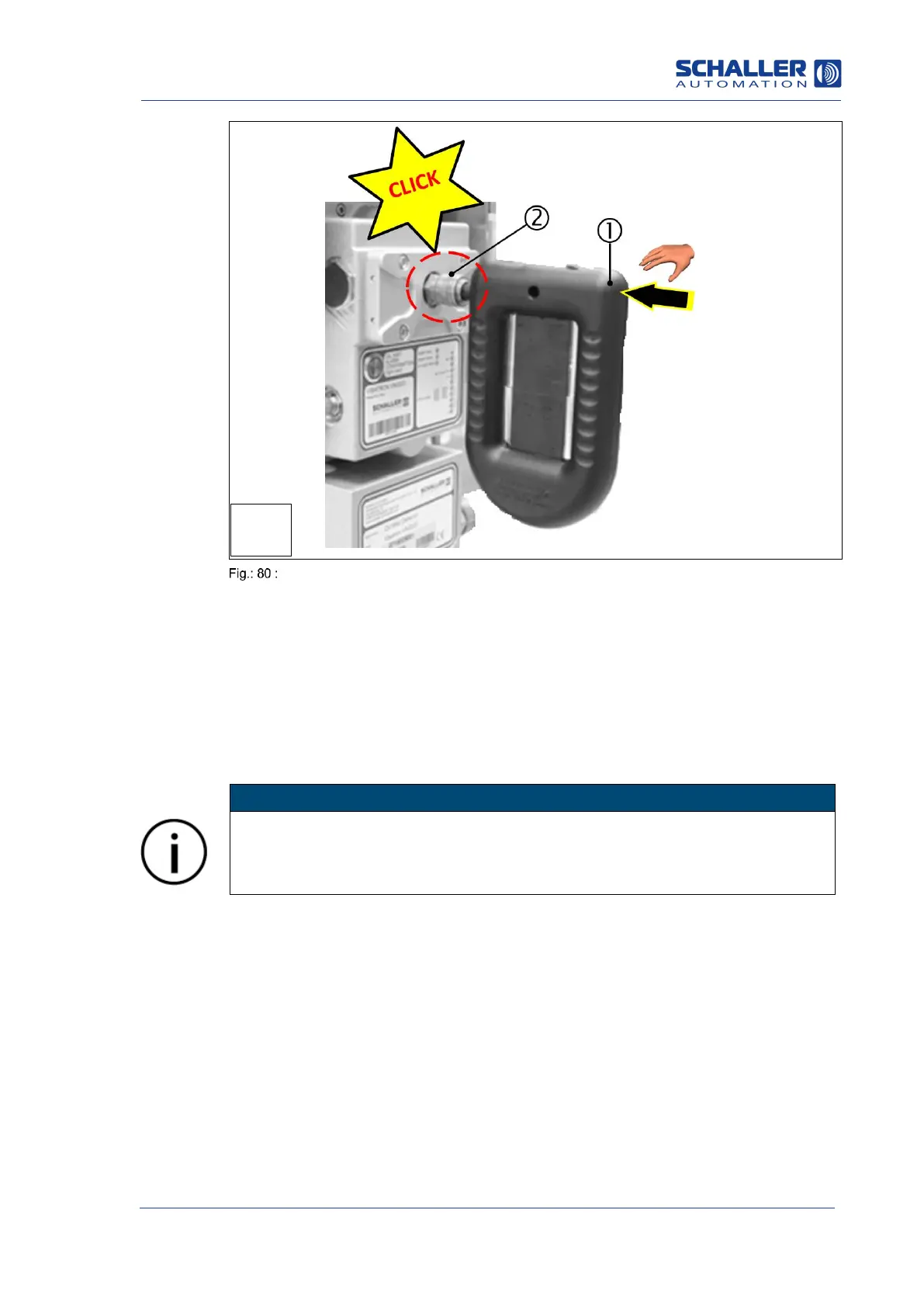

Replacing the VN2020 measuring head (steps 1-9)
The measuring head on the VISATRON
®
VN2020 has been
successfully replaced and the device is ready for operation!
9.3.2 Replacing the fuse on the VN2020 / VN2020 EX measuring head
To replace the fuse on the measuring head, start by carrying out steps 1-4 as described
in Section 9.3.1.
Section 9.3.1 Replacing the VN2020 / VN2020 EX measuring head
Maintenance work on the oil mist detector
Comply with the safety instructions for this in Section 9.3.1
Section 9.3.1.
Replacing the VN2020 / VN2020 EX measuring head
In the event of a defect, the fuse on the measuring head has to be replaced. The fuse is
a spare part and can be ordered separately from Schaller Automation as follows:
VN2020 measuring head: Part number 290044 / VN2020 EX: Part number 290045
Fuse: 436513
• Fuse 5x20 medium time-lag 2A
Once step 4 has been successfully completed, please proceed as follows:
