Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX
Part number 183001  Version 3.0
ASSEMBLY AND INSTALLATION
6.4.2.1 Configuration of the wire break resistors on the terminal box for VN2020
As shown in the figure below, the standard configuration of the wire break resistors as
delivered is 33 k. The wire break resistors can be adapted to customer-specific
requirements or swapped out. A set of suitable resistors is included in the delivery.
NOTE
Swapping out wire break resistors
 The wire break resistors are only plugged in and permanently secured by the
springs inside. No soldering is necessary for the resistors!

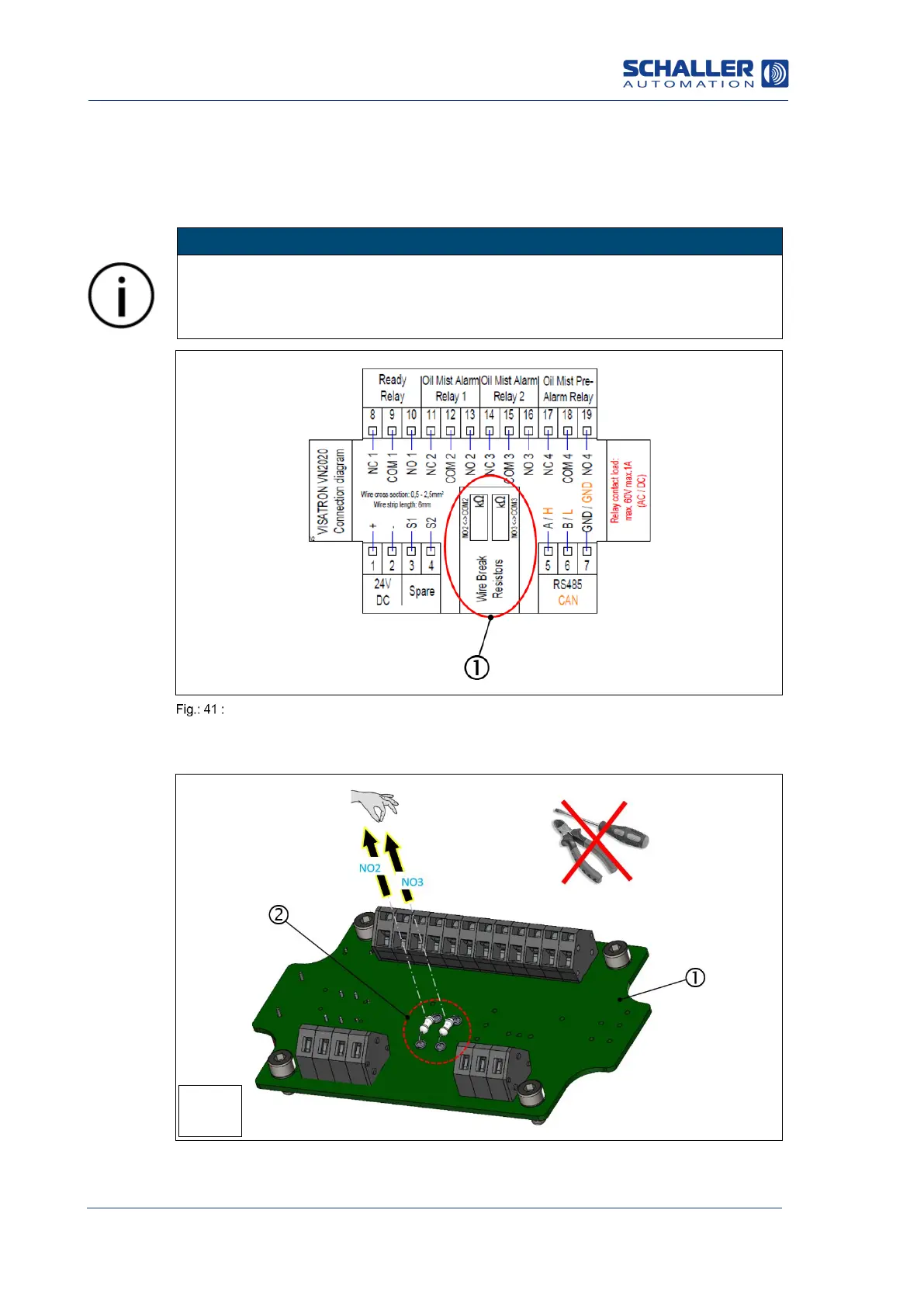

Terminal box for VN2020: Configuration of the wire break resistors
1: Position of wire break resistors NO2
and NO3
1: Connection board, VN2020 terminal box
2: Wire break resistors, VN2020 terminal box
1
