Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

ASSEMBLY AND INSTALLATION

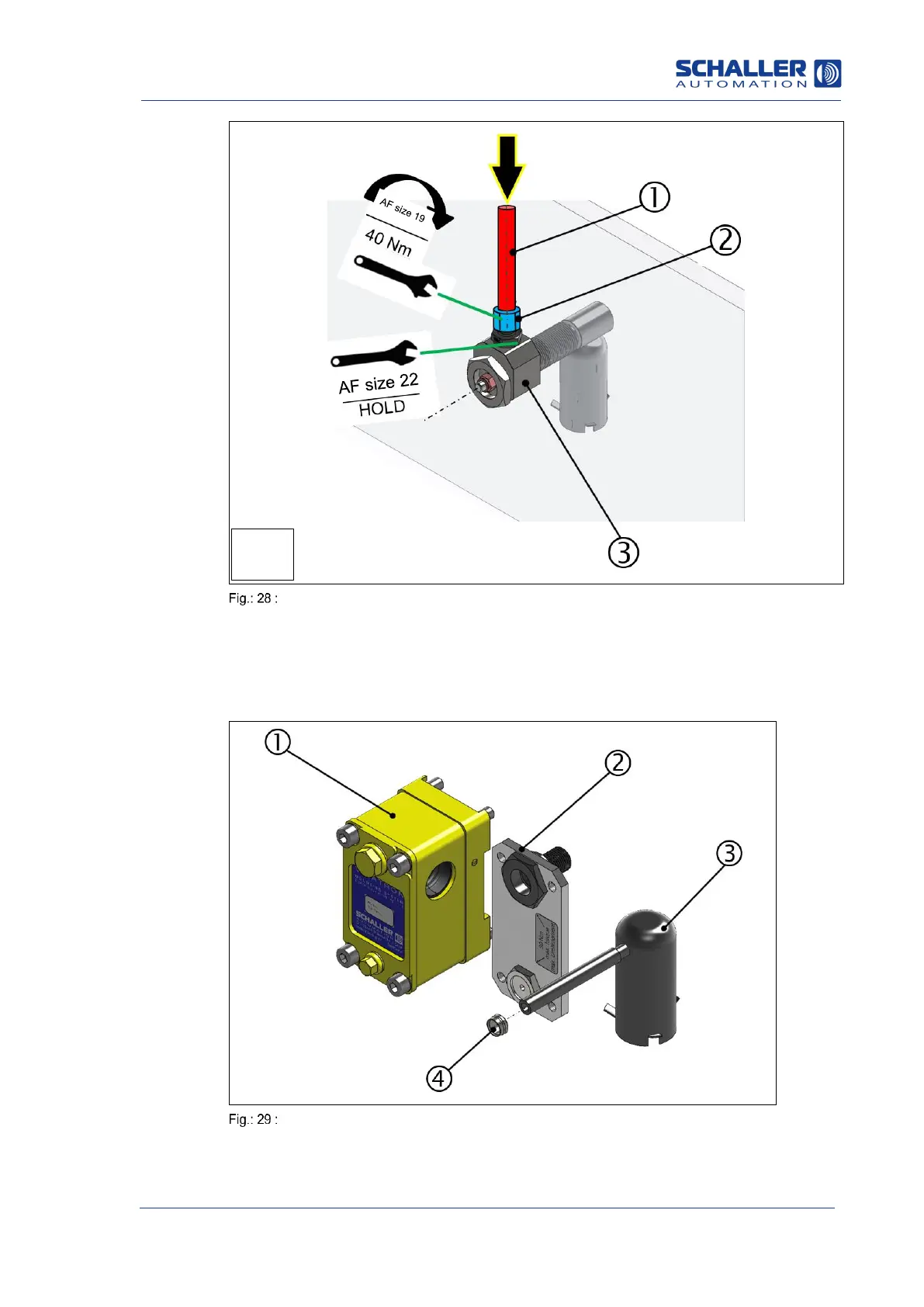

Installing engine wall connection for VN2020 (installation steps 1-9)

1: Intake hose/intake pipe

3: Engine wall connection

2: Cutting ring fitting (2-part)

6.3.5 Installing the siphon block assembly

Siphon block assembly

1: Complete siphon block

(without measuring connection)

3: Intake funnel

2: Connection unit 03

4: Cutting ring
