Operating manual  VISATRON® Oil Mist Detector  VN2020 / VN2020 EX

Part number 183001  Version 3.0

131

MAINTENANCE AND REPAIR

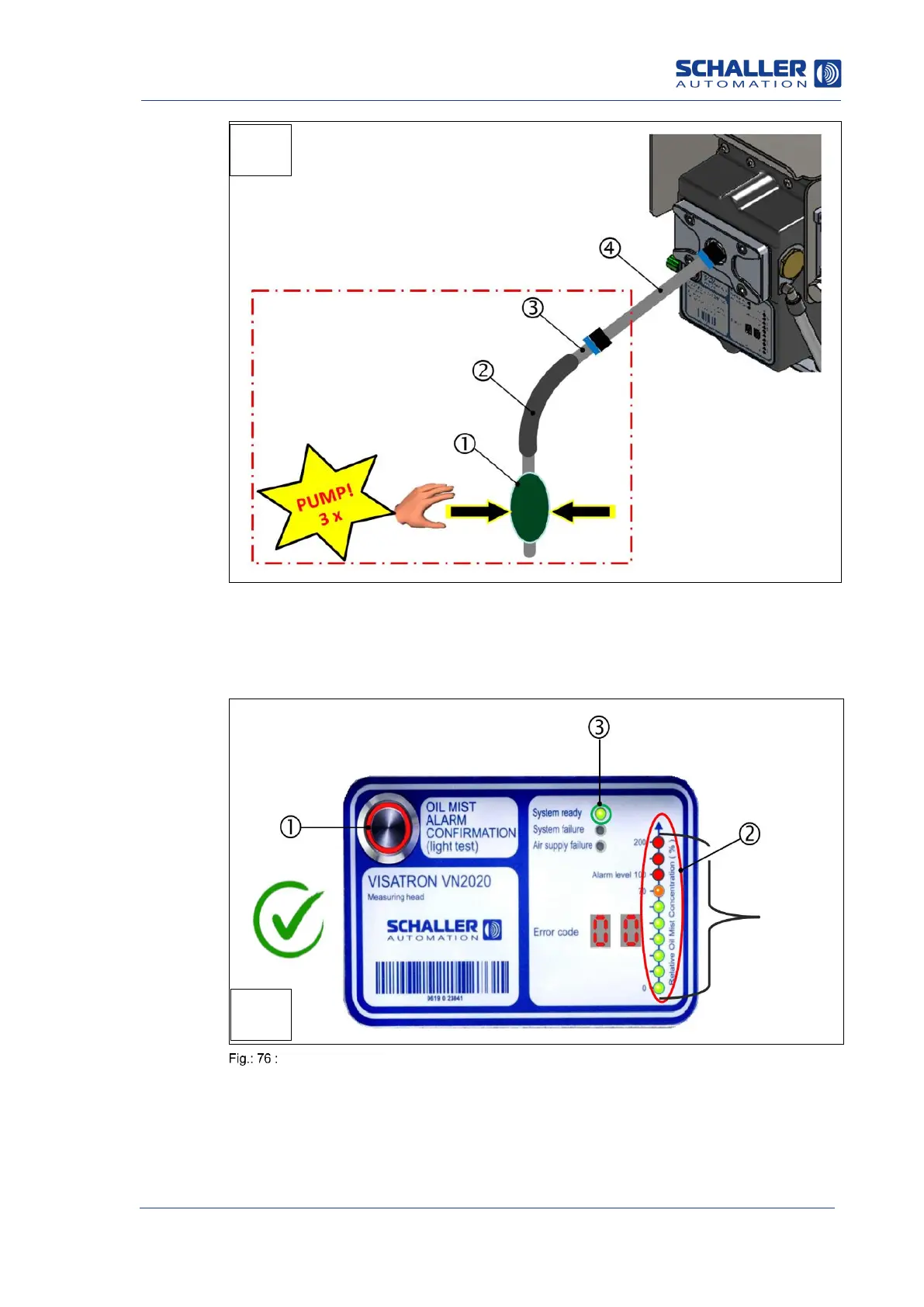

1: Hand pump

3: Adapter

2: Smoke tube

4: Flexible hose with push-in fitting

 Assembly of the remaining hose parts [ to ]

 For the function test: Press [] at least 3 times

Function test with test mist (steps 1-4)

• For the function test with test mist, the oil mist alarm is triggered within a few

seconds at a relative oil mist concentration ≥ 100%, as shown in the figure

above. In this case, the “Alarm level 100” LED on the LED bar display (right)

turns red. []

LED flashing

LEDs

come on
