Mobile data storage units
5.3 MDS D100
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
101
Note
If the minimum guide values (h) are not observed, a reduction of the field data results.
See also
Dimension drawing (Page 105)
5.3.4 Mounting options
Fixing pocket for MDS D100
The fixing pocket is secured on a non-metallic surface with M4 countersunk head screws in
the holes provided.
s
s
s
s

s

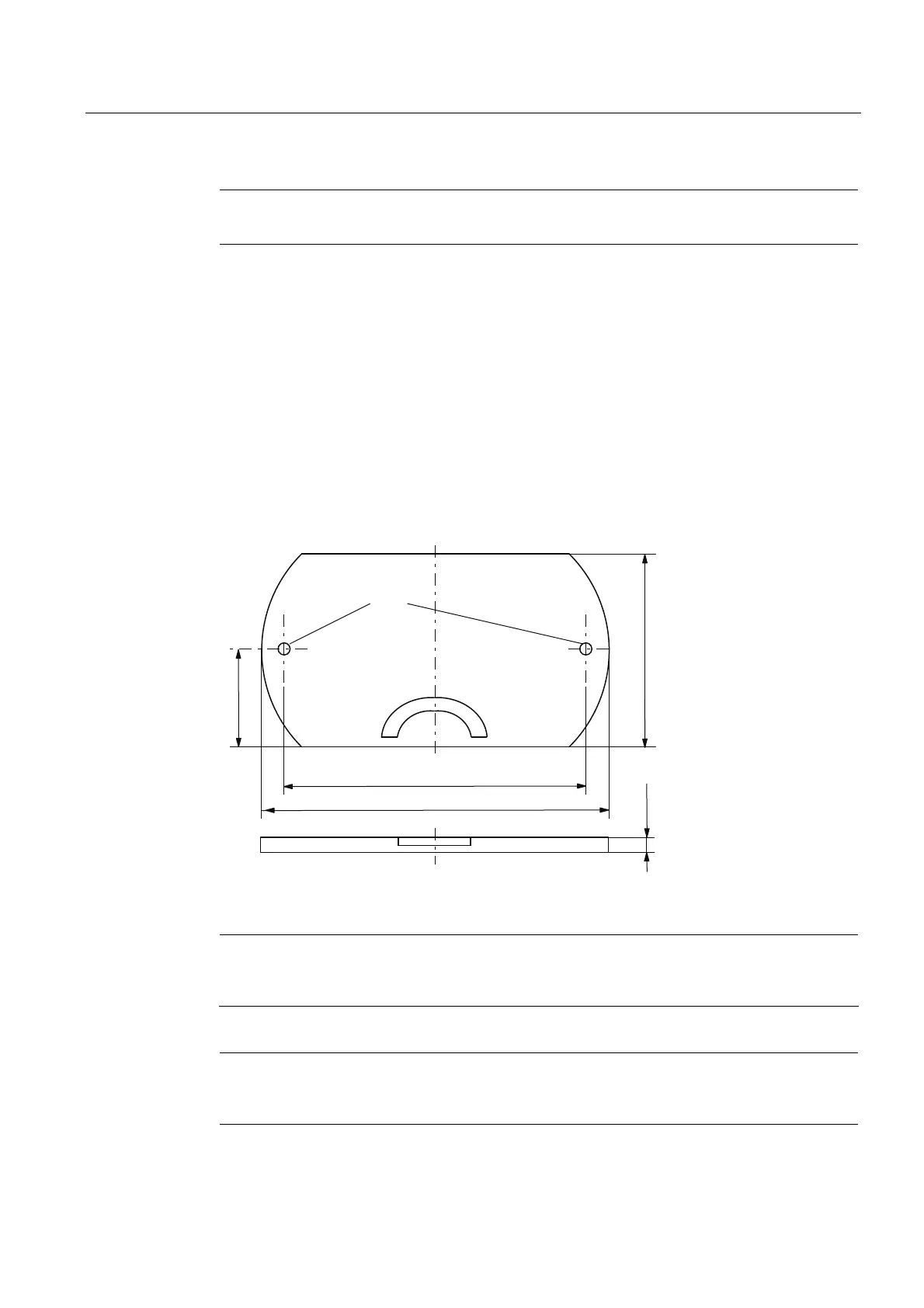

Figure 5-4 Fixing pocket 6GT2390-0AA00 for MDS D100
Note
The fixing pocket shown here with Order No.: 6GT2 390-0AA00 is not suitable for use with
the spacer (6GT2 190-0AA00).
Note
When mounting the MDS D100 on metal, it is also possible to use the 6GT2 190-0AB00
fixing pocket, but only in combination with the 6GT2 190-0AA00 spacer.
