Antennas
8.1 ANT D2
MOBY D
System Manual, 01/2010, J31069-D0147-A6-7618
207
8.1.4 Transmission window


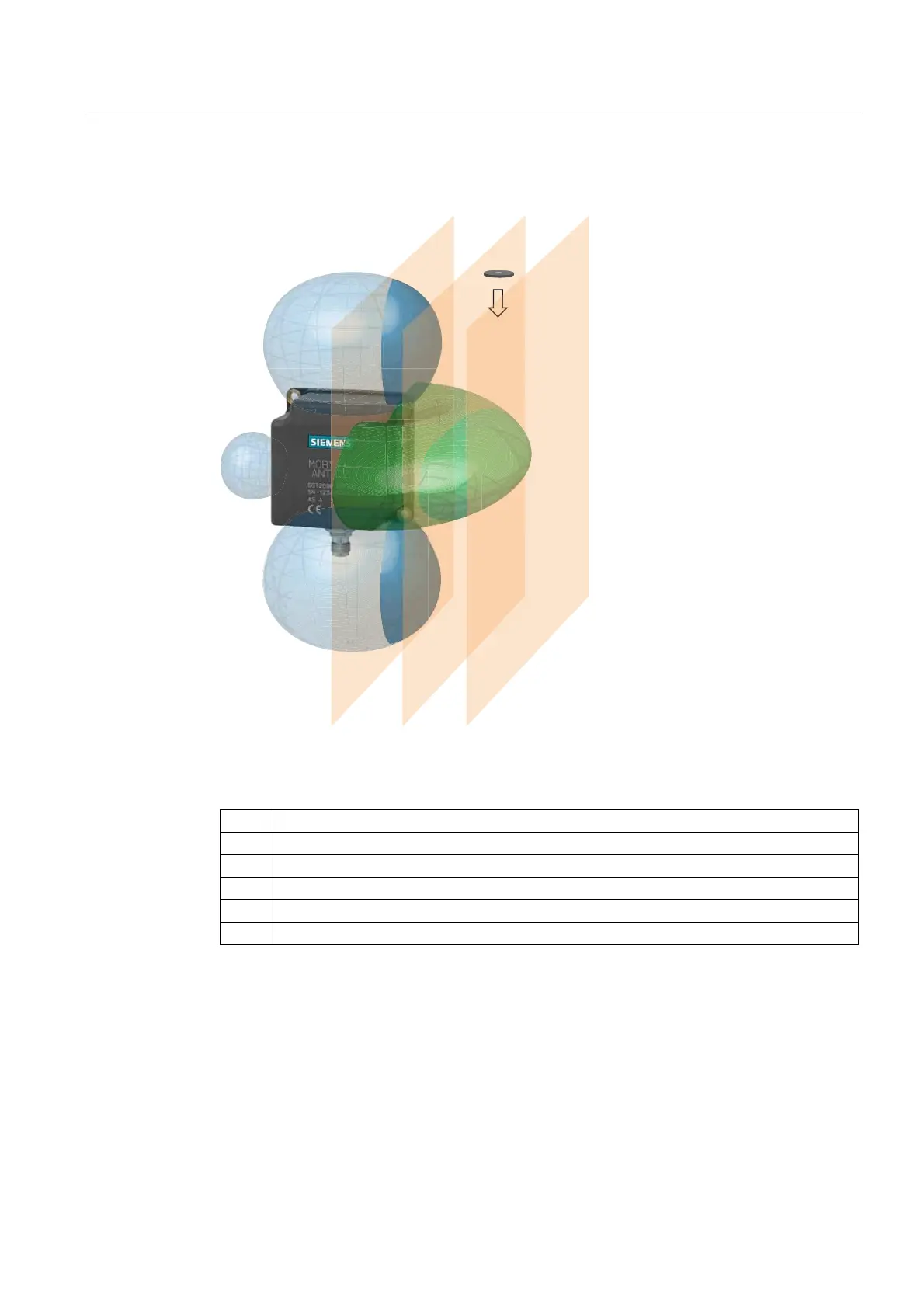

Figure 8-1 Transmission window for ANT D2
1 Level 1
2 Level 2
3 Level 3
⇓ Direction of motion of the transponder
Green Main field (processing field)
Blue Secondary fields
Operating range (S
a
)
The operating range lies between level 1 and level 3.
The operating range between level 1 and 2 includes secondary fields.
The recommended operating range therefore lies in the green main field between Level 2
and Level 3.
