C.2 Discontinued SLG with ANT D5
MOBY D
326 System Manual, 01/2010, J31069-D0147-A6-7618
C.2.4 SLG D10S ANT D5 (6GT2602-0AA00)
Application area
SLG D10S ANT D5 is a write/read device in the high-end performance range with a serial
interface and a separate antenna which has been specially designed for warehouses,
logistics and distribution. It is designed for a range of up to 480 mm. The write/read device is
equipped with a serial RS 422 interface that supports communication to SIMATIC S7 or
PROFIBUS DP-V1 through the interface modules (ASM 452, ASM 456, ASM 473 and
ASM 475).
FC 45 is one method of quick and easy programming available to the user.
With the high degree of protection (IP65) and the use of high-quality materials, the SLG
D10S ANT D5 ensures problem-free operation under the harshest industrial conditions.

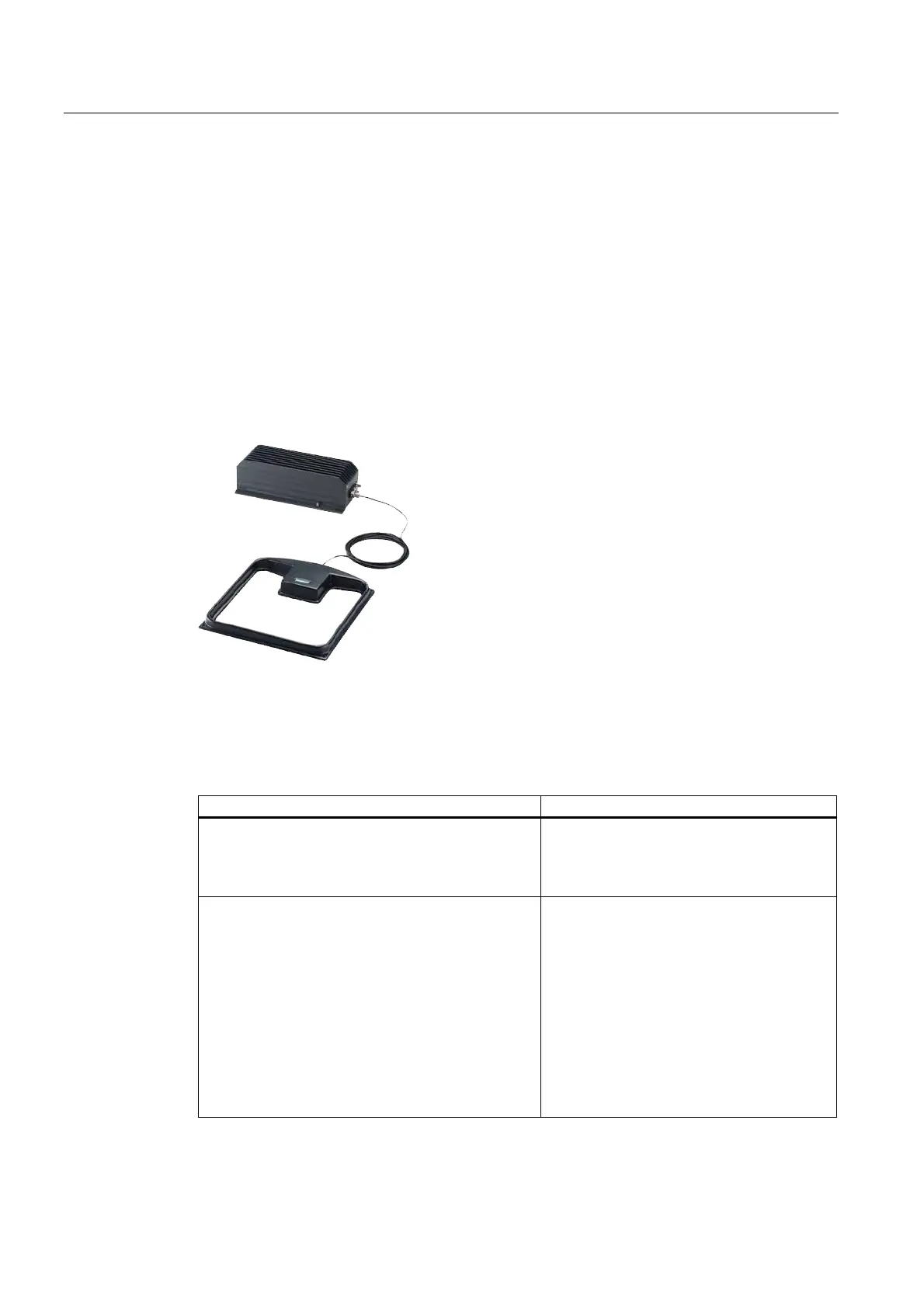

Figure C-18 Write/read device SLG D10S ANT D5
Ordering data
Table C- 13 Ordering data for SLG D10S ANT D5
Order No.
Write/read device SLG D10S ANT D5
With a serial RS 422 interface for connection to
ASM 452, ASM 456, ASM 473 and ASM 475,
with a remote antenna
6GT2602-0AA00
Accessories:
Spacer kit for ANT D5
Wide-range power supply unit for SIMATIC RF
systems (100 - 240 V AC / 24 V DC / 3 A) with 2 m
connecting cable and country-specific plug.
 EU
 UK
 US
 24 V connecting cable, 5 m in length
Cables and connectors
6GT2690-0AB00
 6GT2898-0AA00
 6GT2898-0AA10
 6GT2898-0AA20
 6GT2491-1HH50
See the Section Planning the MOBY D
system
