Antennas
8.2 ANT D5
MOBY D
210 System Manual, 01/2010, J31069-D0147-A6-7618
8.2 ANT D5

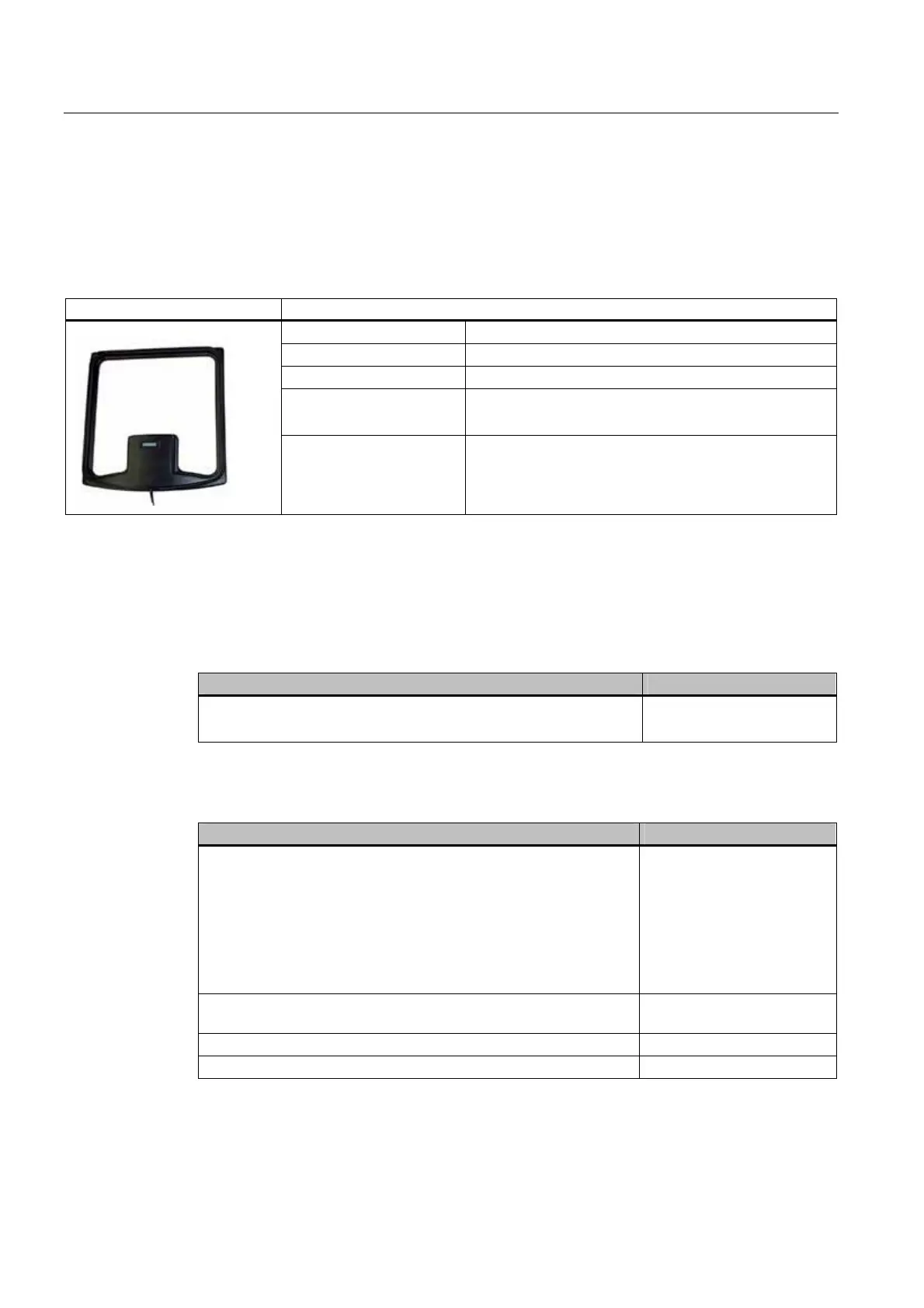

8.2.1 Features
ANT D5 Features
Applications Storage, logistics and distribution
Writing/reading distance Up to 480 mm (depending on MDS)
Connecting cable 3.3 m; pre-assembled
Connectable SLG
 SLG D10/10S
 SLG D11/11S
Degree of protection IP65
8.2.2 Ordering data
Table 8- 4 Ordering data of ANT D5
ANT D5 Order No.
 Dimensions L x W x H in mm: 340 x 325 x 38
 Antenna cable 3.3 m; permanently preassembled
6GT2698-5AA00
Table 8- 5 Ordering data of ANT D5 accessories
Accessories Order No.
Spacer kit for ANT D5 made of aluminum with plastic spacers incl.
fixing screws
Individual parts:
 1 aluminum plate 380 x 380 x 2
 4 plastic bolts 100 x 20
 4 countersunk-head screws M5 x 12
 4 combination screws M5 x 20
6GT2690-0AB00
Antenna duplexer
(with 1 antenna connecting cable 3.3 m)
6GT2690-0AC00
Antenna cable, length 10.5 m 6GT2691-0CN10
Antenna extension, length 7.2 m 6GT2691-0DH72
