SIMOVERT MASTERDRIVES Compendium Motion Control 5-7
Key Significance Function
Toggle key
• For switching between parameter number, parameter index
and parameter value in the indicated sequence (command
becomes effective when the key is released)
• If fault display is active: For acknowledging the fault
Raise key For increasing the displayed value:
• Short press = single-step increase
• Long press = rapid increase
Lower key For lowering the displayed value:
• Short press = single-step decrease
• Long press = rapid decrease
Hold toggle key
and depress raise
key
• If parameter number level is active: For jumping back and forth
between the last selected parameter number and the
operating display (r000)
• If fault display is active: For switching over to parameter
number level
• If parameter value level is active: For shifting the displayed
value one digit to the right if parameter value cannot be
displayed with 4 figures (left-hand figure flashes if there are
any further invisible figures to the left)
Hold toggle key
and depress lower
key
• If parameter number level is active: For jumping directly to
operating display (r000)
• If parameter value level is active: For shifting the displayed
value one digit to the left if the parameter value cannot be
displayed with 4 figures (right-hand figure flashes if there are
any further invisible figures to the right)

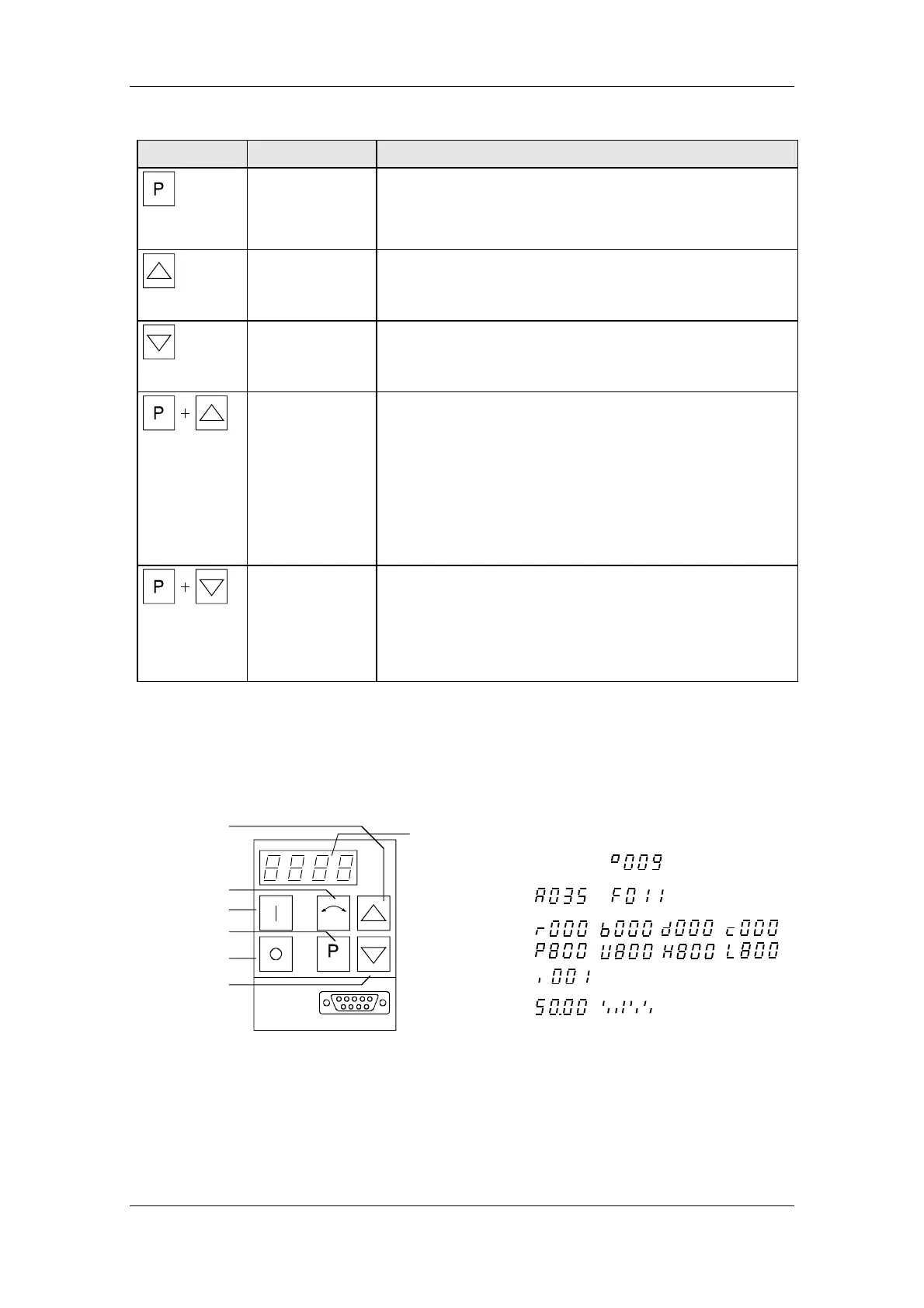

Table 5-6 Operator control elements of the PMU (Compact PLUS type)
X300
ON key
OFF key
Lower key
Toggle key
Raise key
Reversing key
Seven-segment display for:
Drive statuses
Alarms and
faults
Parameter numbers
Parameter indices
Parameter values
Fig. 5-3 PMU parameterizing unit
PMU in units of the
Compact and
chassis type
