3.3 Tightening torques
⇒ “3.3.1 Tightening torques Octavia II”, page 134
⇒ “3.3.2 Tightening torques Superb II”, page 136
⇒ “3.3.3 Tightening torques Fabia II”, page 137
⇒ “3.3.4 Tightening torques Roomster”, page 139
⇒ “3.3.5 Tightening torques Rapid”, page 140
⇒ “3.3.6 Tightening torques Rapid Indie”, page 142
⇒ “3.3.7 Tightening torques Octavia llI”, page 143
⇒ “3.3.8 Tightening torques Yeti”, page 144

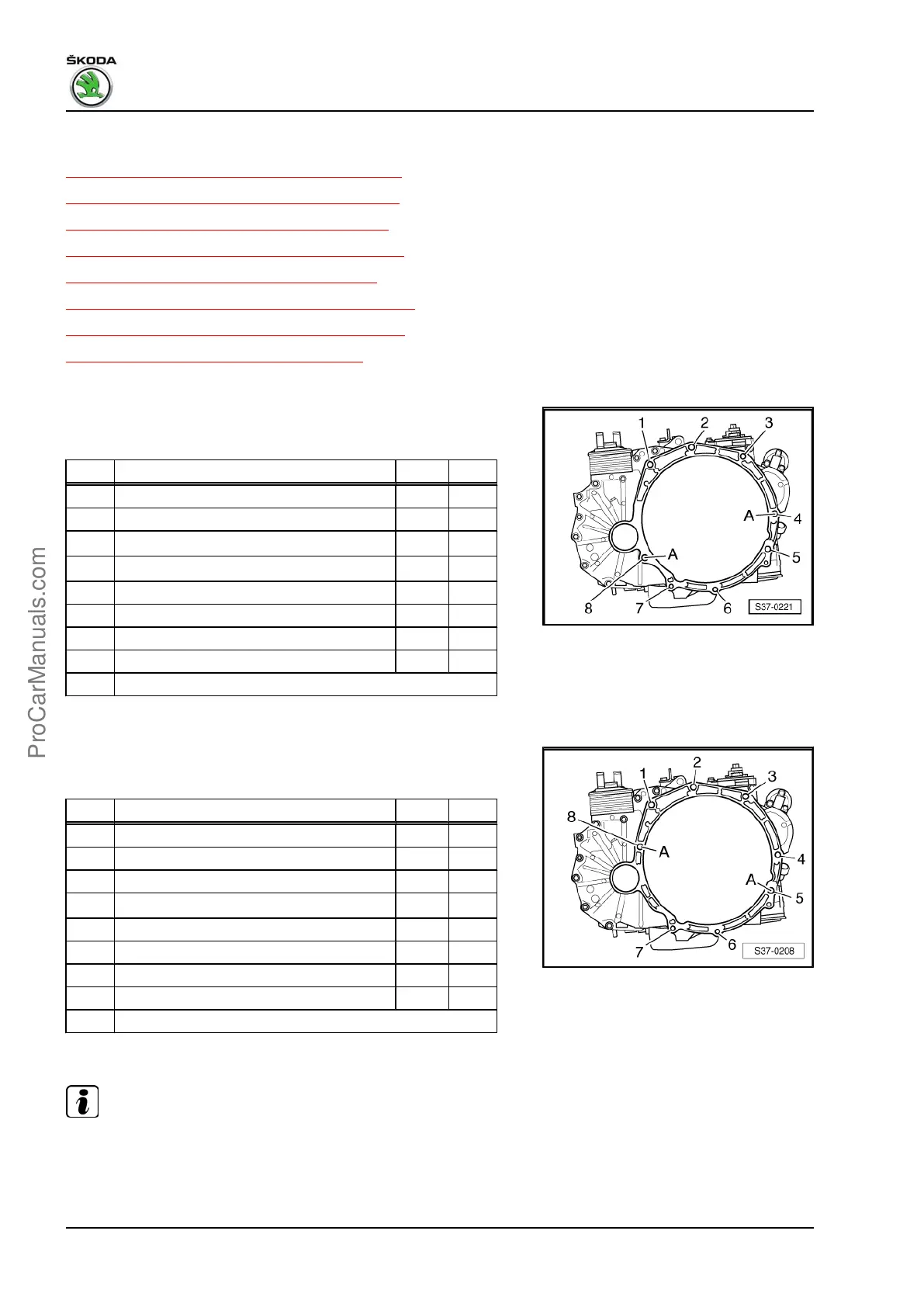

3.3.1 Tightening torques Octavia II
Vehicles with 1.6 ltr./75 kW engine
Gearbox to engine
Pos. Screw Piece Nm
1 M12 x 55 1 80
2 M12 x 55 1 80
3
1)
M12 x 155 + M8 x 16 1 80
4
1)
M12 x 165 + M8 x 16 1 80
5 M10 x 65 1 40
6 M10 x 55 1 40
7 M10 x 55 1 40
8 M12 x 100 1 80
A Dowel sleeves
1)
Screw with threaded pin M8. This screw also fastens the starter.
Vehicles with 1.6 l/85 kW FSI engine
Gearbox to engine
Pos. Screw Piece Nm
1 M12 x 55 1 80
2 M12 x 55 1 80
3 M12 x 55 1 80
4
1)
M12 x 165 + M8 x 16 1 80
5 M12 x 80 1 80
6 M10 x 50 1 40
7 M10 x 50 1 40
8 M12 x 80 1 80
A Dowel sleeves
1)
Screw with threaded pin M8. This screw also fastens the starter.
Note
The second fixing screw for starter on gearbox (M12 x 55 + M8 x
10, tightening torque 80 Nm) is not shown in this illustration.
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
134 Rep. gr.37 - Controls, housing
