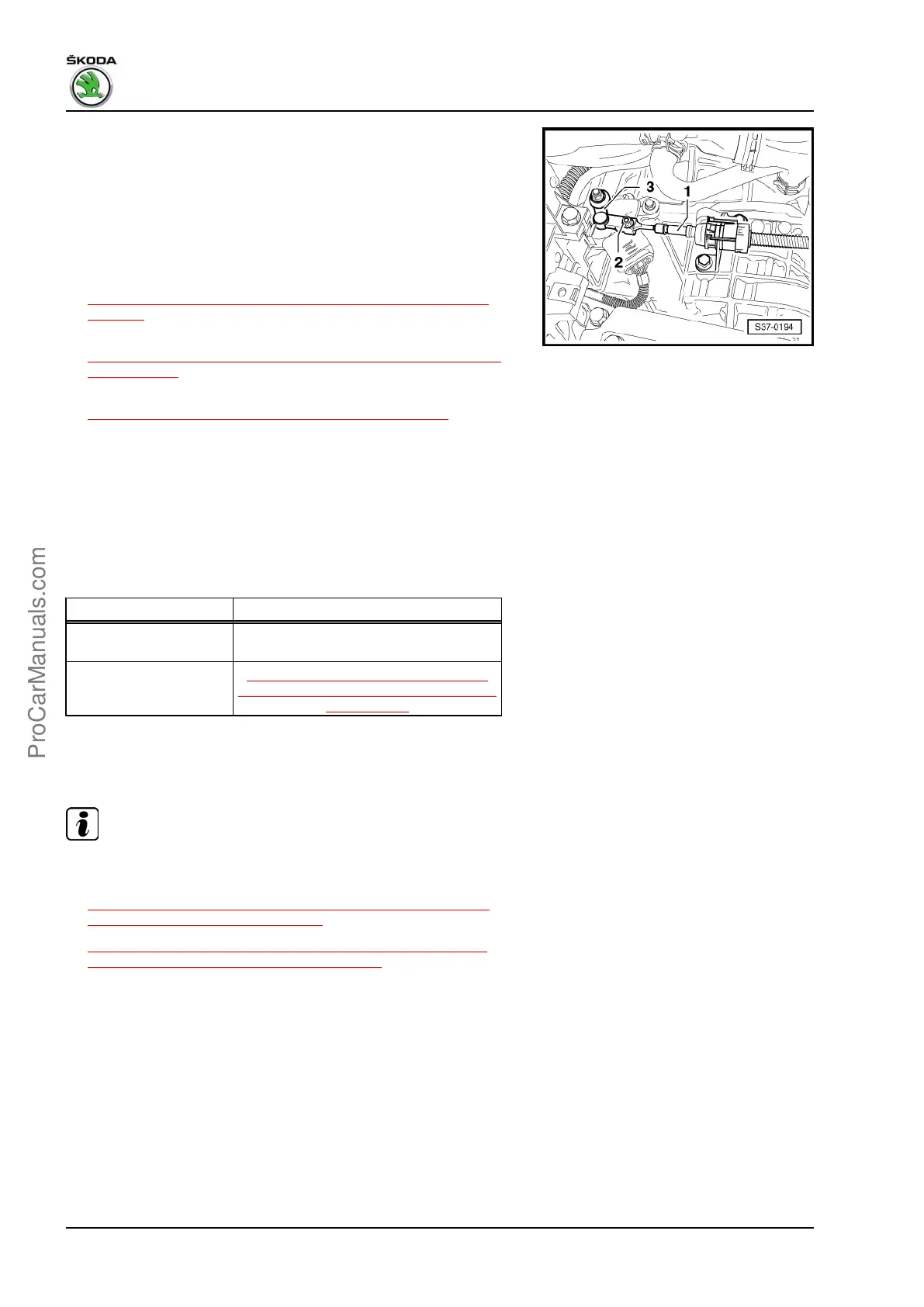

– Insert the selector lever control cable -1- in the cable support/
gearbox and carefully push onto the gearshift lever -3-. Do not
bend the gearshift lever, otherwise it will no longer be possible
to adjust the gearshift operation exactly.
– Hang the selector lever control cable in the clip arrow at the
ATF radiator. When installing the selector lever control cable,
respect a minimum distance of at least 5 mm from the ATF
cooler.
– Check the function of the ignition key anti-removal lock
⇒ “2.4 Check the function of the ignition key removal lock”,
page 57 .
– Setting selector lever control cable
⇒ “2.3 Inspecting and adjusting the selector lever control ca‐
ble”, page 55 .
– Inspect gearshift mechanism
⇒ “2.2 Inspecting the gearshift mechanism”, page 54 .
– Install the heat shield below the shift mechanism and fasten
the trim panels for the underfloor on the body ⇒ Body Work;
Rep. gr. 50 .
– Install exhaust system and align free of stress ⇒ Engine; Rep.
gr. 26 .
– Install the tunnel bridges below the exhaust system ⇒ Engine;
Rep. gr. 26 .
Tightening torques
Component Nm
Control unit holder at
battery tray
5
Summary of compo‐
nents - Gearshift mech‐
anism (Octavia III, Yeti)
⇒ “2.1.7 Summary of components -
Gearshift mechanism (Octavia III, Ye‐
ti)”, page 53
2.10 Removing and installing the selector
lever control cable
Note
♦ Selector lever control cable can be replaced as a separate part
or only on the vehicles:
♦ ⇒ “2.1.1 Summary of components - Gearshift mechanism -
Octavia II up to 10.2009”, page 41 .
♦ ⇒ “2.1.4 Summary of components - Shift mechanism up to
10.2011 (Fabia II and Roomster)”, page 47 .
Removing
– Remove engine cover engine ⇒ Engine; Rep. gr. 10
For vehicles Octavia II (up to production date 10.2009)
– Shift selector lever into position “S”.
– Switch off ignition.
– Remove air guide hose.
– Remove air filter ⇒ Engine; Rep. gr. 24 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
92 Rep. gr.37 - Controls, housing
