6 - Shift housing with gasket
❑ ⇒ Fig. ““Remove the shift mechanism together with the selector lever control cable from the shift hous‐
ing”“ , page 47
7 - Nut
❑ 4 pieces
❑ 25 Nm
8 - Gearshift lever
9 - Cable support
❑ for selector lever control cable
10 - Screw
❑ for cable support to gearbox
❑ 2 pieces
❑ 23 Nm
11 - Selector lever control cable
❑ when installing in the vehicle, clamp on the gearbox side with the fixing part to the heat shield of the
exhaust system
❑ The selector lever control cable must not be separated from the shift mechanism Pos. 3, it must be
removed together as one component part ⇒ Electronic Catalogue of Original Parts .
❑ Do not grease selector lever control cable
❑ ⇒ Fig. ““Remove the shift mechanism together with the selector lever control cable from the shift hous‐
ing”“ , page 47
❑ ⇒ “2.3 Inspecting and adjusting the selector lever control cable”, page 55
12 - Support
❑ for selector lever control cable
13 - Nut
❑ for holder Pos. 12 at gearbox
❑ 13 Nm

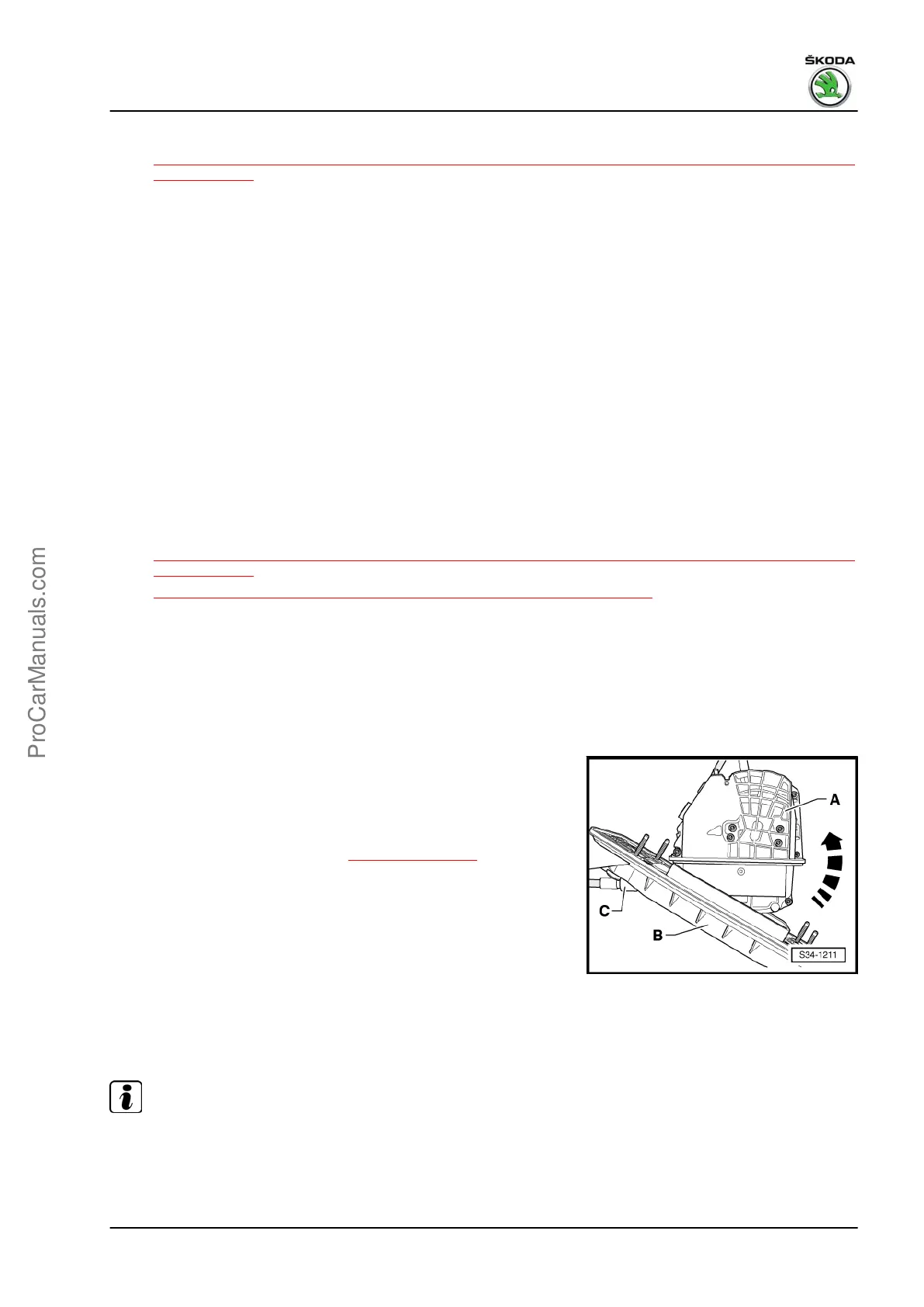

Remove the shift mechanism together with the selector lever con‐
trol cable from the shift housing
Remove the shift mechanism -A- together with the selector lever
control cable -C- from the shift housing -B- in
-direction of arrow-. To do so, unscrew 4 screws Pos. 5 (fig.
S37-10007) from the shift housing ⇒ Item 5 (page 46) .
2.1.4 Summary of components - Shift mech‐
anism up to 10.2011 (Fabia II and
Roomster)
Note
Grease bearing and friction surfaces with grease - G 000 450 02- .
Ignition key anti-removal lock is not actuated mechanically with
the linkage but electrically with a magnet.
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
2. Repairing shift mechanism 47
