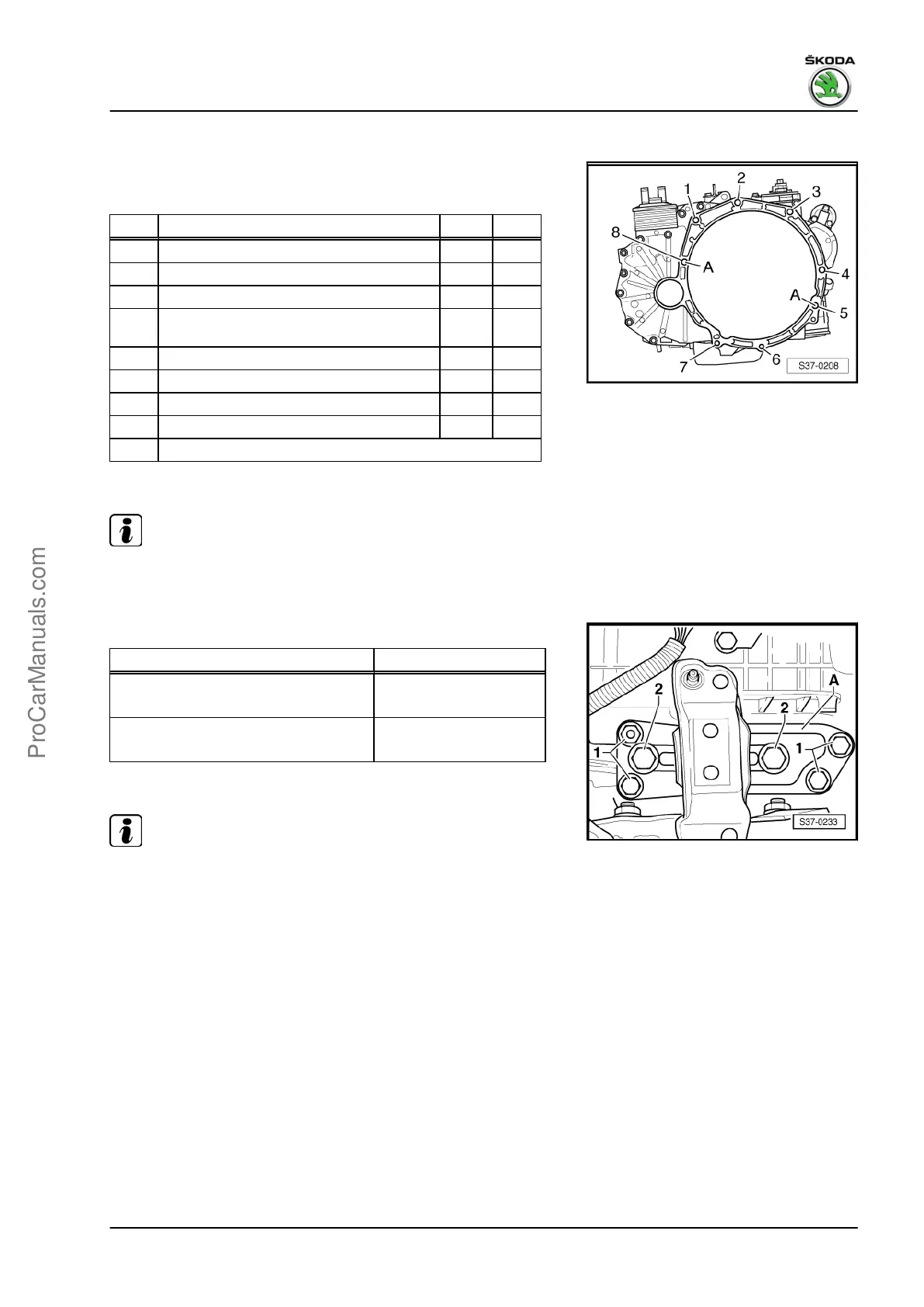

3.3.4 Tightening torques Roomster
Vehicles with 1.6 ltr./77 kW engine
Gearbox to engine
Pos. Screw Piece Nm
1 M12 x 55 1 80
2 M12 x 55 1 80
3 M12 x 55 1 80
4
1)
M12 x 165 + M8 x 16 (up to 11.2010)
M12 x 155 + M8 x 16 (as of 12.2010)
1 80
5 M12 x 80 1 80
6 M10 x 35 1 40
7 M10 x 35 1 40
8 M12 x 80 1 80
A Dowel sleeves
1)
Screw with threaded pin M8. This screw also fastens the starter.
Note
The second fixing screw for starter on gearbox (M12 x 55 + M8 x
10, tightening torque 80 Nm) is not shown in this illustration.
Gearbox console to gearbox and gearbox mount
Component Tightening torque
Gearbox console -A- to gearbox,
screws
1)
-1-
40 Nm + torque a further
90° (
1
/
4
turn)
Gearbox console -A- to gearbox
mounting, screws
1)
-2-
60 Nm + torque a further
90° (
1
/
4
turn)
1)
Replace screws ⇒ Electronic Catalogue of Original Parts .
Note
Install engine/gearbox mounting free of stress ⇒ Engine; Rep.
gr. 10 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
3. Removing and installing the gearbox 139
