– Screw a sheet metal screw with a diameter of approx. 4 mm
into the drilled hole of the gasket ring -arrow-.
Note
The sheet metal screw must not be screwed in too deep, so that
the bearing behind the gasket ring is not damaged.

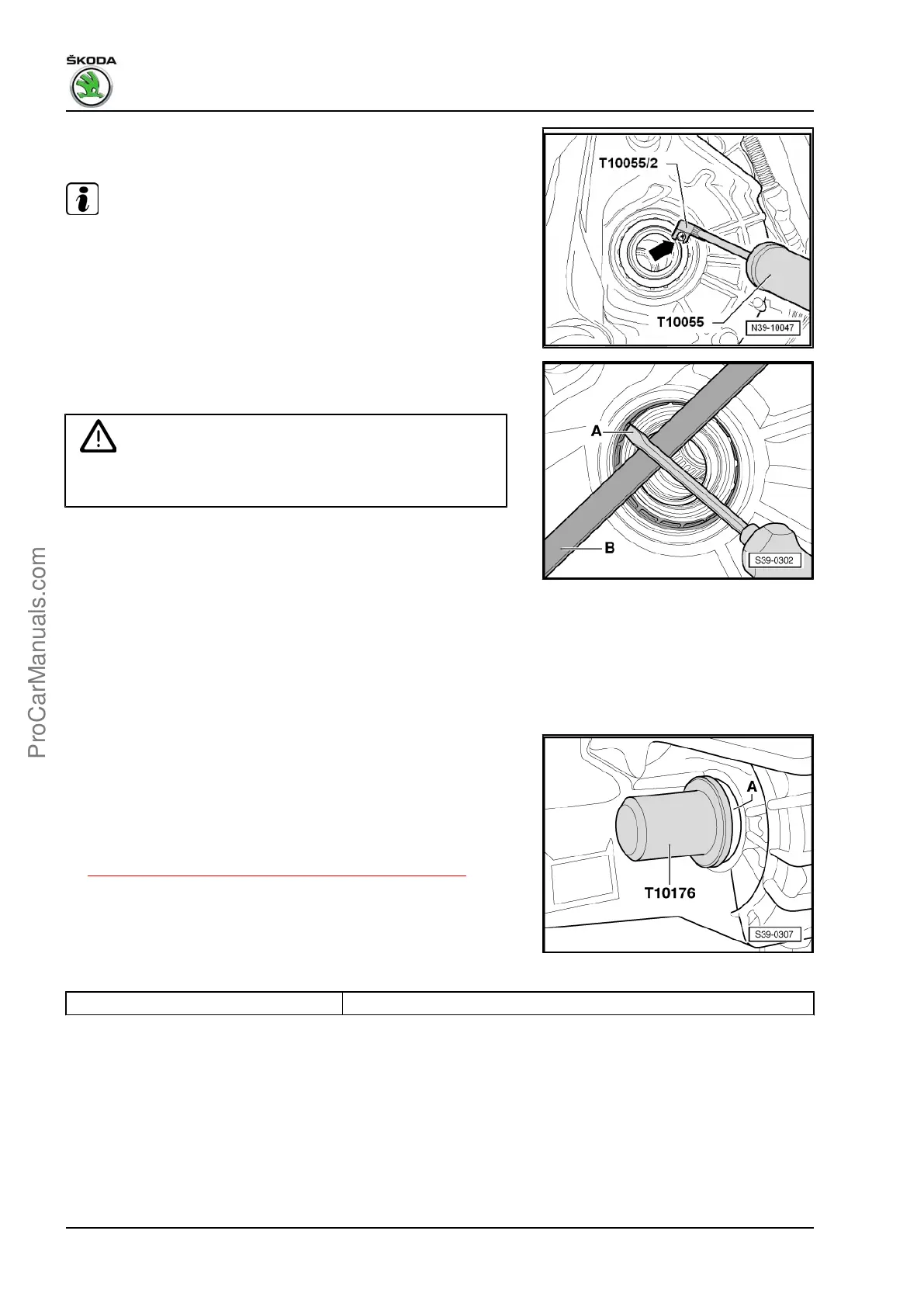

– Remove the gasket ring with the extractor - T10055- and
adapter - T10055/2- .
If the metal plate ring of the gasket ring is pulled out:
– Lever out the remaining shaft seal with a screwdriver -A-.
– Remove cloth -A- and thoroughly clean the gearbox.
WARNING
No metal swarfs must enter into the gearbox and into the open‐
ing for the drive shaft, if necessary suction off these swarfs.
Install
Installation is carried out in the reverse order. Pay attention to the
following:
– Coat the exterior area with ATF and half fill the space between
the sealing lips with sealing grease - G 052 128 A1- .
• Fitting position: The open side of the gasket ring faces towards
the gearbox.
– Position new seal ring by hand and press in as far as possible,
so that the shaft seal is fixed in the gearbox housing.
– Position pressure plate - T10176- in the middle on the shaft
seal -A-.
– Drive the new gasket ring up to the stop in the pressure plate;
do not tilt the gasket ring.
– Install drive shaft, left ⇒ Chassis, axles, steering; Rep. gr. 40 .
– Inspecting ATF level and if necessary topping up
⇒ “4.1 Check the ATF level level and top up”, page 147 .
– Install the noise insulation ⇒ Body Work; Rep. gr. 50 .
Tightening torque
Flange shaft to gearbox ⇒ Chassis, axles, steering; Rep. gr. 40
1.2 Replacing the right flange shaft seal ring
Gasket ring can be replaced with the gearbox installed.
Special tools and workshop equipment required
♦ Thrust piece - T10177-
♦ Extractor - T10055-
♦ Adapter - T10055/2-
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
190 Rep. gr.39 - Final drive - differential
