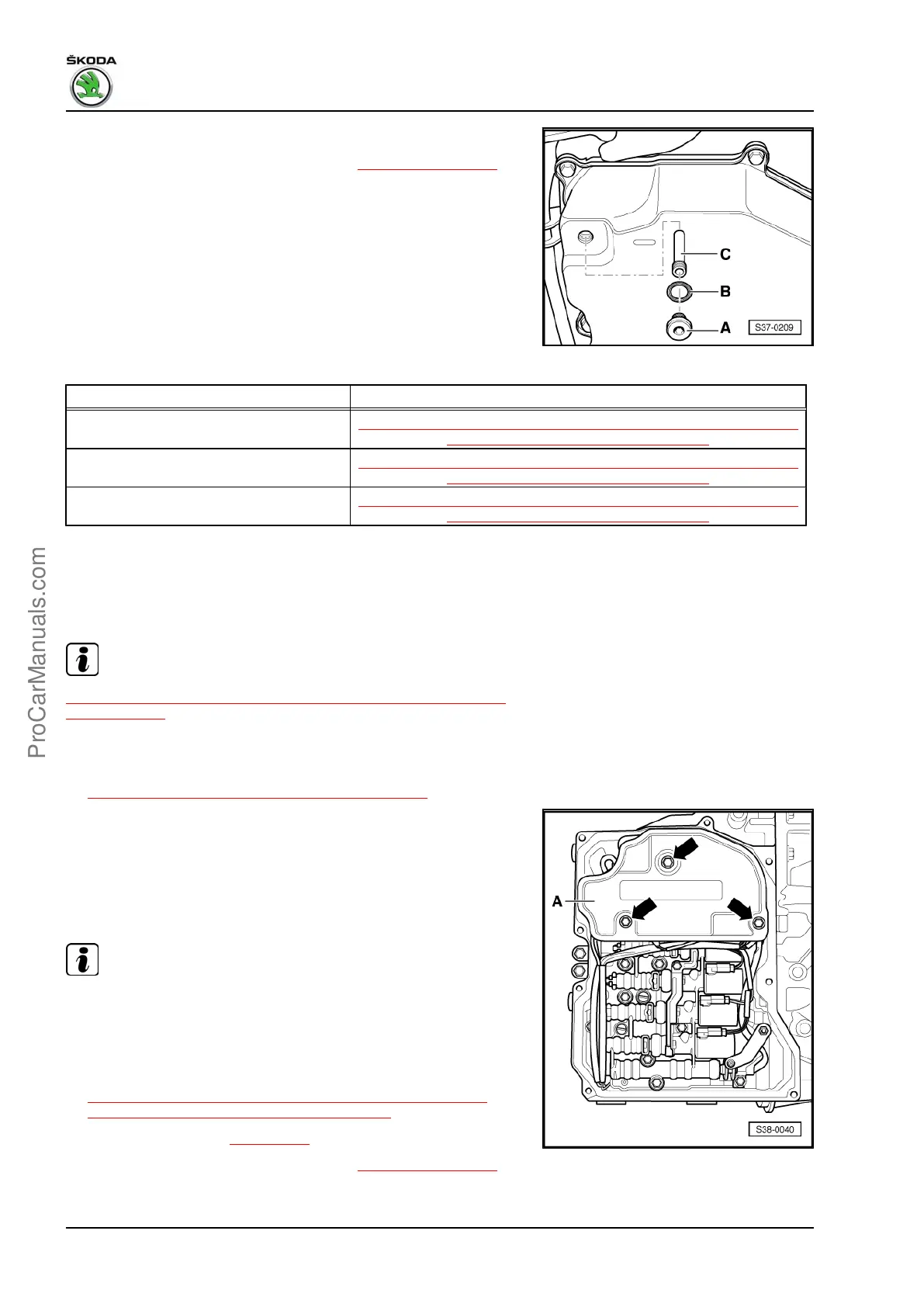

– Install overflow tube -C- (with 5 mm Allen key).
– Top up with ATF and inspect ATF level ⇒ “4 ATF”, page 147 .
• Gasket ring -B- of ATF inspection plug must be replaced after
the ATF level inspection ⇒ Electronic Catalogue of Original
Parts .
Tightening torques
Component Nm
Overflow in oil pan ⇒ “1.2 Summary of components - oil pan, oil strainer, slide valve
body, internal wiring looms”, page 165
ATF inspection plug to oil pan ⇒ “1.2 Summary of components - oil pan, oil strainer, slide valve
body, internal wiring looms”, page 165
Oil pan to gearbox housing
1)
⇒ “1.2 Summary of components - oil pan, oil strainer, slide valve
body, internal wiring looms”, page 165
1)
Tighten crosswise in stages.
1.5 Removing and installing the oil filter
Note
⇒ “2 Information and repair instructions for the automatic gearbox
09G”, page 12 .
Removing
– Removing the oil pan
⇒ “1.4 Removing and installing oil pan”, page 168 .
– Release screws -arrows- for oil strainer.
– Take the oil filter -A- out of the slide valve body.
Install
– Thinly coat gaskets on the intake collar of the oil filter (reverse
side) with ATF.
Note
If the gaskets on the reverse side of the oil filter for the slide valve
body are defective or no longer properly attached to the oil filter,
the oil filter must be replaced.
– Position oil filter on the slide valve body and screw in screws
-arrows- to tightening torque, and tighten
⇒ “1.2 Summary of components - oil pan, oil strainer, slide
valve body, internal wiring looms”, page 165 .
– Installing the oil pan ⇒ page 169 .
– Top up with ATF and inspect ATF level ⇒ “4 ATF”, page 147 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
170 Rep. gr.38 - Gears, control
