5 ATF coolant circuit
⇒ “5.1 ATF radiator - Summary of components”, page 155
⇒ “5.2 Removing and installing ATF radiator”, page 159
5.1 ATF radiator - Summary of components
⇒ “5.1.1 ATF radiator - Summary of components Octavia II”, page
155
⇒ “5.1.2 ATF radiator - Summary of components Octavia II for
gearboxes with identification characters KGV, KGU”, page 156
⇒ “5.1.3 ATF radiator - Summary of components Superb II for
gearboxes with identification characters KGV, KGU”, page 157
⇒ “5.1.4 ATF radiator - Summary of components Octavia III, Yeti”,
page 158
⇒ “5.1.5 ATF radiator - Fabia II, Rapid, Roomster”, page 159

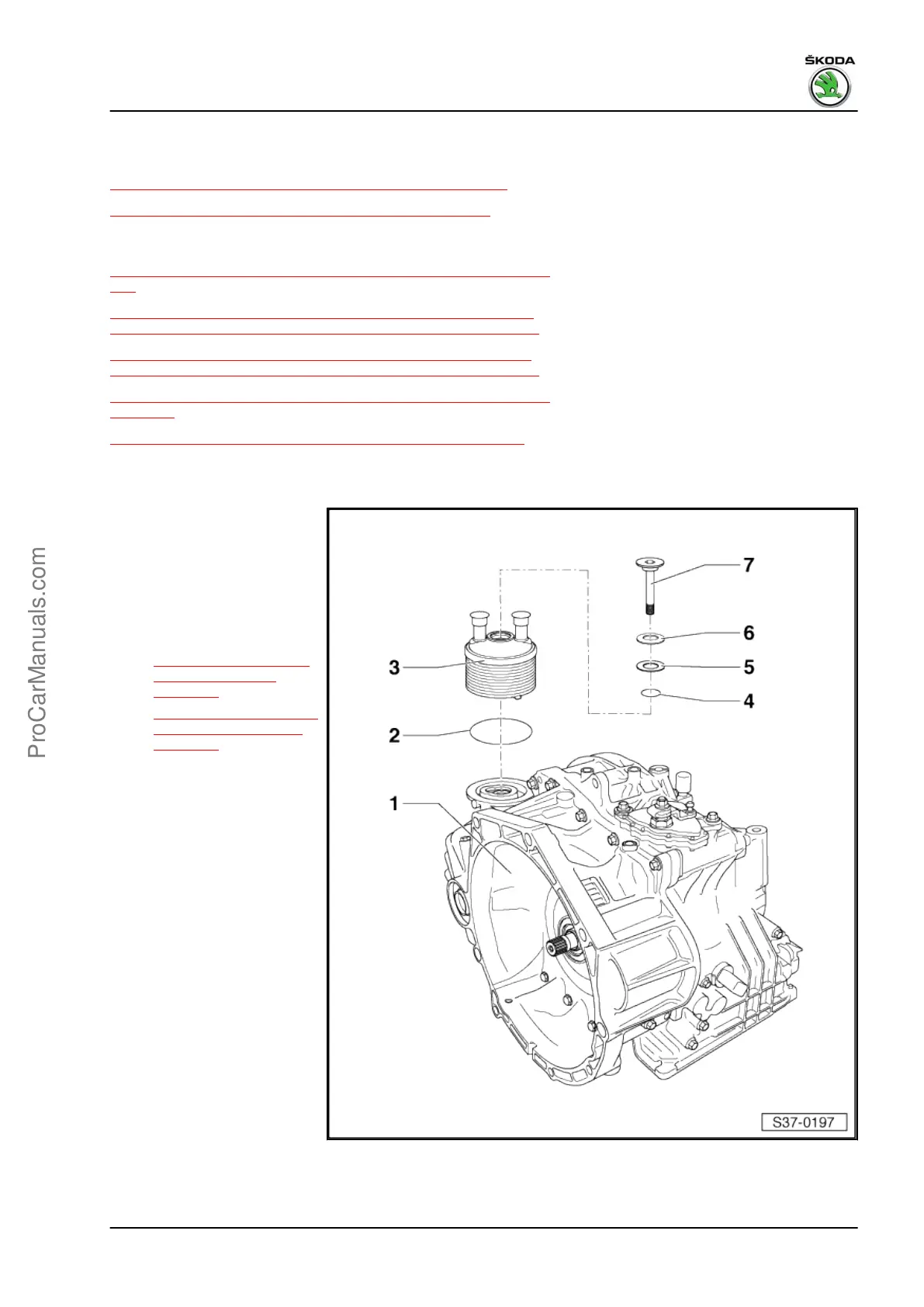

5.1.1 ATF radiator - Summary of components Octavia II
1 - Gearbox housing
2 - O-ring
❑ replace ⇒ Electronic
Catalogue of Original
Parts
3 - ATF radiator
❑ Check fitting position
⇒ Fig. ““Fitting location
of ATF radiator”“ ,
page 156
❑ ⇒ “5.2 Removing and in‐
stalling ATF radiator”,
page 159
4 - O-ring
❑ replace ⇒ Electronic
Catalogue of Original
Parts
5 - Washer
6 - Disc spring
❑ Fitting position: Must
rest on the washer Pos.
5; curved side of the disc
spring to the outside
must point upwards.
7 - Screw
❑ 36 Nm
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
5. ATF coolant circuit 155
