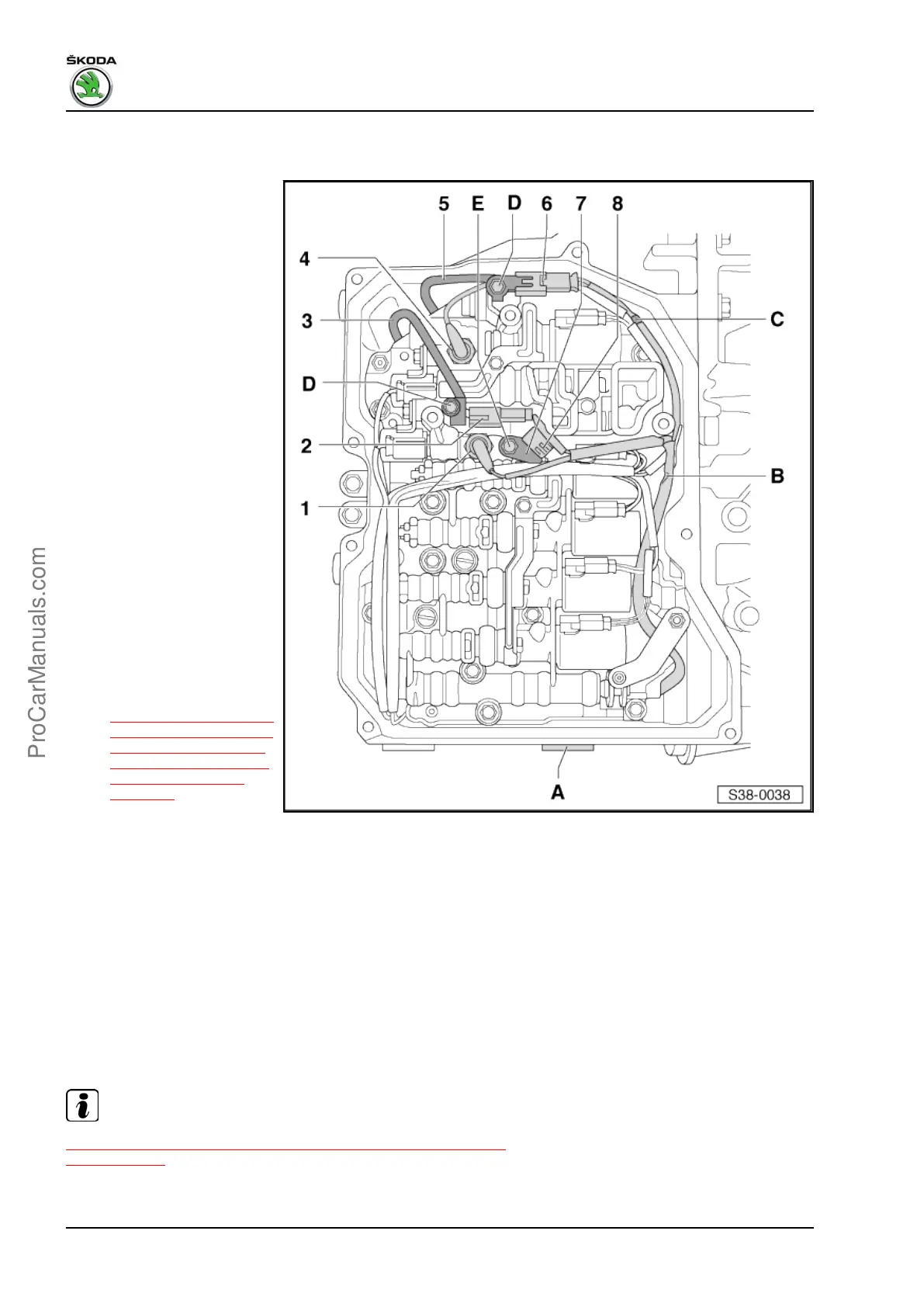

1.3 Components at wiring loom of 8-pin plug
1 - Hydraulic pressure sender
1 for automatic gearbox -
G193-
❑ no longer available as of
12.2004
2 - Plug for gearbox input
r.p.m. sender - G182-
3 - Cables for gearbox input
r.p.m sender - G182-
4 - Hydraulic pressure sender
2 for automatic gearbox -
G194-
❑ no longer available as of
12.2004
5 - Cables for gearbox output
r.p.m sender - G195-
6 - Plug for gearbox output
r.p.m. sender - G195-
7 - Holder for the gearbox oil
temperature sender - G93-
8 - Gearbox oil temperature
sender - G93-
❑ is integrated in the wir‐
ing loom -Pos. B-
A - 8-pin plug
B - Wiring loom for 8-pin plug
❑ ⇒ “1.8 Removing and in‐
stalling wiring loom with
8-pin plug and integra‐
ted gearbox oil temper‐
ature sender G93 ”,
page 181
C - Wiring harness bracket
D - Screw
❑ 7 Nm
E - Screw
❑ 7 Nm
1.4 Removing and installing oil pan
Special tools and workshop equipment required
♦ Catch pan , e.g. -VAS 6208-
♦ Protective goggles
Note
⇒ “2 Information and repair instructions for the automatic gearbox
09G”, page 12 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
168 Rep. gr.38 - Gears, control
