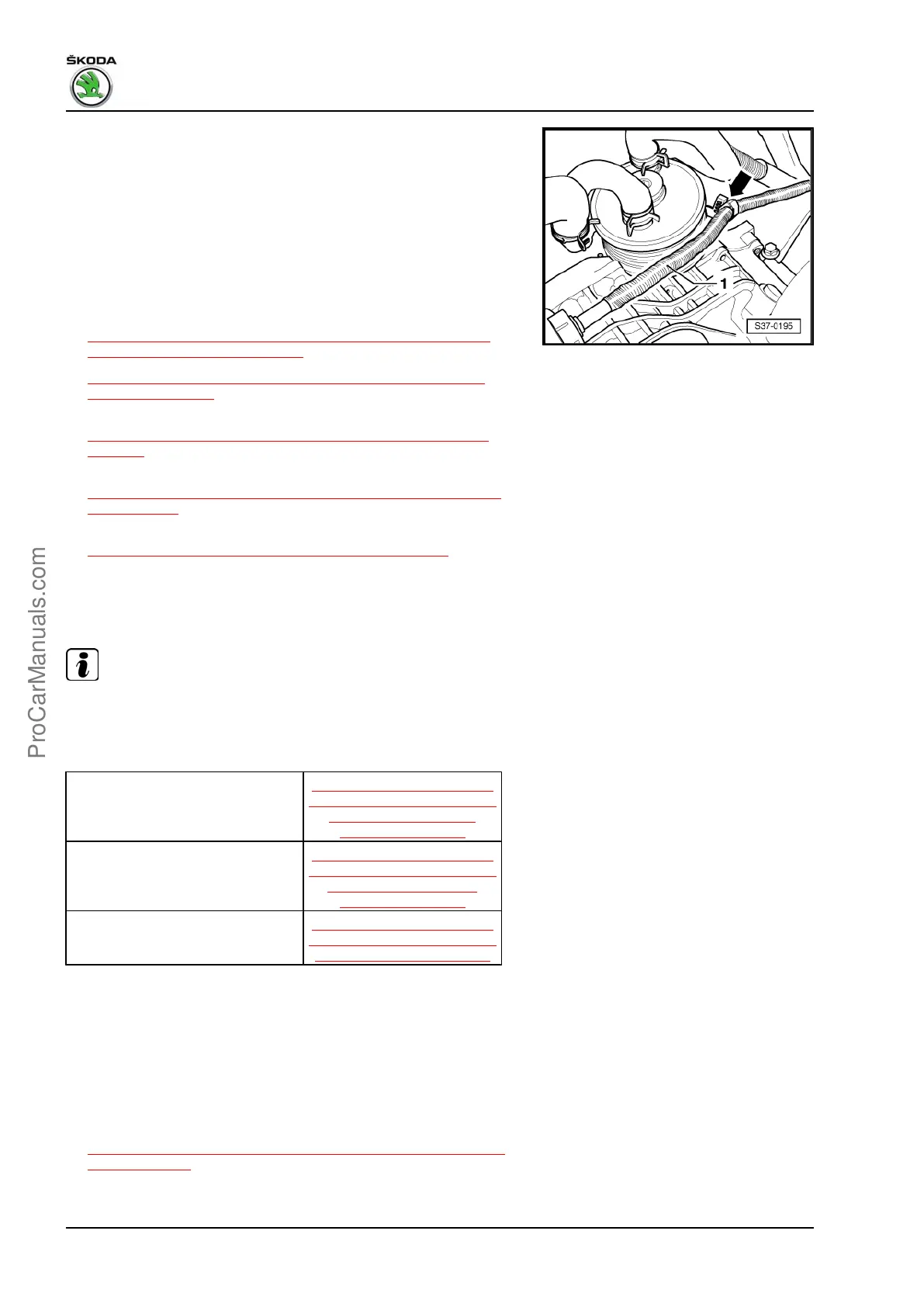

– Hang the selector lever control cable -1- in the clip -arrow- at
the gearbox. When installing the selector lever control cable,
respect a minimum distance of at least 5 mm from the ATF
cooler.
– Clamp the selector lever control cable on the gearbox side with
the fixing part to the heat shield of the exhaust system.
– Install exhaust system and align free of stress ⇒ Engine; Rep.
gr. 26 .
– Installing the selector lever handle and cover for the shift
mechanism:
♦ ⇒ “2.6 Removing and installing and installing selector lever
handle up to 10.2012”, page 65 .
♦ ⇒ “2.7 Removing and installing selector lever handle as of
11.2012”, page 70 .
– Check the function of the ignition key anti-removal lock
⇒ “2.4 Check the function of the ignition key removal lock”,
page 57 .
– Setting selector lever control cable
⇒ “2.3 Inspecting and adjusting the selector lever control ca‐
ble”, page 55 .
– Inspect gearshift mechanism
⇒ “2.2 Inspecting the gearshift mechanism”, page 54 .
– Install air filter ⇒ Engine; Rep. gr. 24 .
– Connect earth strap of battery ⇒ Electrical System; Rep. gr.
27 .
Note
If the battery earth strap is disconnected and connected, carry out
additional operations ⇒ Electrical System; Rep. gr. 27 .
Tightening torques
Summary of components - Gear‐
shift mechanism -Octavia II up to
10.2009
⇒ “2.1.1 Summary of com‐
ponents - Gearshift mecha‐
nism -Octavia II up to
10.2009”, page 41
Summary of components - Gear‐
shift mechanism - Octavia II as of
11.2009
⇒ “2.1.2 Summary of com‐
ponents - Gearshift mecha‐
nism - Octavia II as of
11.2009”, page 44
Summary of components - Gear‐
shift mechanism -Superb II
⇒ “2.1.3 Summary of com‐
ponents - Gearshift mecha‐
nism -Superb II”, page 46
2.9.3 Remove and install shift mechanism Oc‐
tavia IlI
Special tools and workshop equipment required
♦ Removal tool for the inner lining of the door panel -MP8-602/1-
Removing
– Removing the cover for the shift mechanism
⇒ “2.5 Removing and Installing the cover for the shift mecha‐
nism”, page 58 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
84 Rep. gr.37 - Controls, housing
