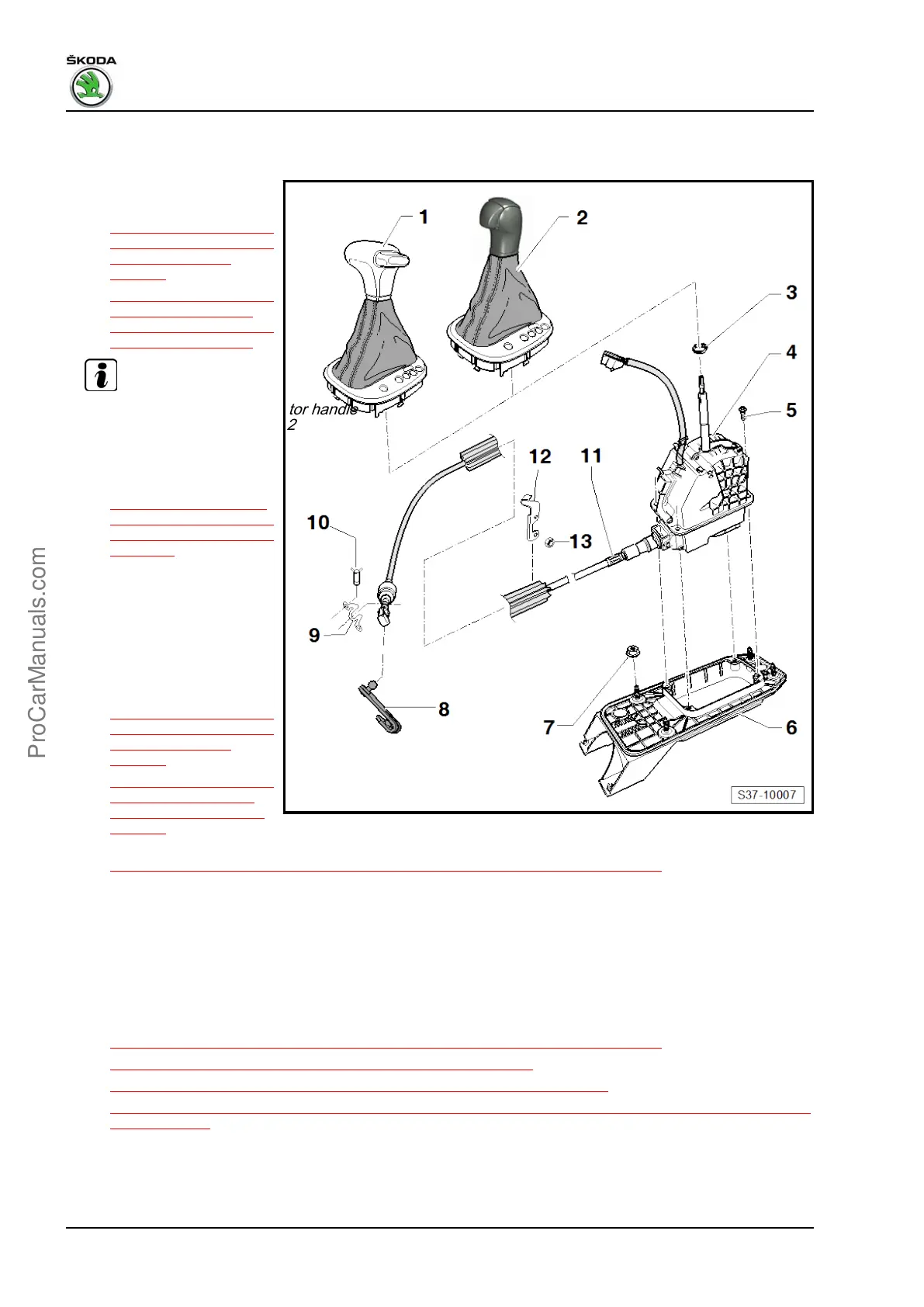

2.1.3 Summary of components - Gearshift mechanism -Superb II
1 - Cover with handle up to
10.2012
❑ ⇒ “2.5 Removing and In‐
stalling the cover for the
shift mechanism”,
page 58
❑ ⇒ “2.6 Removing and in‐
stalling and installing
selector lever handle up
to 10.2012”, page 65
Note
As of 11.2012, the selector handle
was changed, see Pos. 2
❑ for the emergency re‐
lease only the cover
needs to be unclipped
⇒ “2.14 Emergency re‐
lease of gearshift mech‐
anism out of position P ”,
page 105
❑ the symbol insert and
the circuit board with the
lamp for selector lever
scale illumination -
L101- are integrated in
the cover
2 - Cover with handle as of
11.2012
❑ ⇒ “2.5 Removing and In‐
stalling the cover for the
shift mechanism”,
page 58
❑ ⇒ “2.7 Removing and in‐
stalling selector lever
handle as of 11.2012”,
page 70
❑ for the emergency release only the cover needs to be unclipped
⇒ “2.14 Emergency release of gearshift mechanism out of position P ”, page 105
❑ the symbol insert and the circuit board with the lamp for selector lever scale illumination - L101- are
integrated in the cover
3 - Open warm-type clamp
❑ always replace ⇒ Electronic Catalogue of Original Parts
❑ tighten using hose binding claw - V.A.G 1275-
4 - Shift mechanism
❑ with selector lever lock solenoid - N110-
❑ ⇒ “2.14 Emergency release of gearshift mechanism out of position P ”, page 105
❑ ⇒ “2.9 Removing and installing selector mechanism”, page 74
❑ ⇒ “2.3 Inspecting and adjusting the selector lever control cable”, page 55
❑ ⇒ Fig. ““Remove the shift mechanism together with the selector lever control cable from the shift hous‐
ing”“ , page 47
5 - Screw
❑ 8 Nm
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
46 Rep. gr.37 - Controls, housing
