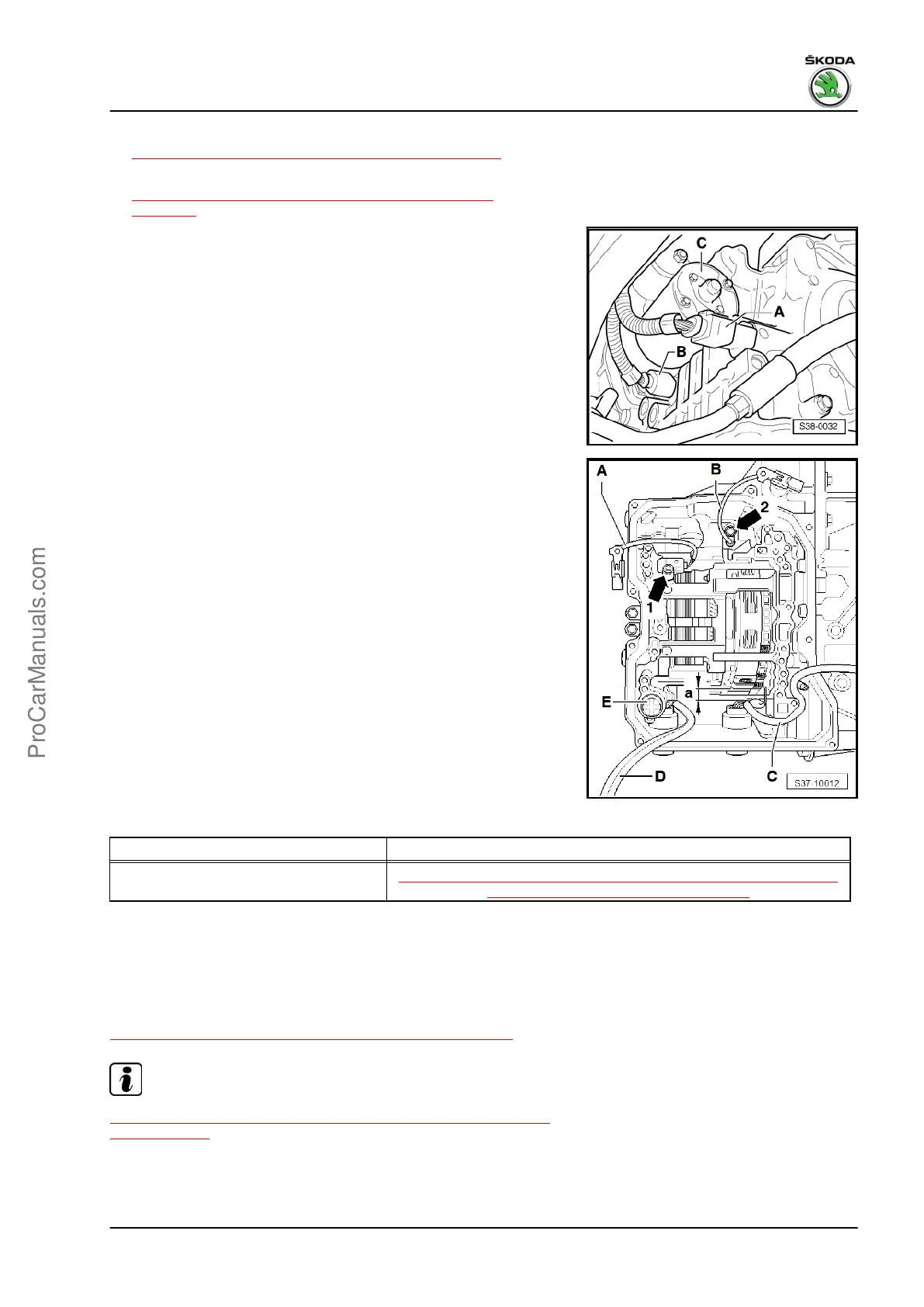

– Removing oil filter
⇒ “1.5 Removing and installing the oil filter”, page 170 .
– Remove the slide valve body
⇒ “1.6 Removing and installing the slide valve body”,
page 171 .
With gearbox installed
– Unplug the 14 pin plug connection -A- from gearbox plug.
Continued for all gearboxes
– Unscrew fixing screw of 14-pin plug outside the gearbox hous‐
ing.
– Pull the plug out of the gearbox housing and carefully guide
through the wiring loom -D-.
Install
Installation is performed in the reverse order, pay attention to the
following points:
– Replace O-ring at plug ⇒ Electronic Catalogue of Original
Parts .
– Moisten O-ring with ATF.
– Press plug with positioned O-ring up to the stop into the gear‐
box.
Tightening torque
Component Nm
Locking screw for 14-pin plug ⇒ “1.2 Summary of components - oil pan, oil strainer, slide valve
body, internal wiring looms”, page 165
1.8 Removing and installing wiring loom
with 8-pin plug and integrated gearbox
oil temperature sender - G93-
⇒ “1.3 Components at wiring loom of 8-pin plug”, page 168 .
Note
⇒ “2 Information and repair instructions for the automatic gearbox
09G”, page 12 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
1. Removing and installing oil pan, oil filter, slide valve body and internal wiring looms 181
