5.1.5 ATF radiator - Fabia II, Rapid, Roomster

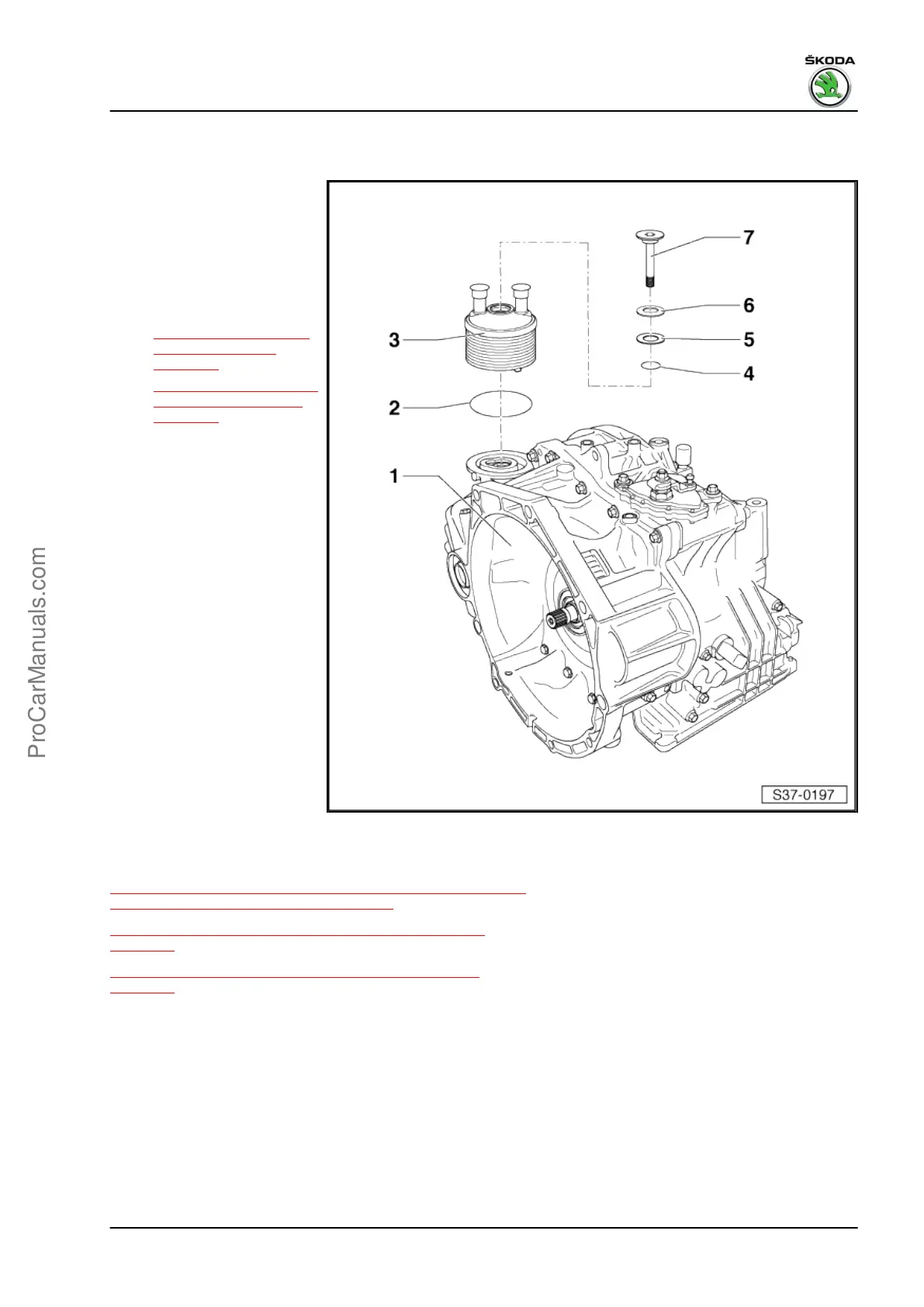

1 - Gearbox housing
2 - O-ring
❑ replace ⇒ Electronic
Catalogue of Original
Parts
3 - ATF radiator
❑ Check fitting position
⇒ Fig. ““Fitting location
of ATF radiator”“ ,
page 156
❑ ⇒ “5.2 Removing and in‐
stalling ATF radiator”,
page 159
4 - O-ring
❑ replace ⇒ Electronic
Catalogue of Original
Parts
5 - Washer
6 - Disc spring
❑ Fitting position: Must
rest on the washer Pos.
5; curved side of the disc
spring to the outside
must point upwards.
7 - Screw
❑ 36 Nm
5.2 Removing and installing ATF radiator
⇒ “5.2.1 Removing and installing ATF radiator (Fabia, Rapid,
Roomster, Octavia II, Superb)”, page 159
⇒ “5.2.2 Remove and install ATF radiator (Octavia IlI)”,
page 161
⇒ “5.2.3 Removing and installing ATF radiator (Yeti) ”,
page 162
5.2.1 Removing and installing ATF radiator
(Fabia, Rapid, Roomster, Octavia II, Su‐
perb)
Special tools and workshop equipment required
♦ Hose clamps - MP7-602 (3094)-
Removing
– Remove engine cover ⇒ engine; Rep. gr. 10 .
– Remove air filter ⇒ Engine; Rep. gr. 24 .
Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014
5. ATF coolant circuit 159
