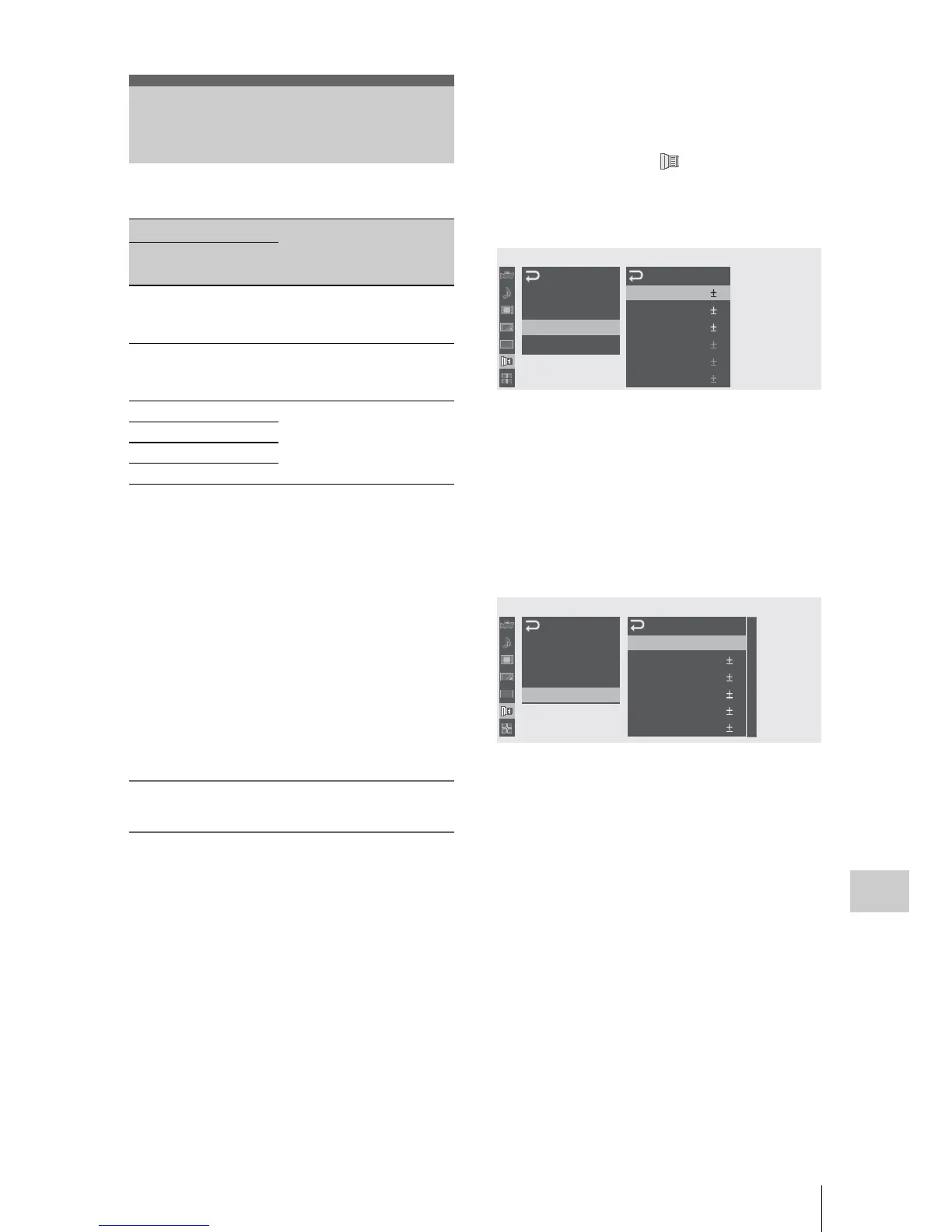

Lens File Operations
143
Appendixes
Up to 6 lens files can be used with this camcorder.
By storing the characteristics (compensation
data) specific to lenses in the files in the built-in
memory, the optimum compensation can be
easily made merely by retrieving the appropriate
file upon lens replacement.
The optimum compensation data for the
exclusive lenses are stored in File 01 and File 02,
respectively, at the factory and are automatically
retrieved when the corresponding lenses are
mounted.
When using other lenses than the exclusive
lenses, you can store the compensation data in
Files U1 to U4 with the LENS menu.
Storing compensation data for a non-
exclusive lens
The same compensation data as those in the file
for the supplied standard lens (01: VCL-614B2X)
are stored in all the user-definable files U1 to U4.
To use a non-exclusive lens, store the
compensation data in a file by proceeding as
follows:
1 Mount a lens for which you wish to store
the compensation data in a file.
2 Set the camcorder to Camera mode by
se
tting the power switch to the
CAMERA position.
3 Adjust the white balance.
4 Press the MENU button to set the
c
amcorder to Menu mode and select the
LENS menu with .
5 Select “Flare” and set the flare
compensation values for R, G, and B.
(Set the items with “EX” when a lens
extender is in use.)
6 Select “Shading” and set the shading
compensation values for each channel
(R, G, and B).
First specify the channel (R, G, or B) with
“Shading CH” then set the values.
(Set the items with “EX” when a lens
extender is in use.)
7 When the adjustments are finished,
s
elect “File.”
When the mounted lens is a serial lens, the
corresponding lens ID is displayed in the
Lens ID column.
When the mounted lens is a non-serial lens,
“unknown” is displayed in the Lens ID
column.
Lens File Operations
File ID Applicable lens
File
No.
File name
01 VCL-614B2X VCL-614B2X exclusive
standard zoom lens
(supplied)
02 XS8X4AS-
XB8
Fujinon XS8X4AS-XB8
exclusive wide zoom lens
(optional)
U1 User_File1 User-definable
U2 User_File2
U3 User_File3
U4 User_File4
00:00
R
Fla
r
e
G
Fla
r
e
B
Fla
r
e
R
Fla
r
e
EX
G
Fla
r
e
EX
B
Fla
r
e
EX
A
uto
FB
ADJ
File
Fla
r
e
S
hading
:
0
:
0
:
0
:
0
:
0
:
0
LENS
B
B
B
00:00
S
hadi ng
CH
M
V
MOD
H
SAW
H
PARA
V
SAW
V
PARA
A
uto
FB
ADJ
File
Fla
r
e
S
hading
:
R
:
0
:
0
:
0
:
0
:
0
LENS
B
B
B
B
