7B1-26 AUTOMATIC TRANSMISSION (4 A/T)
DTC P0705 (DTC NO.72) - Transmission Range Sensor (Switch) Circuit Mal-
function

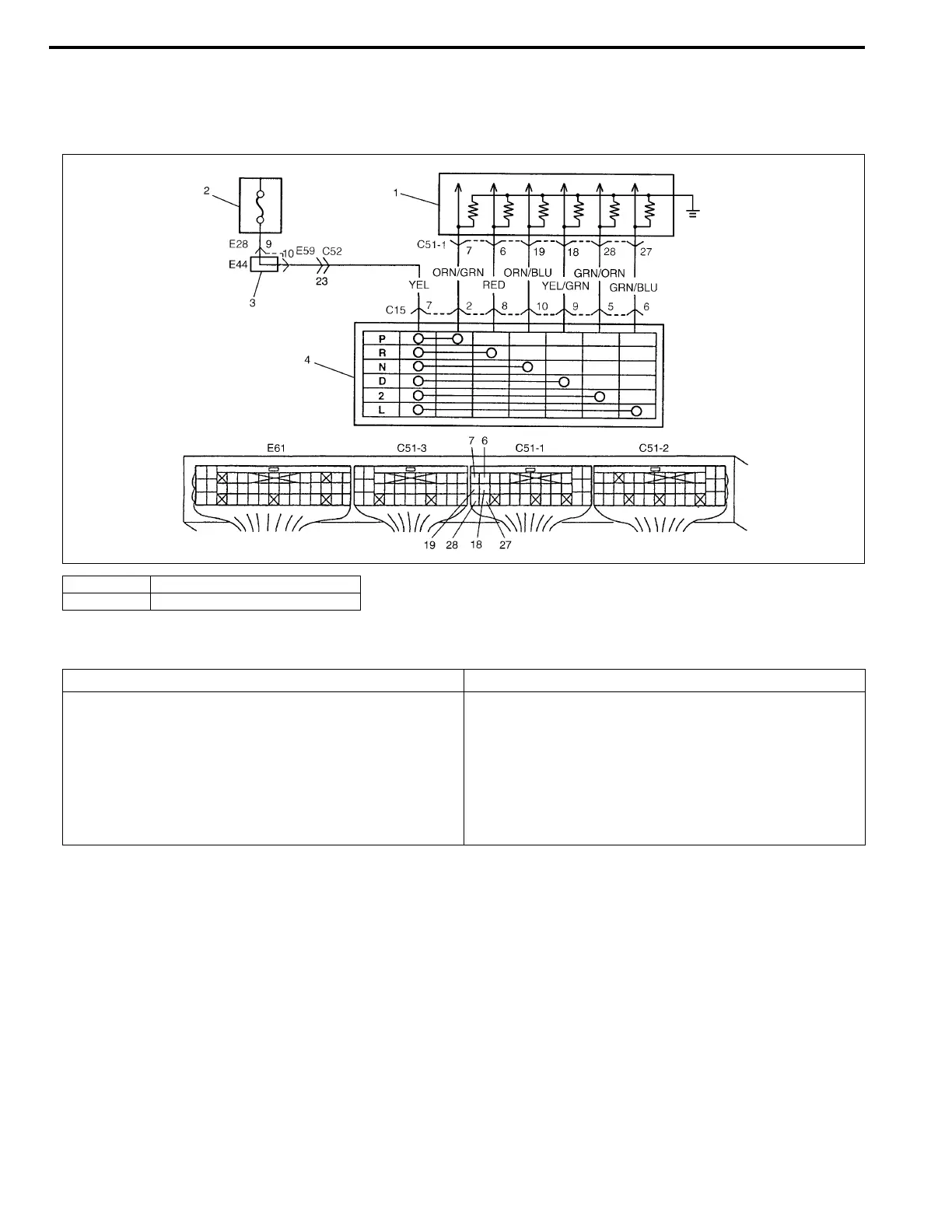

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
1. PCM 3. J/C
2. Fuse 4. Transmission range sensor (switch)
DTC DETECTING CONDITION TROUBLE AREA
• Transmission range switch signal (P, R, N, D, 2 or L)
is not inputted for 25 sec, at 60 km/h (38 mile/h) or
higher vehicle speed.
or
• Multiple signals are inputted simultaneously for 25
sec.
(2 driving cycle detection logic)
• Transmission range sensor (switch) maladjusted.
• Transmission range sensor (switch) or its circuit
malfunction.
• PCM
To Next Page
