2. Service Maintenance Information
2-5

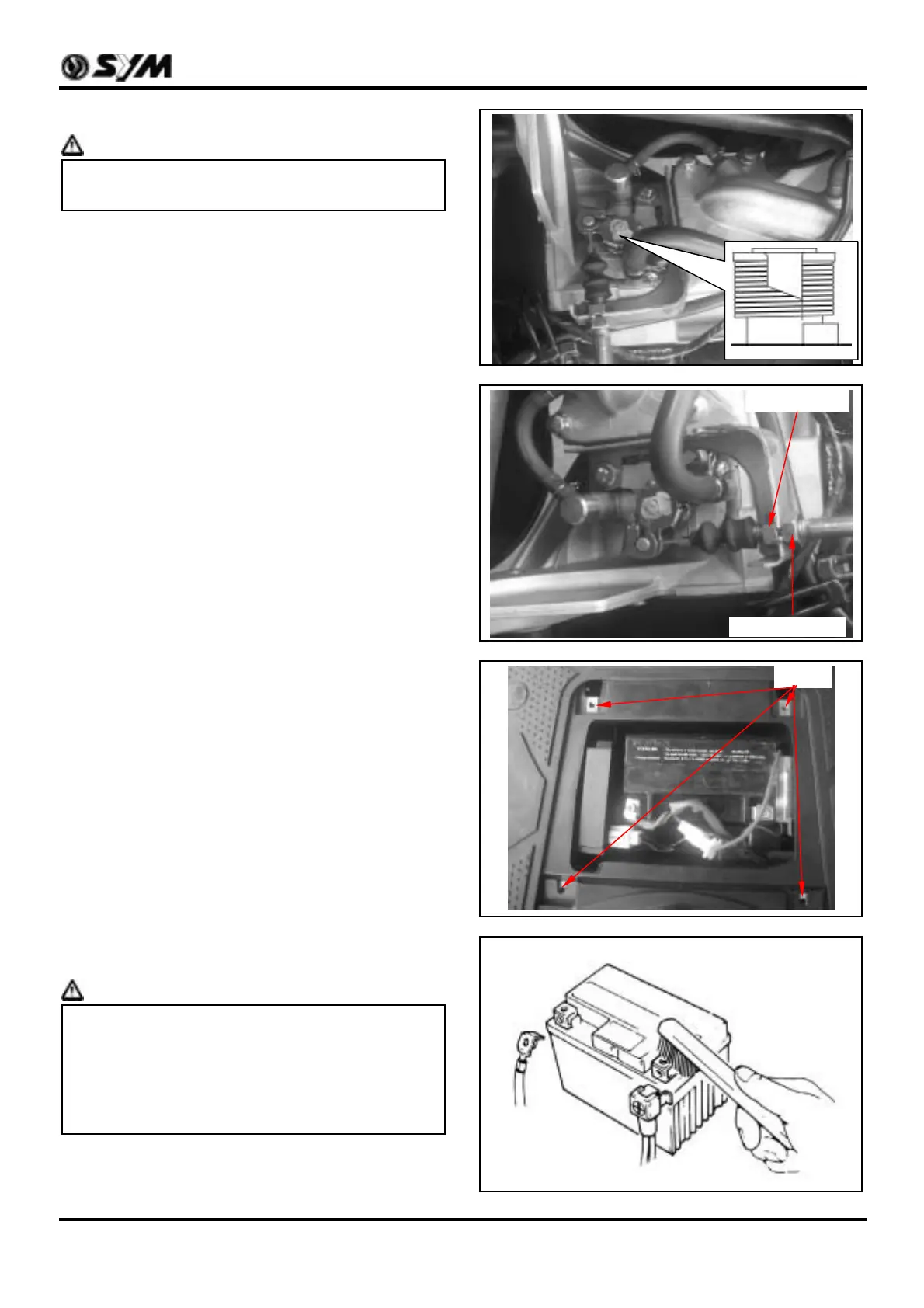

Oil Pump Control Cable
Caution
To adjust the oil pump control cable after
adjusted the throttle grip play.
Remove the luggage box.
Wide open the throttle valve, and check if the
calibration point aligns on the oil pump lever with
the mark of pump body.
Loosen the adjustment nut of the oil pump control
cable.
Turn the adjustment nut and align with the point,
then tighten the mounting nut.
Battery
Loosen four screws of battery cover and then
remove the cover.
Check if the battery terminals are loosened.
Remove the battery if its terminals are corroded
obviously.
Battery Removal
1. Remove the Negative (-) battery cable at first.
2. Then, remove the Positive (+) battery cable.
3. Remove the battery.
Clean the rust with steel brush.
Install the battery in reverse order of removal, and
apply with grease onto two terminals.
Caution
The electrolyte is contained sulfuric acid so be
careful not to let it touch to eyes, skin, or
clothes. If touched by accident, flush them with
clean water immediately. However, if the
electrolyte sprays to eyes, medical care should
be done quickly.
Mounting nut
Adjustment nut
4 screws
