14. Rear Wheel / Rear Cushion
14-3

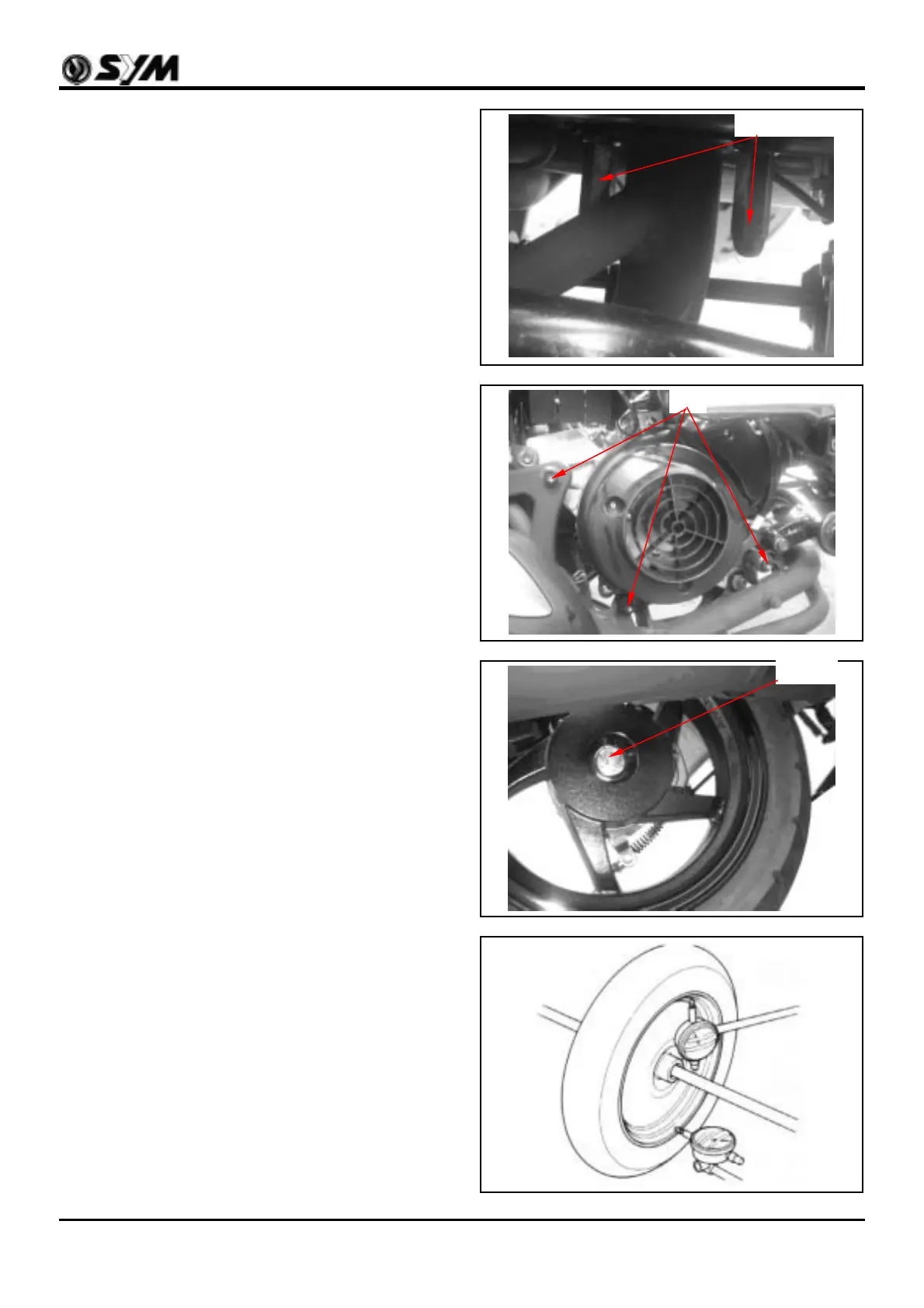

Rear Wheel
Remove
Remove exhaust pipe nut. (2 connection nuts)
Remove exhaust muffler bolt (3 bolts), then
remove the muffler.
Remove rear wheel shaft nut and then remove the
rear wheel.
Inspection
As the diagram shown, measure wheel rim
wobbling with a dial gauge.
Bolts
Connection nuts
Shaft nut
To Next Page
