4. Fuel System
4-4

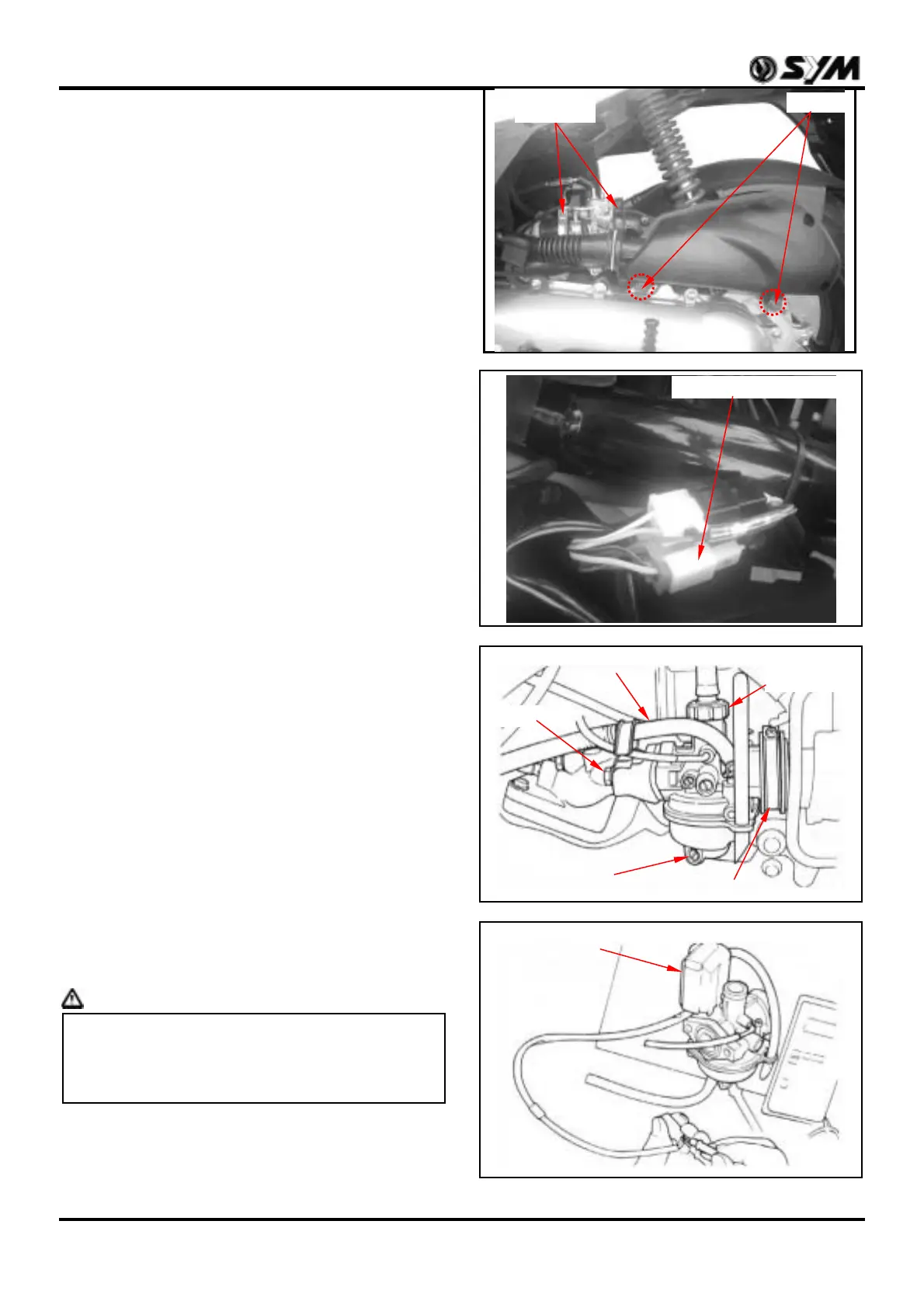

Carburetor Remove
Remove 2 bolts and then remove the air cleaner.
Loosen connection hose clamp.
Disconnect the auto by-starter coupler.
Loosen draining screw and then drain out fuel
inside the carburetor.
Loosen carburetor upper part and remove
carburetor upper part.
Remove fuel and oil hoses from carburetor.
Remove carburetor mounting bolt and carburetor.
Auto By-Starter
Inspection
Connect resistor meter to the terminals of auto
by-starter, and then measure its resistance.
If the resistance value exceeds specification too
much, it means that the PTC in the auto by-starter
is malfunction. Then, replace the auto by-starter.
Resistance value: Max. 10Ω (at cold engine)
Caution
If the resistance value exceeds the standard a
little bit, the auto by-starter may still in normal.
However, it is necessary to check other relative
components for damage.
Auto by-starter coupler
Carburetor
upper part
Connection hose clamp
Auto by-starter
2 bolts
Fuel hose
Draining screw
2 bolts
Clamps
