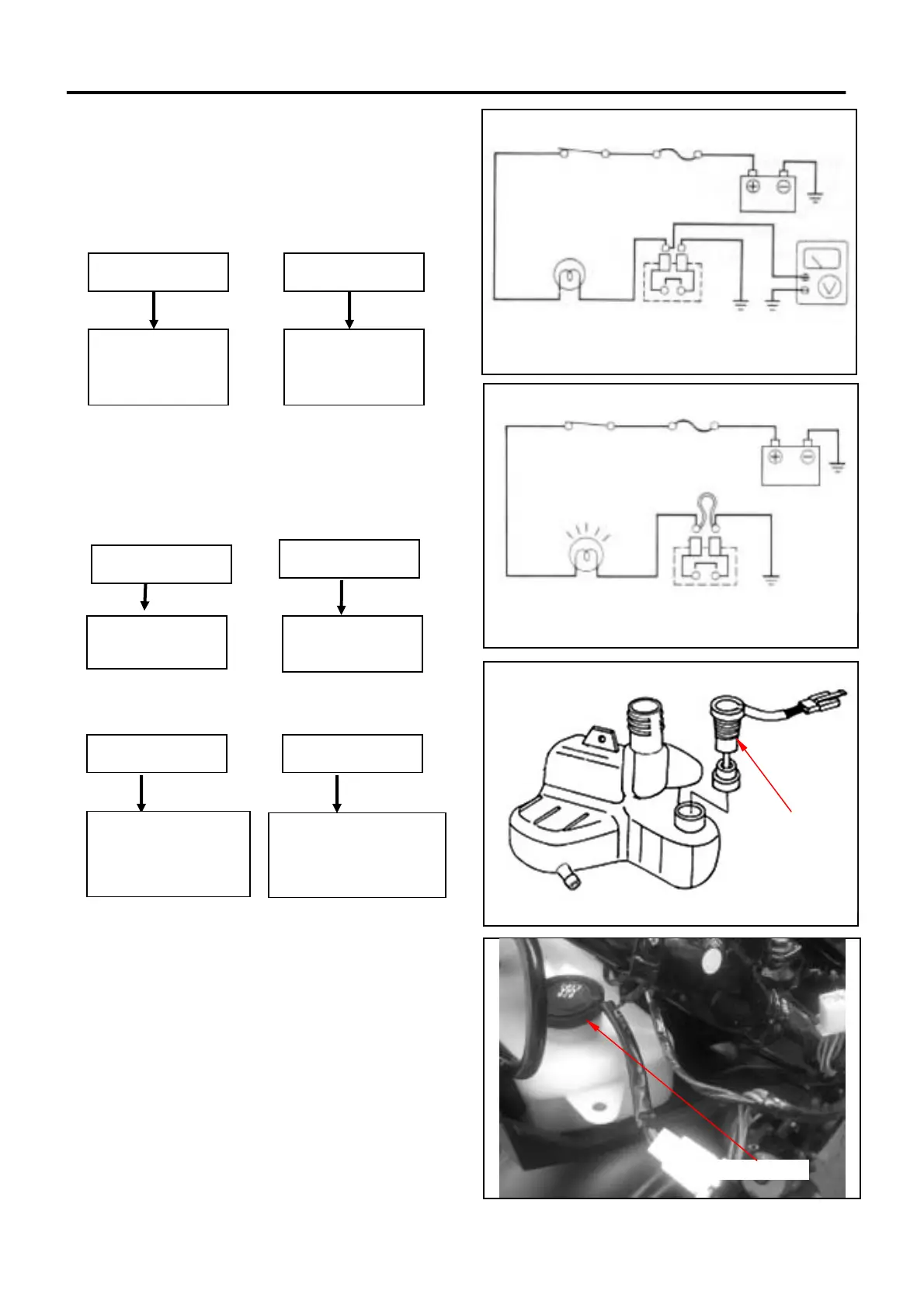

Oil Level Switch
Troubleshooting
y If the oil level in oil tank is in specified level, but
the oil level indicator still goes on.
1. Remove luggage box.
2. Disconnect oil level switch wire, and turn the
main switch to ON position.
y If there is no oil in oil tank or low oil level, but the
oil level indicator still not goes on.
3. Remove body cover.
4. Disconnect oil level switch wire and connect a
jump wire among coupler, and then turn the
main switch to ON position.
5. Disconnect oil level switch coupler, and check
voltage between wire and ground.
Removal/Installation
Remove luggage box.
Drain out oil from oil outlet tube.
Pull up oil level switch, and then remove
oil level switch from the oil tank.
Install the oil level switch in reverse order
of removal procedures.
Indicator light up Indicator not light up
Short-circuit between
indicator and oil level
switch.
Malfunction of oil
level switch.
Indicator not light up
Indicator light up
Poor wire
connection.
Malfunction of oil
level switch.
No voltage Voltage
y Open-circuit
between oil level
switch and indicator.
y Blown bulb.
y Malfunction of oil level
switch.
y Poor connection of oil
level switch.
Main switch
Oil level switch
Fuse
Indicator
Main switch
Oil level switch
Fuse
Indicator
Oil level switch
Oil level switch
