9. Final Driving Mechanism
9-4

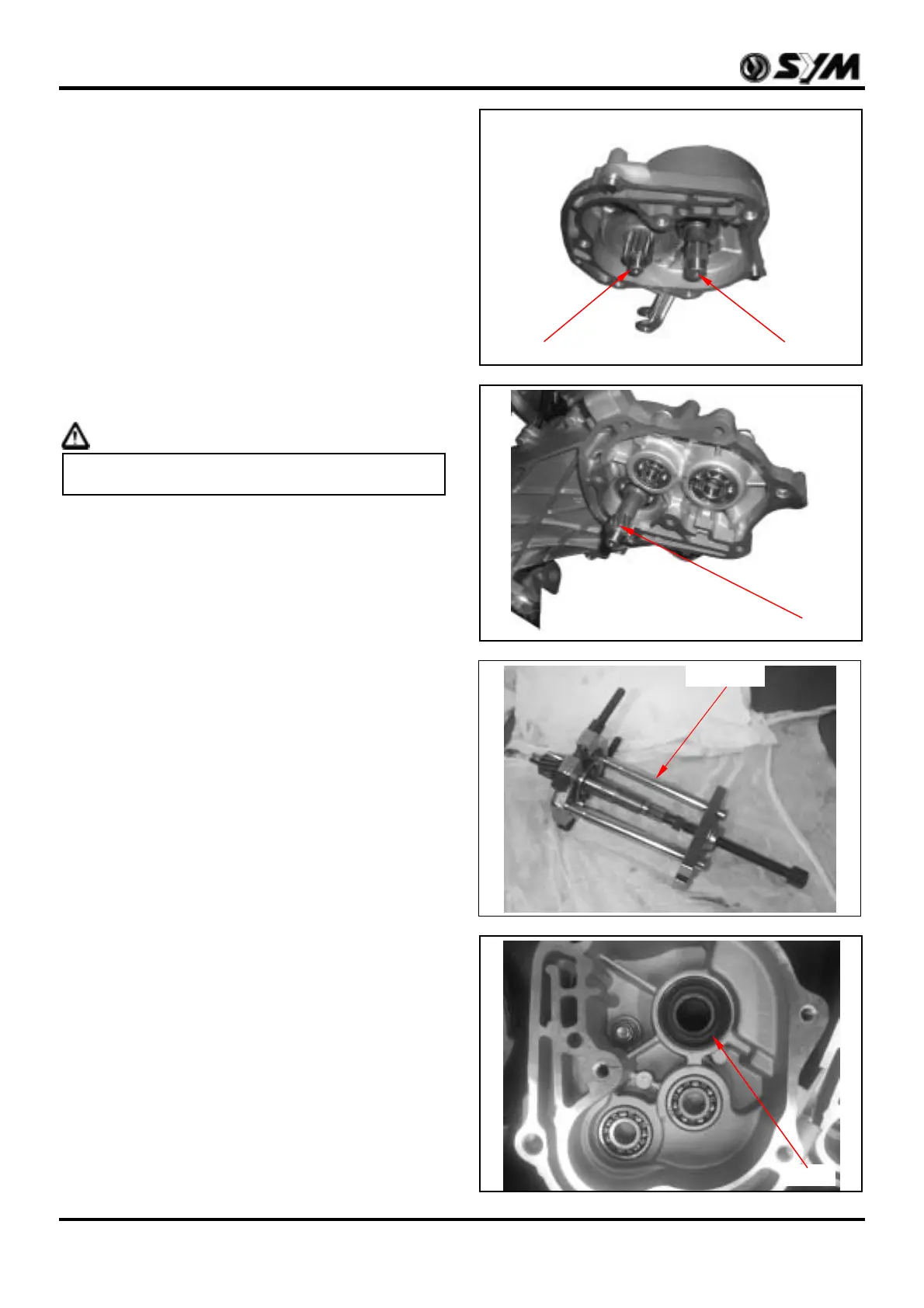

Remove final gear, final shaft and counter gear,
counter shaft.
Remove the drive shaft from left crankcase.
Caution
The bearing must be replaced when removing
the drive shaft.
Drive shaft is pulled out with it’s bearing, then
remove the bearing with bearing puller and shaft
protector.
Special tool:
Multi-functional bearing puller or Outer bearing
puller
Shaft protector
Remove drive shaft oil seal and bearing from left
crankcase.
Oil seal
Drive shaft
Counter shaft
Final shaft
Special tool
