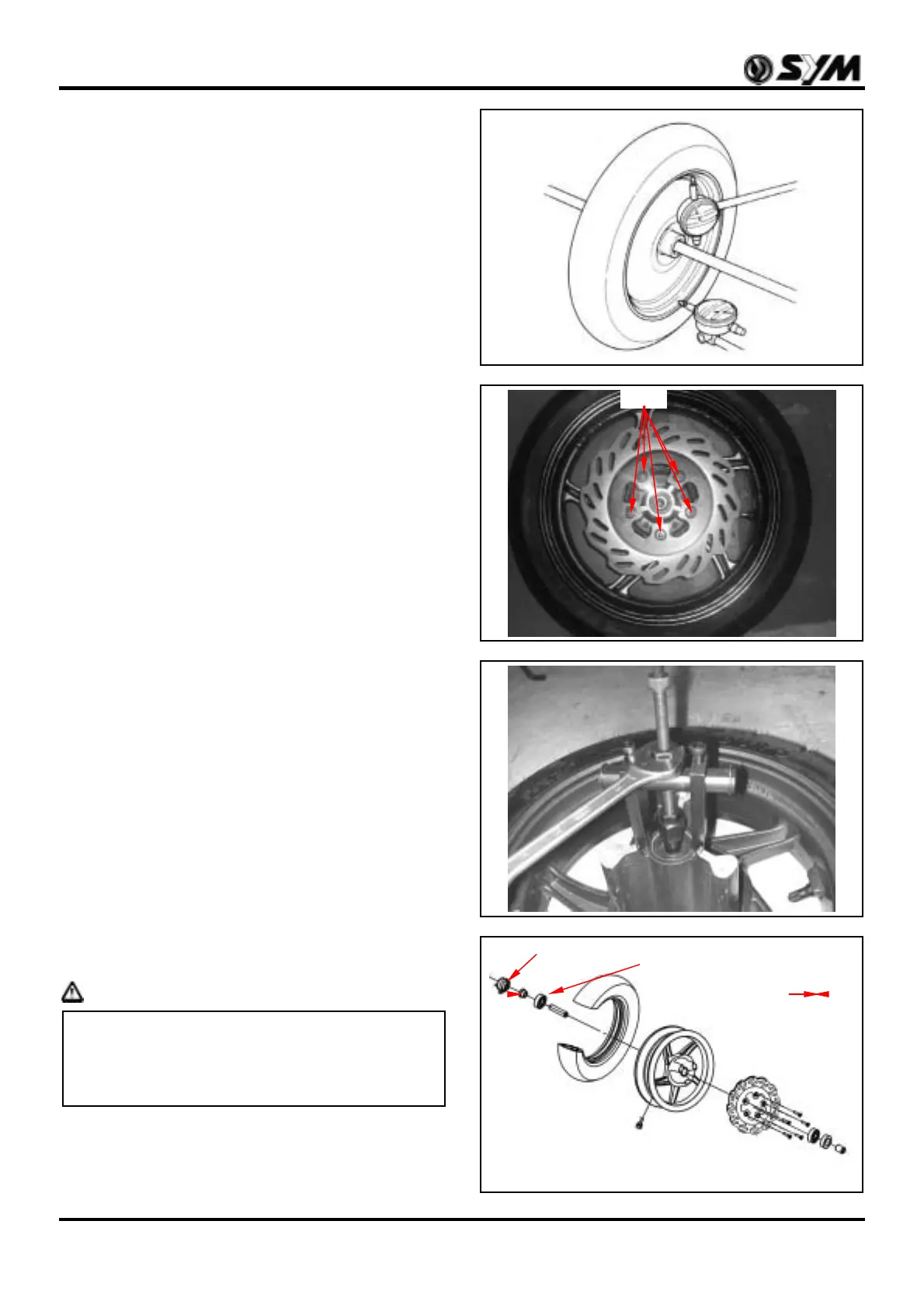

13. Steering / Front Wheel / Front Cushion
13-6
Place the wheel on to a rotation seat to check its
rim wobbling. Turn the wheel with hand and
measure its rim wobbling value with a dial gauge.
Bearings replacement
Remove 5 bolts and brake disc.
Remove left side dust seal, bearing and dist.
collar.
Special tools
Inner bearing puller
Installation
Fill out the block of bearing by grease.
Drive the left bearing, dust seal into wheel rim and
install the dist. collar.
Install the right bearing and dust seal.
Caution
y Carefully install the bearing in correct and
evenly.
y Bearing outer face should be faced up as
bearing installation.
5
Dust seal
Bearing
Dist. collar
Dust seal
Bearing
