8. "V" Type Belt Drive System/Kick-Starter
8-12

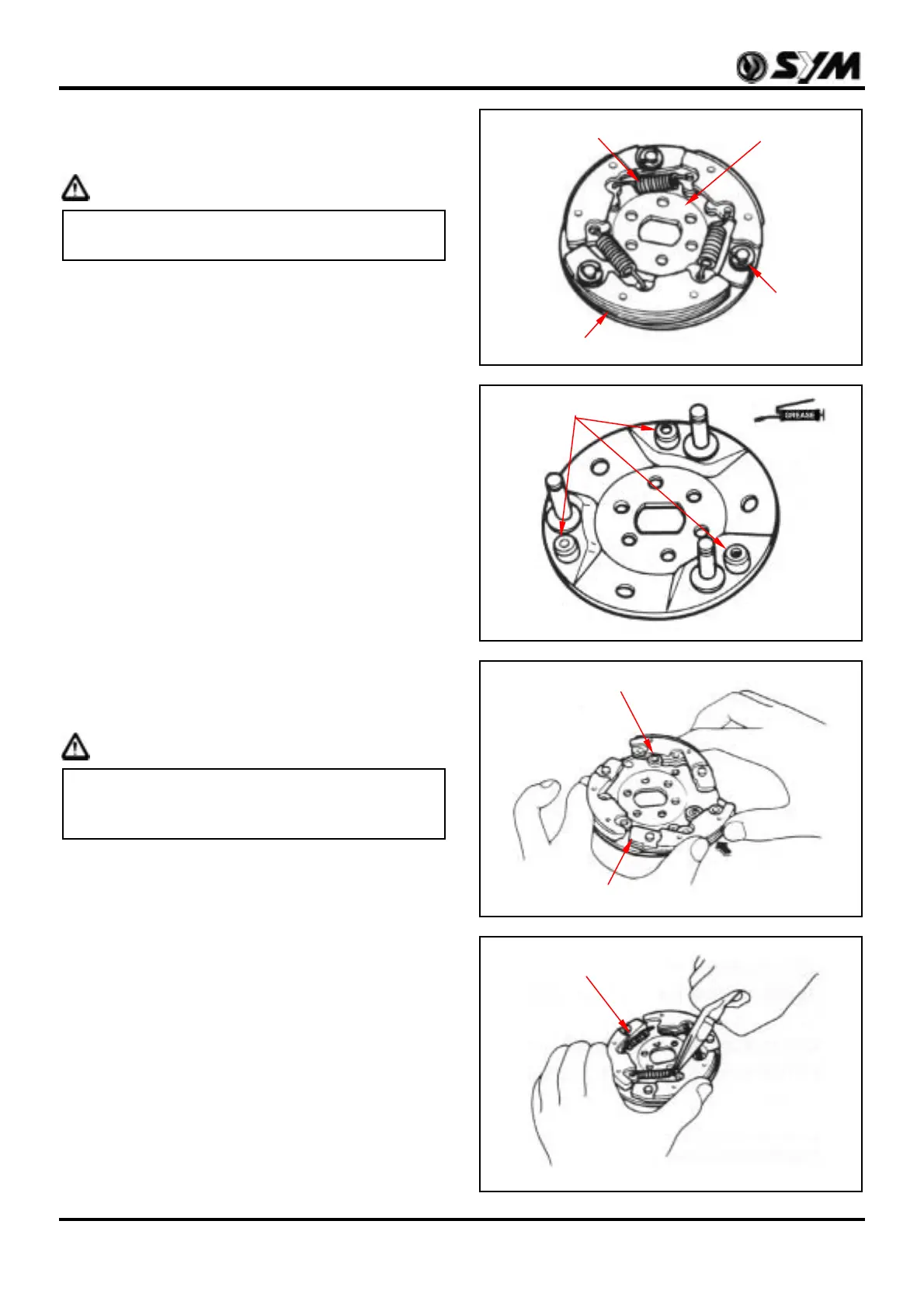

Clutch Block Replacement
Remove clip and washer, and then remove clutch
weight and spring from drive plate.
Caution
y Some of models are equipped with one
mounting plate instead of 3 snap clips.
Check if spring is damage or insufficient elasticity.
Check if shock absorption rubber is damage or
deformation. Replace it if necessary.
Apply with grease onto lock pins.
Install new clutch weight onto lock pin and then
push to specific location.
Apply with grease onto lock pins. But, the clutch
weight should not be greased. If so, replace it.
Caution
y Grease or lubricant will damage the clutch
weight and affect the weight’s connection
capacity.
Install the spring into groove with pliers.
Shock absorption
rubber
Drive plate
Snap clip
Spring
Shock absorption rubber
Clutch block
Clutch weight
Spring
