Sym JD05W User Manual

9. Final Driving Mechanism
9-8

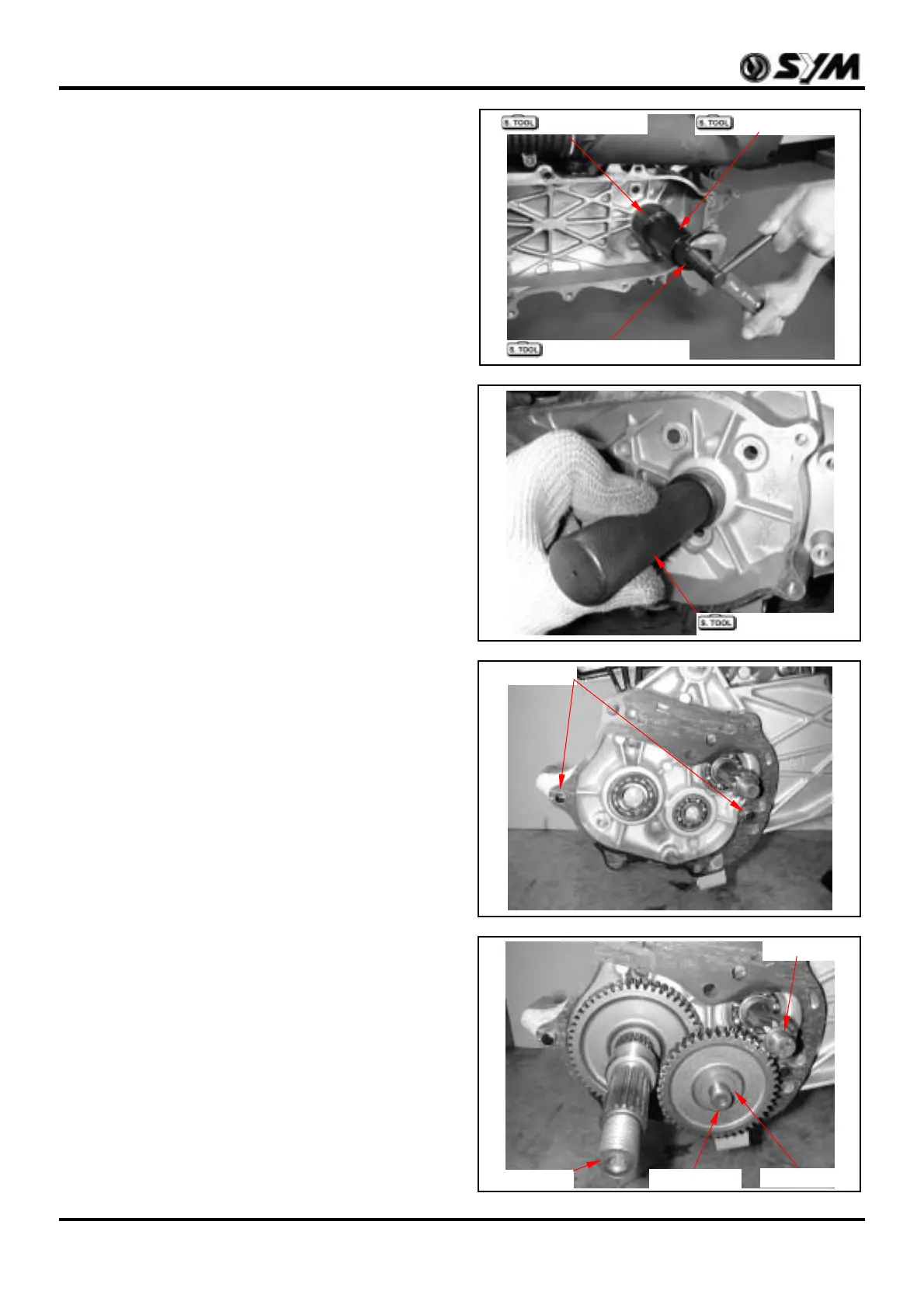

Re-Assembly of Final Driving
Mechanism
Install drive shaft.
With the special service tools to install drive shaft
by through the bearing.
Special tool:
R. Crank shaft puller
L. Crank shaft install bush
Extension bush
Extension bush
Apply with grease onto drive shaft oil seal.
Install the oil seal to left crankcase.
Special tool:
Drive shaft socket & oil seal driver (17x30x6)
Install 2 dowel pins & new gasket.
Install counter shaft, counter shaft side washer
and final shaft into the gearbox.
Install the mission cover and tighten the bolts (7
bolts).
Torque value: 2.4~3.0kgf-m
Install driven pulley / clutch outer / belt.
Install movable drive face, drive face and left
crankcase cover.
Install rear wheel.
Add gear oil.
Gear oil quantity: 105±5c.c.
R. Crank shaft puller
Shaft install bush Extension bush
Oil seal driver
Dowel pins
Final shaft
Counter shaft
Drive shaft
Side washer
