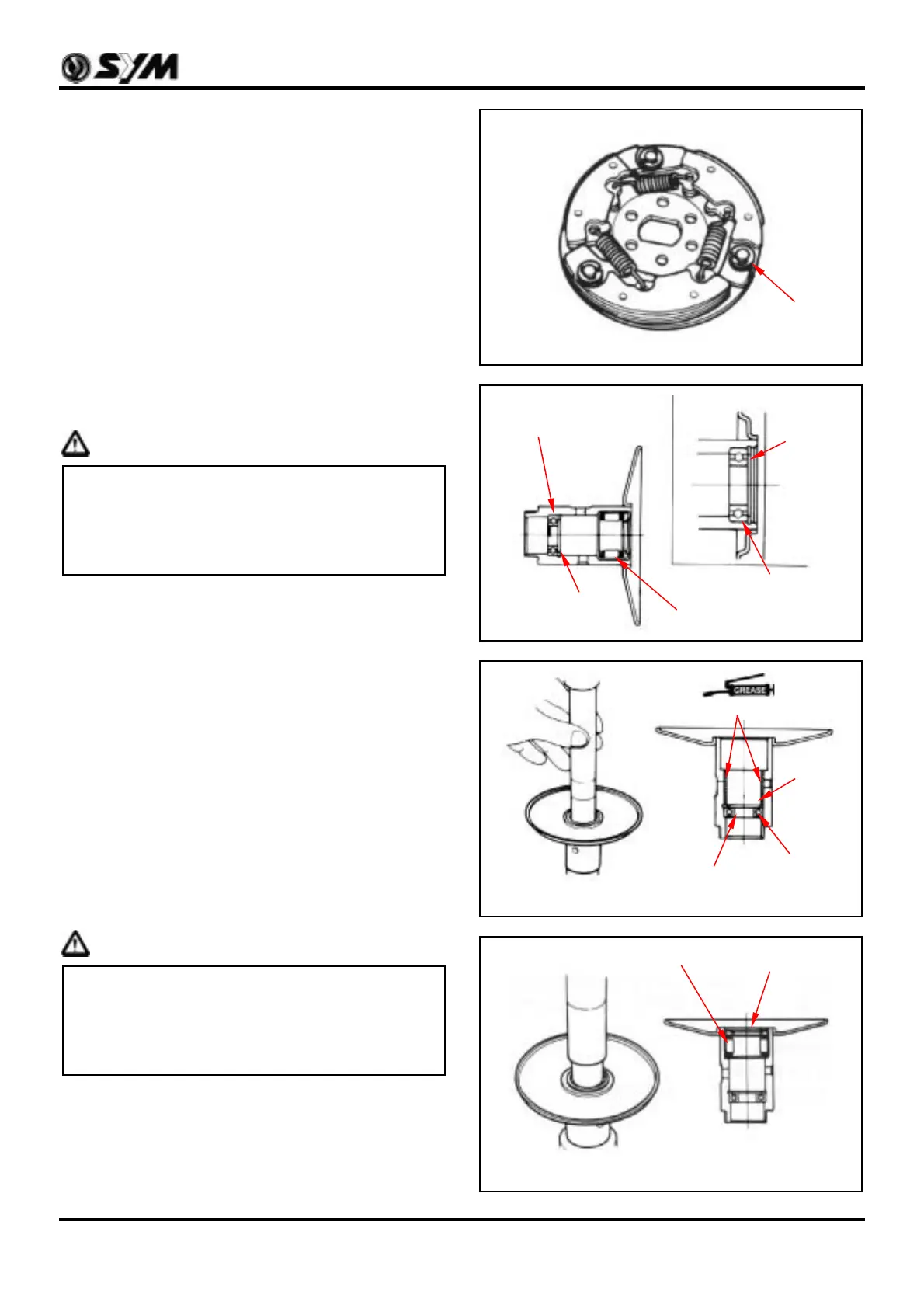

8. "V" Type Belt Drive System/Kick-Starter
8-13
Install snap clip and mounting plate onto lock pin.
Replacement of Driven Pulley Bearing
Remove inner bearing.
Caution
y If the inner bearing equipped with oil seal on
side in the driven pulley, then remove the oil
seal firstly.
y If the pulley equipped with ball bearing, it has
to remove snap clip and then the bearing.
Remove snap clip and then push bearing forward
to other side of inner bearing.
Place new bearing onto proper position and its
sealing end should be forwarded to outside.
Apply with specified grease.
Install new inner bearing.
Caution
y Its sealing end should be forwarded to
outside as bearing installation.
y Install needle bearing with hydraulic presser.
Install ball bearing by means of hydraulic
presser or driver.
Install snap clip into the groove of drive face.
Align oil seal lip with bearing, and then install the
new oil seal (if necessary).
Clip
Snap clip
Sealing end
Inner bearing
Sealing end
Specified grease
Snap ring
Outer bearing
Inner ball bearing
Outer bearing
Snap clip
Inner needle bearing
