12. Brake System
12-7

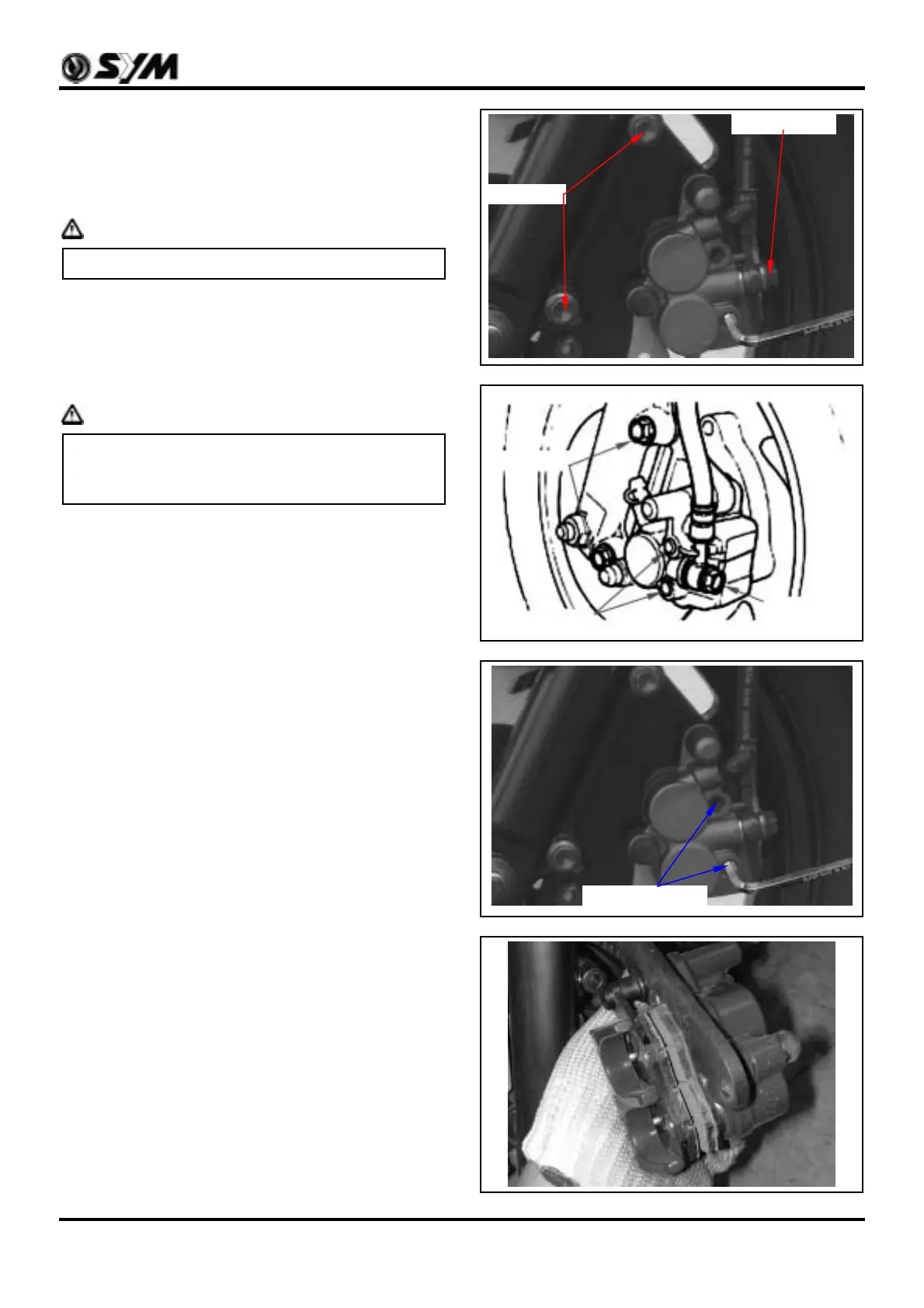

Disc Brake - Caliper
Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and finally remove the
brake hoses.
Caution
Do not spill brake fluid on painted surfaces.
Remove two caliper bolts and the caliper.
Installation
Install the brake caliper and tighten the attaching
bolts securely.
Torque value: 2.4~3.0kgf-m
Caution
y Use M8 x 35 mm flange bolt only.
y Long bolt will impair the operation of brake
disc.
Use two seal washers and hose bolts to lock the
hose and brake caliper in place.
Torque value: 3.3~3.7kgf-m
Refill up the brake fluid to the reservoir and make
necessary air bleeding.
Brake pad replacement
Front brake
Loosen the 2 pad guide pin bolts.
Remove brake caliper.
Remove the brake pad guide pin bolts, and then
remove brake pads.
Caliper bolt
Brake hose bolt
Lining guide bolts
Brake hose
bolt
Collar bolts
Caliper bolts
To Next Page
