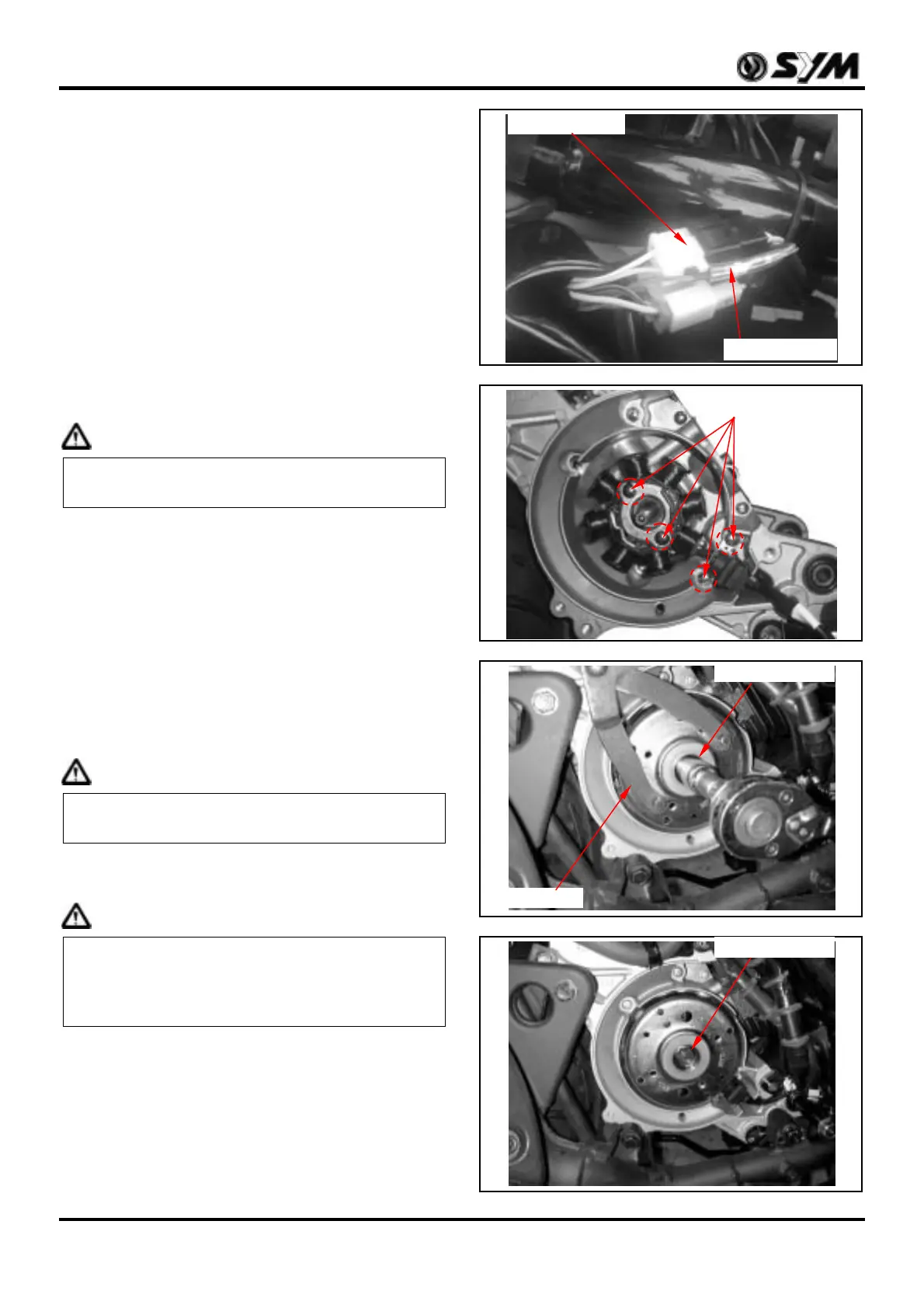

7. A.C. Generator
7-4
Disconnect generator wire coupler and pulse coil
coupler.
Remove the pulse coil and generator coil bolts (4
bolts), and then take out the generator assembly.
Caution
Care to be taken for not damaging the
generator coil.
Generator Installation
Install the generator assembly.
Connect the generator coupler.
Caution
Connect the generator wire harness properly
and then clip the harness with clipper.
Install the woodruff key onto the crankshaft
groove.
Caution
z Clean dirt and metal pieces inside the
flywheel.
z Make sure that there is no foreign material
inside the flywheel.
Install the flywheel.
Tighten the flywheel 10 mm nut.
Torque value: 3.5~4.5kgf-m
Install the removed parts in reverse order of
removal procedures.
Start engine and check its ignition timing.
Pulse coil coupler
Generator coupler
10mm flanged nut
Special tool
10mm flanged nut
4 bolts
