8. "V" Type Belt Drive System/Kick-Starter
8-3

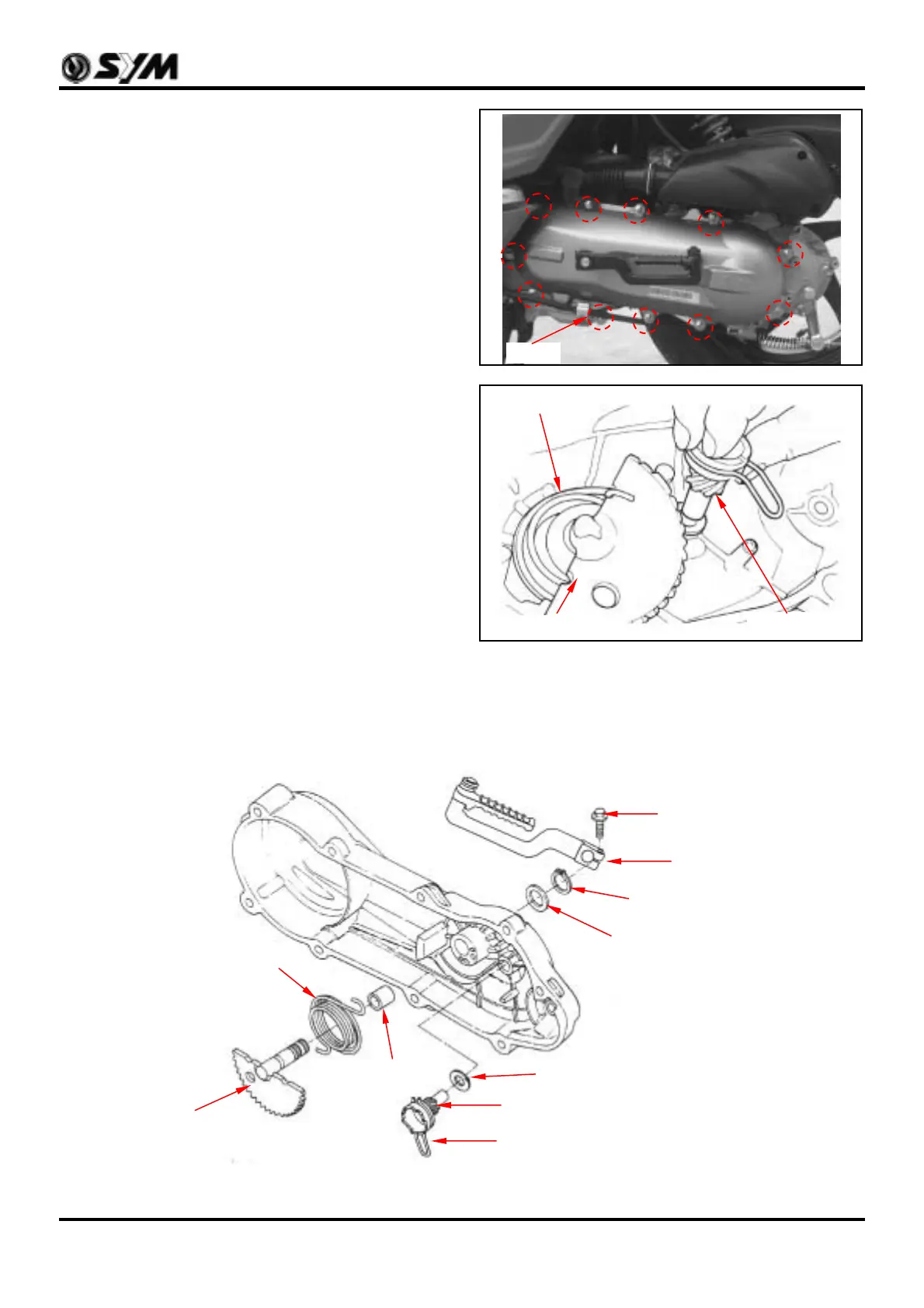

Left Crankcase Cover
Left crankcase cover removal
Remove rear left body side cover.
Remove air cleaner (2 bolts).
Remove kick-start arm (1 bolt).
Remove left crankcase cover (11 bolts).
Disassembly of Kick Starter
Remove snap clip and thrust washer from left
crankcase cover.
Install kick-start arm, rotate the lever slightly and
then remove driven gear and washer.
Remove the kick-starter arm, kick starter spindle,
and return spring as well as socket.
Inspection of kick Starter
Check if starter spindle, driven gear for wear or damage.
Driven gear
Thrust washer
Friction spring
Return spring
Starter spindle
Snap ring
Kick start arm
Bolt
Thrust washer
Bush
Starter spindle
Driven gear
Return spring
11 bolts
