5. Engine Removal
5-6

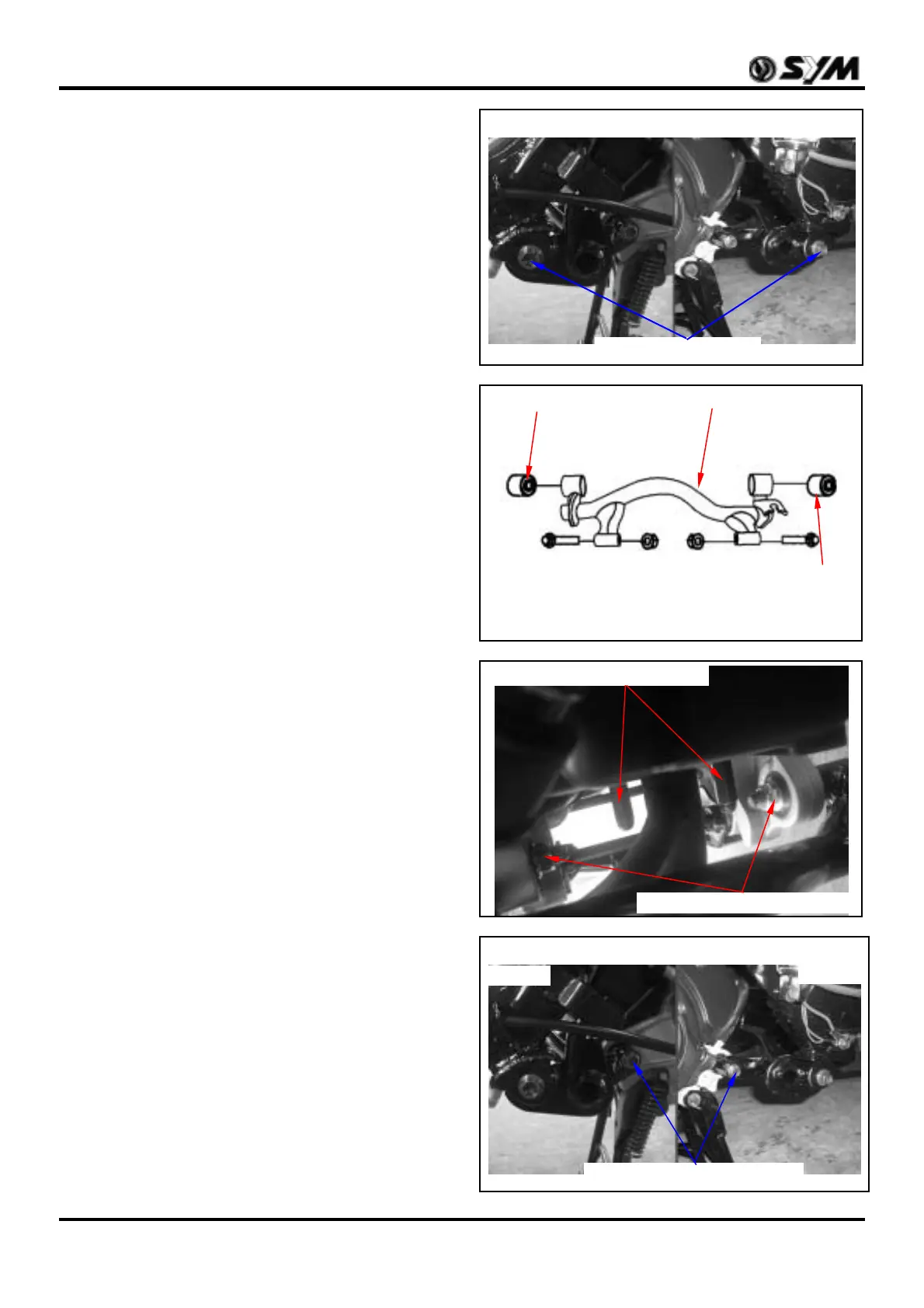

Engine Hanger Bracket
Removal
Remove the frame side right and left side bolts of
engine hanger bracket. (1 bolt on each side)
Disassembly
Remove the engine hanger bracket nut and bolt.
Disassembly engine hanger bracket A and engine
hanger bracket B.
Check if the engine hanger rubber bushes, hanger
bushes and collar for damage. If so, replace with
new ones.
Assembly
Install hanger bushes and collar into engine
hanger bracket B.
Install engine hanger bracket A and engine hanger
bracket B and tighten the bolts and nuts of engine
hanger bracket.
Torque Value: 4.5~5.5kgf-m
Engine installation
Install in the reverse order of removal procedures.
Tighten the engine mounting bolts and rear
cushion upper/lower bolts.
Torque value:
Engine hanger bolt 4.5~5.5kgf-m
Rear cushion upper mounting bolt 3.5~4.5kgf-m
Rear cushion lower mounting bolt 2.4~3.0kgf-m
Exhaust muffler connection nut 0.8~1.2kgf-m
Exhaust muffler mounting bolt 2.4~3.0kgf-m
Perform the following inspection and adjustment
after installation.
● Check if control cable is correct.
● Check if throttle valve cable is correct.
● Check if oil pump control cable is correct.
● Oil input and output of the oil pump.
● Adjust rear brake.
Engine hanger mounting nut
Each side one bolt
Engine hanger mounting bolt
Engine hanger bracket
Rubber bush
Rubber bush
Exhaust muffler connection nut
L. side
R. side
To Next Page
