2. Service Maintenance Information
2-8

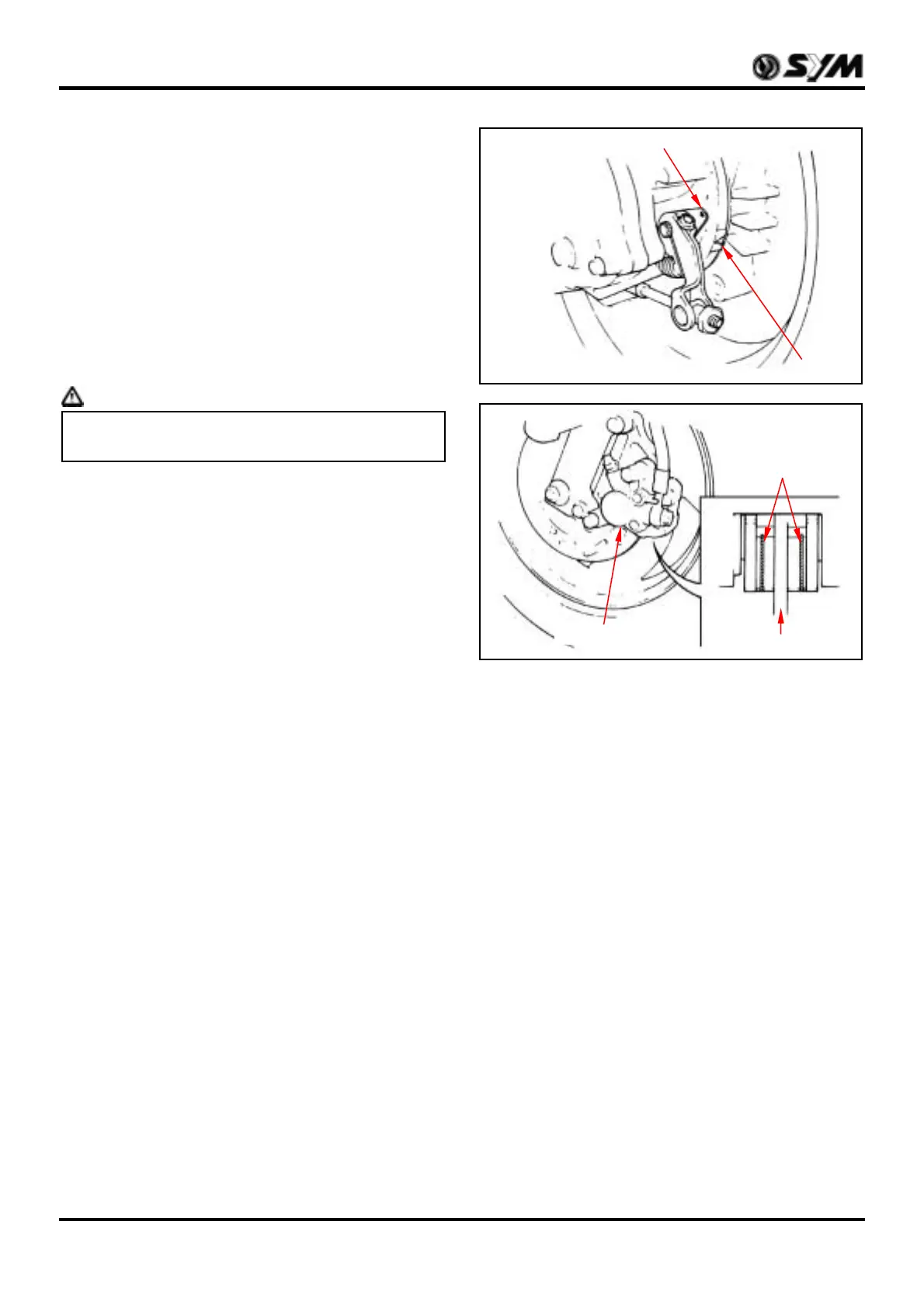

Brake Lining Wear: (Rear Drum Brake
Type)
Replace the brake lining if the wear limit mark “△”
on the brake arm aligning with the indicator of
brake drum.
Brake lining replacements refer to chapter 12.
Brake pad Wear: (Disc Brake Type)
The arrow mark on brake pad is the wear
limitation.
Replace the brake pad if the wear limit mark
closed to the edge of brake disc.
Caution
In order to maintain brake power balance, the
brake lining must be replaced with one set.
Brake pad replacements refer to chapter 12.
Brake pad
Brake caliper
Brake disc
Wear limit mark
Arrow
