8. "V" Type Belt Drive System/Kick-Starter
8-9

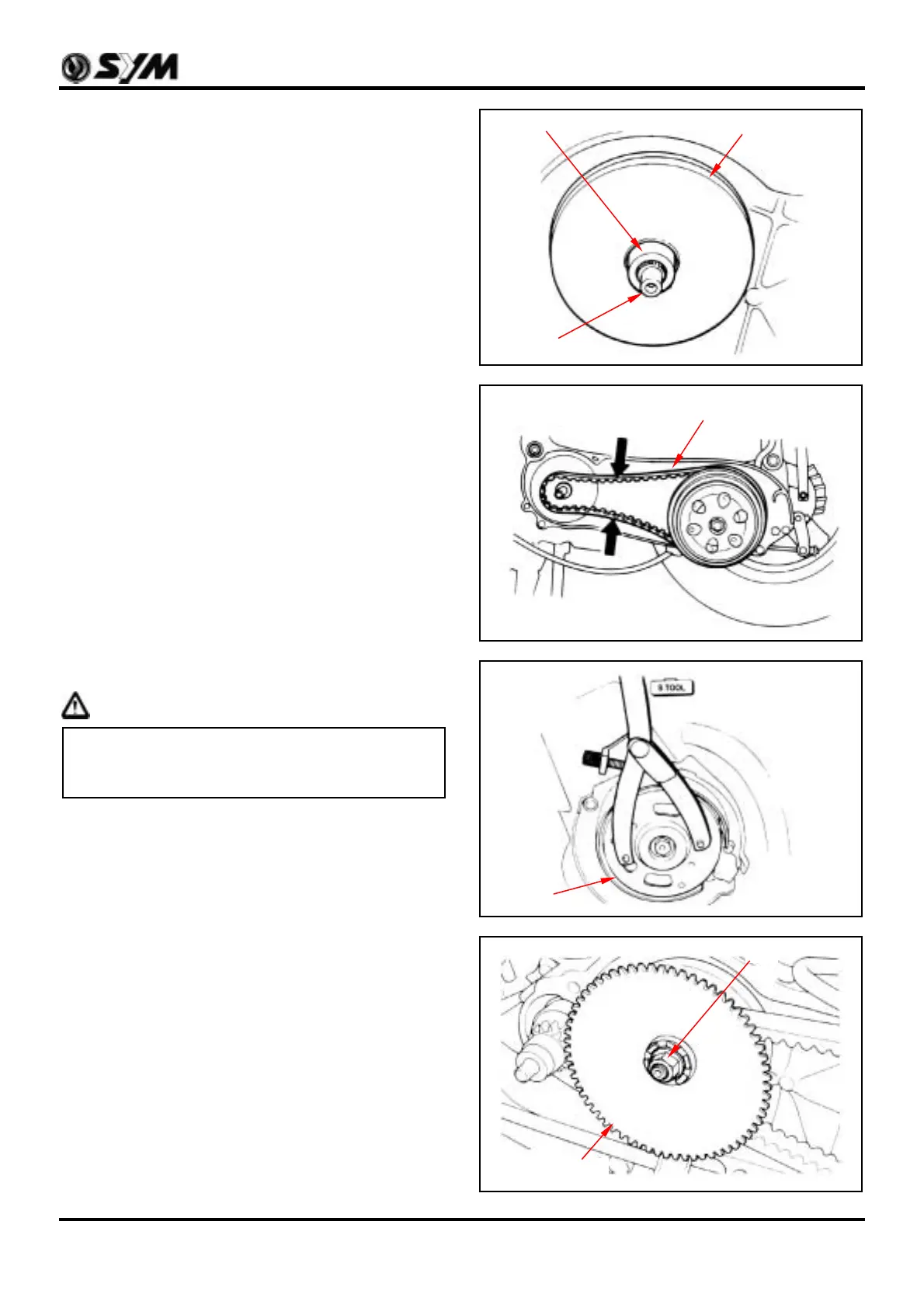

Install movable drive face assembly onto
crankshaft.
Drive Face Installation
Press drive belt into pulley groove, and then pull
the belt on to crankshaft.
Install drive face, washer and nut.
Caution
y Make sure that two sides of drive face have
to be free of grease. Clean it with cleaning
solvent.
Hold flywheel with universal holder.
Tighten nut to specified torque.
Torque value: 3.5~4.5kgf-m
Install left crankcase cover.
Drive belt
Universal holder
Nut
Drive face
Flywheel
Press down
Movable drive face
Crankshaft
Drive face boss
