2. Service Maintenance Information
2-6

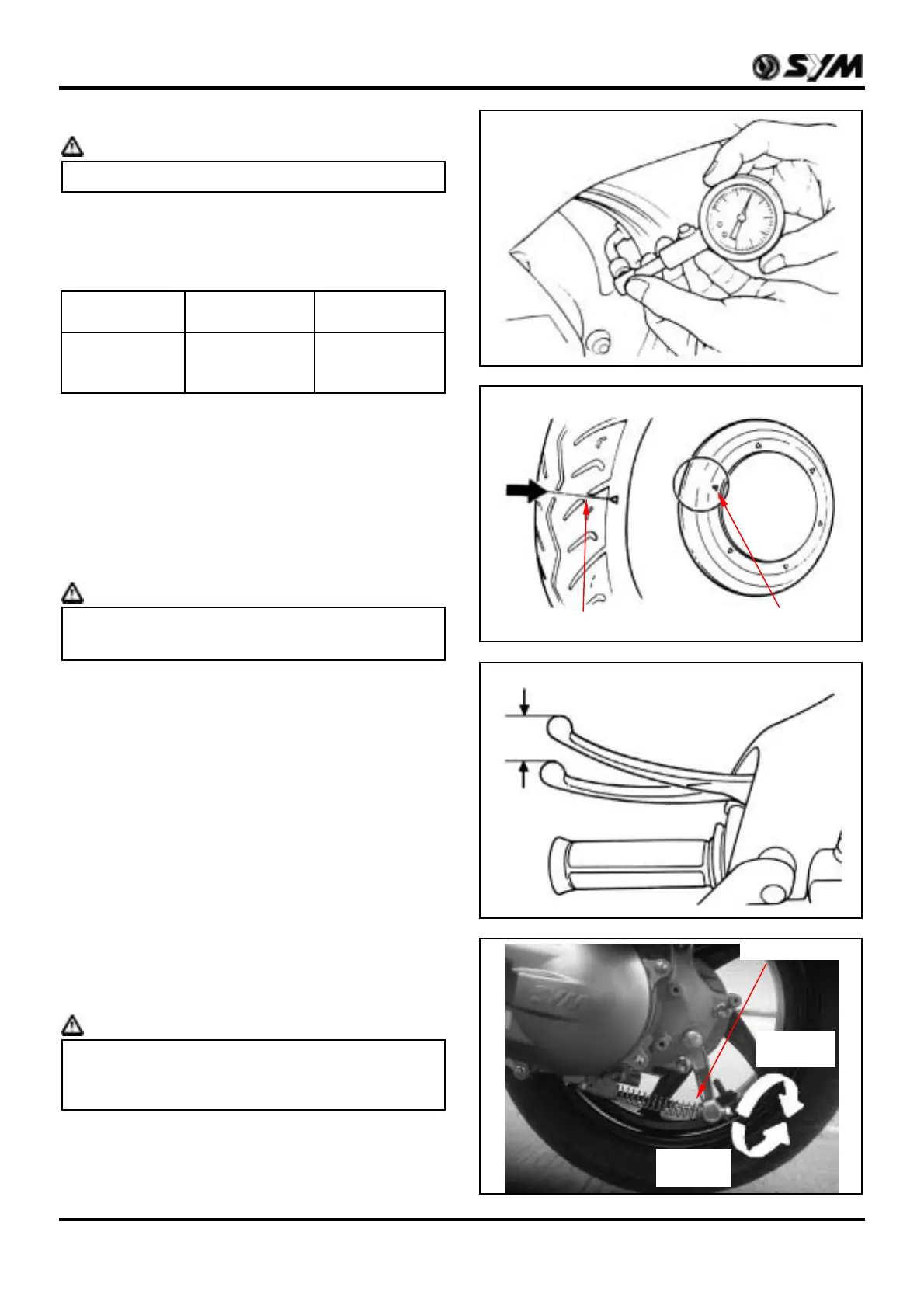

Tire
Caution
Tire pressure should be checked when cold.
Check tire for cracks, damage, nail, or other object
stuck in tread.
Recommended tire and tire pressure
Tire size
Front:
120 / 60 - 13
Rear:
130 / 70 - 12
Tire pressure
(cold) kg/cm
2
2.0
2.0 for one
person,2.25 for
two persons
Check if the tire tread and wall rubber for crack or
damage, and replace if necessary.
Check if foreign materials such as nail, metal
pieces, and stones stuck on tire.
The thread depth can be checked by visual
inspection or by a depth gauge.
z If the tread bend too much, replace the tire.
z If tire wear exceeds limitation, replace the tire,
and check it for un-even wear.
Caution
Wear indicator “△” is distributed on average
along the wall rubber for check.
Rear Drum Brake Free Play
Measure the free play of the rear brake lever at
the end of the lever.
Free play: 10-20 mm (3/8-3/4 in)
Adjust the free play by turning the front brake
adjustment nut if necessary.
Brake Confirmation
Caution
After brake adjustment, it has to check the
brake operation to make sure the front and rear
wheel can be braked.
Wear indicator
△ Mark
10~20mm
(3/8~3/4in)
Adjustment nut
Increasing
free play
Decreasing
free play
To Next Page
