DISASSEMBLY AND ASSEMBLY
DRIVE SYSTEM
11
4
DRIVE SYSTEM
4B0AX00

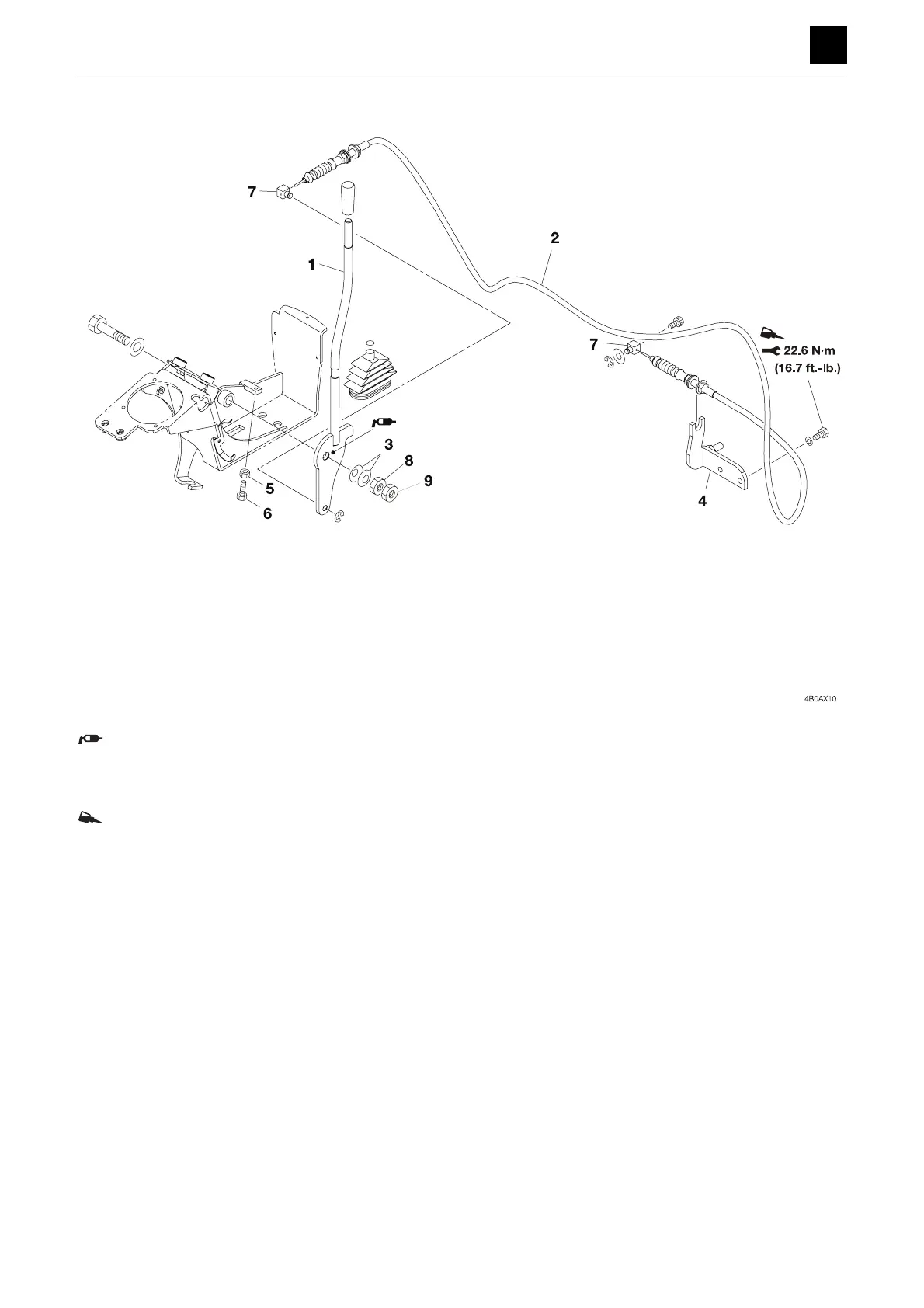

Throttle lever
Apply molybdenum disulfide grease to both surfac-
es of the lever.
•
Line up the conical washers (3) so that the indented
sides are all on the same side.
ThreeBond #1324
1.
Lever
6.
Stopper
2.
Wire
7.
Wire lock pin
3.
Conical washer
8.
Lock nut
4.
Bracket
9.
Nut
5.
Lock nut
101
103
