Takeuchi TB215R Workshop Manual

SERVICE DATA
PERFORMANCE CRITERIA
6
2
PERFORMANCE CRITERIA 2D0AX002

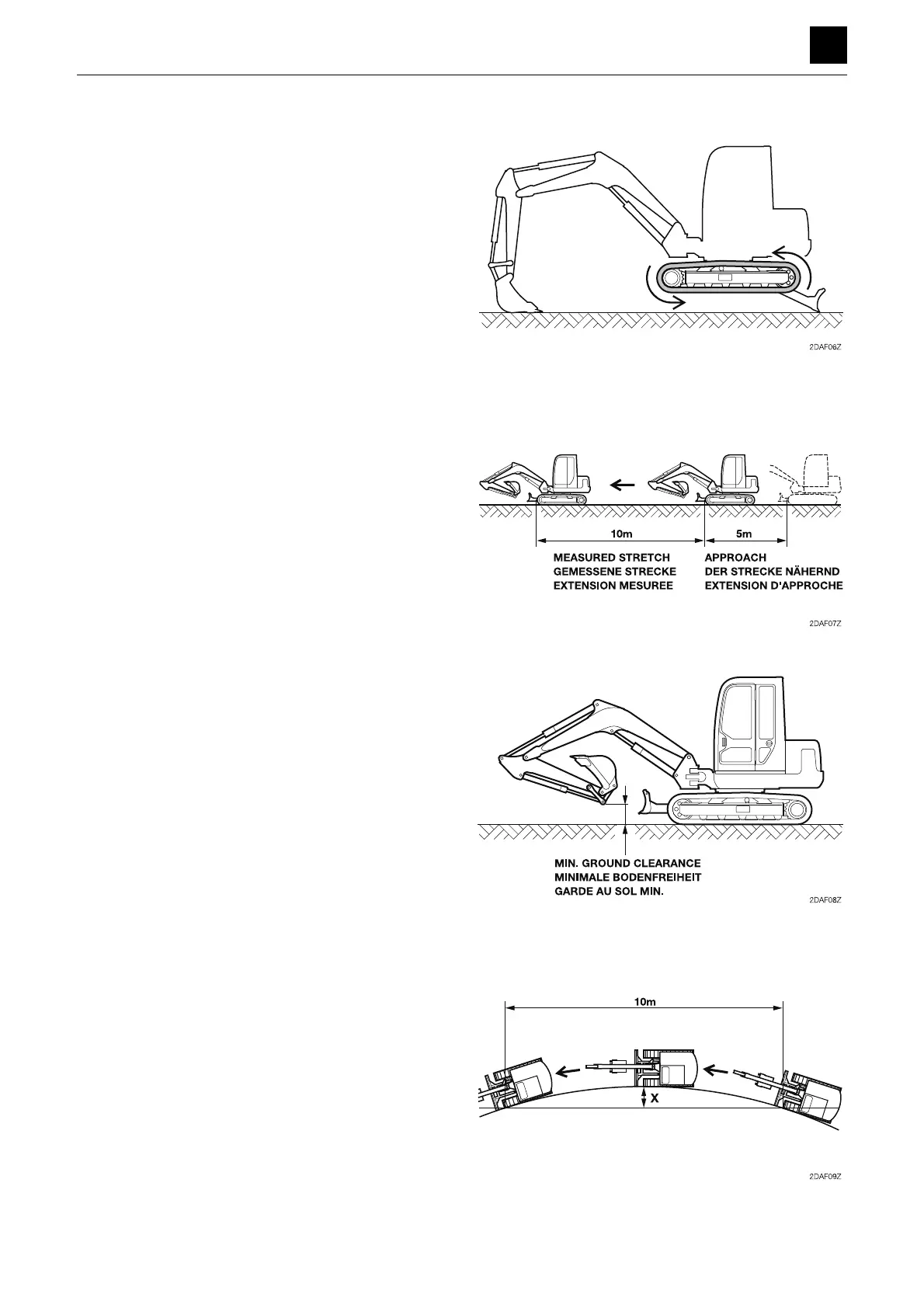

Travel speed (5 revs.)
• Engine: Maximum R.P.M.
• Hydraulic oil temp.: 50°C to 60°C (122°F to 140°F)
• Measuring attitude: Excavator body to be raised using
both the hoe attachment and the dozer blade
• Set crawler belts in motion. Starting after one full revo-
lution, measure the time required for five revolutions.
(To measure speed after it has stabilized.)
Travel speed (10 m)
• Engine: Maximum R.P.M.
• Hydraulic oil temp.: 50°C to 60°C (122°F to 140°F)
• Measuring attitude: Traveling
• Drive 5 meters (16.4 ft.) first and then start measuring
the time required for the machine to travel another 10
meters (32.8 ft.). Do this on level ground.
 Traveling attitude
With the bucket in a no-load state and the boom raised,
fully extend the arm and bucket cylinders and adjust the
hoe attachment so that its lowest part is even with the ex-
cavator’s minimum ground clearance level. The dozer
blade should not be touching the ground.
Straight-ahead traveling
• Engine: Maximum R.P.M.
• Hydraulic oil temp.: 50°C to 60°C (122°F to 140°F)
• Measuring attitude: Traveling
• Starting from an approach of 5 meters (16.4 ft.), drive
the excavator in a turn for 10 meters (32.8 ft.), and then
measure the distance, X (from the 5-m point). Do this
on level ground.
