DISASSEMBLY AND ASSEMBLY
SERVICE STANDARDS
1
4

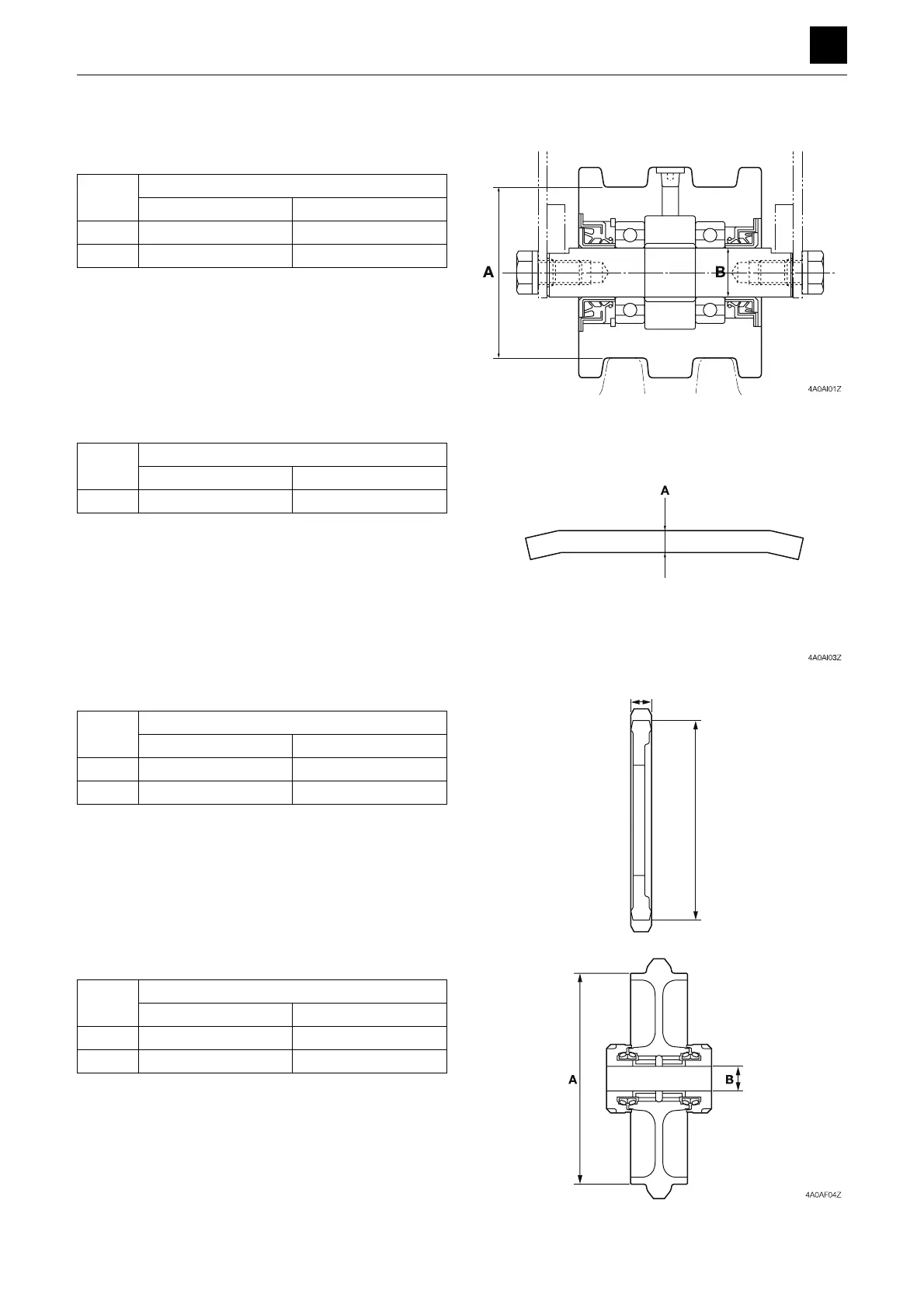

SERVICE STANDARDS
4A0AX00
SERVICE STANDARDS
Track roller
Shoe slider
Sprocket
Idler
Code
Criteria, mm (in.)
Standard dimension
Allowable value
A
75 (3.0)
69 (2.7)
B
25 (1.0)
–
Code
Criteria, mm (in.)
Standard dimension
Allowable value
A
9 (0.4)
4.5 (0.2)
Code
Criteria, mm (in.)
Standard dimension
Allowable value
A
251.6 (9.9)
241.6 (9.5)
B
24 (0.9)
–
Code
Criteria, mm (in.)
Standard dimension
Allowable value
A
232 (9.1)
226 (8.9)
B
30 (1.2)
–
4A0AF03Z
B
A
88
90
