Takeuchi TB215R Workshop Manual

SERVICE DATA
PERFORMANCE CRITERIA
3
2

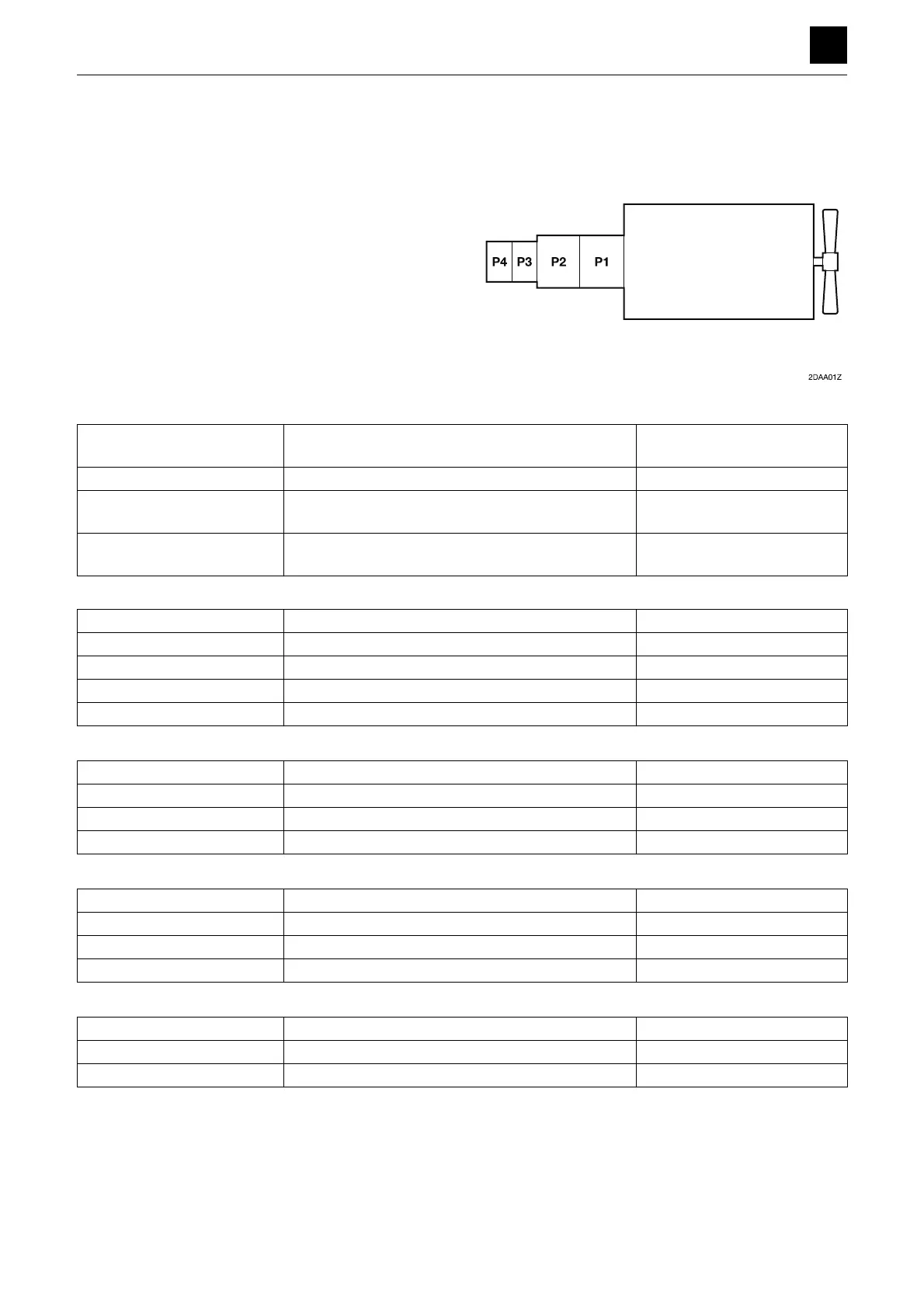

PERFORMANCE CRITERIA 2D0AX002
Hydraulic pump assignment table
Pump P1
Pump P2
Pump P3
Pump P4
P1
Boom swing, 1st auxiliary line piping, right travel,
boom, bucket
16.8 L/min. (4.4 US gal/min.)
P2 Boom swing, 1st auxiliary line piping, arm, left travel 16.8 L/min. (4.4 US gal/min.)
P3
Slew, blade, 2nd auxiliary line piping, 3rd auxiliary
line piping (right)
10.8 L/min. (2.9 US gal/min.)
P4
Pilot pressure, travel speed switching, 3rd auxiliary
line piping (left)
6.5 L/min. (1.7 US gal/min.)
Boom swing Pressure: 21.0 MPa (3045 PSI) Test port A1
1st auxiliary line piping Pressure: 21.0 MPa (3045 PSI) Test port A1
Right travel Pressure: 21.0 MPa (3045 PSI) Test port A1
Boom Pressure: 21.0 MPa (3045 PSI) Test port A1
Bucket Pressure: 21.0 MPa (3045 PSI) Test port A1
Boom swing Pressure: 21.0 MPa (3045 PSI) Test port A2
1st auxiliary line piping Pressure: 21.0 MPa (3045 PSI) Test port A2
Arm Pressure: 21.0 MPa (3045 PSI) Test port A2
Left travel Pressure: 21.0 MPa (3045 PSI) Test port A2
Slew Pressure: 13.4 MPa (1943 PSI) Test port A3
Dozer blade Pressure: 20.0 MPa (2900 PSI) Test port A3
2nd auxiliary line piping Pressure: 20.0 MPa (2900 PSI) Test port A3
3rd auxiliary line piping (right) Pressure: 20.0 MPa (2900 PSI) Test port A3
Pilot pressure Pressure: 3.4 MPa (493 PSI) Test port P4
3rd auxiliary line piping (left) Pressure: 3.4 MPa (493 PSI) Test port P4
Travel speed switching Pressure: 3.4 MPa (493 PSI) Test port P4
